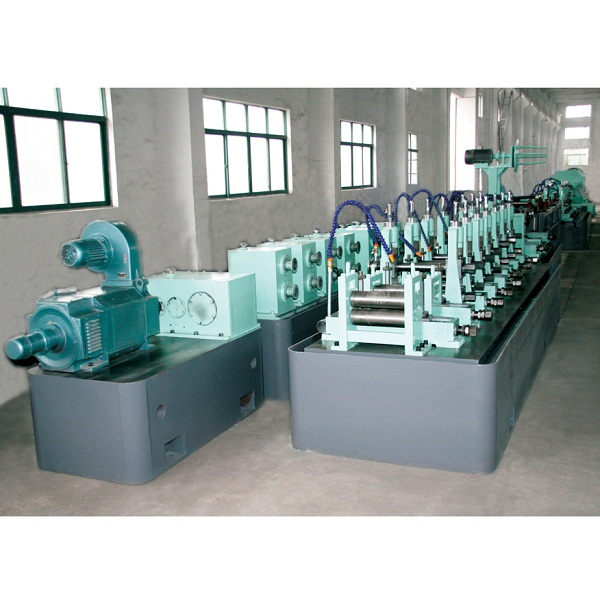

YJ219 Tube Forming and Sizing Machine is the main equipment in high frequency induction welded pipe production line and tube mill line. It can continuously roll certain steel strips into tube strip, and weld it with high frequency induction heating. After cooling, sizing, and straightening, you can get the steel pipes and tubes of the required specifications. The forming and sizing equipment can produce round, square, rectangular and other shaped tubes and pipes with corresponding roll sets, according to your specific needs. Our tube forming and sizing machines are of high precision and superior quality, and we've won ISO 9001 and CE certificates.
Main Technical Specifications
1. Raw Material (Steel Strip) Condition
Material: Carbon Steel (Hot Rolling or Cold Rolling)
2. Products
Round, square, rectangular, and other shaped tubes with the same specifications
Tube/Pipe Diameter: φ 89 - φ 219mm
Wall Thickness: 3.0 - 8.0mm
3. Equipment Requirements
Equipment Form: Integral type
Lay Out: According to customer's needs
Producing Speed: 20 - 45m/min
Main Power: 220 × 2 KW
High Frequency Welder Power: 400 KW
Technological Process
Coil Loading -- Uncoiling -- Shearing and Butt Welding -- Accumulator Spiral (guiding, storing and feeding steel materials) -- Leveling -- Tube Forming -- High Frequency Welding -- Scarping -- Cooling -- Accuracy Sizing -- Straightening
|
Machine Model |
Diameter
(mm) |
Thickness (mm) |
Production Speed (m/min) |
Main Power (KW) |
HF Welder Power (KW) |
|
YJ-16-FS |
φ 8 – φ 16 |
0.3 – 1.0 |
80 – 100 |
22 |
60 |
|
YJ-20-FS |
φ 10 – φ 26 |
0.5 – 1.5 |
80 – 100 |
37 |
60 |
|
YJ-32-FS |
φ 14 – φ 38 |
0.6 – 1.8 |
80 – 100 |
75 |
100 |
|
YJ-50-FS |
φ 20 – φ 63.5 |
0.8 – 3.0 |
70 – 80 |
132 |
200 |
|
YJ-60-FS |
φ 32 – φ 70 |
1.0 – 3.0 |
70 – 80 |
55 × 2 |
250 |
|
YJ-76-FS |
φ 40 – φ 80 |
1.0 – 3.5 |
60 – 70 |
132 × 2 |
250 |
|
YJ-89-FS |
φ 50 – φ 90 |
1.5 – 4.0 |
50 – 60 |
90 × 2 |
250 |
|
YJ-114-FS |
φ 60 – φ 120 |
2.0 – 5.0 |
40 – 60 |
110 × 2 |
300 |
|
YJ-125-FS |
φ 60 – φ 130 |
1.5 – 5.5 |
20 – 60 |
220 × 2 |
300 |
|
YJ-165-FS |
φ 80 – φ 165 |
2.0 – 6.0 |
20 – 50 |
220 × 2 |
400 |
|
YJ-219-FS |
φ 89 – φ 219 |
3.0 – 8.0 |
20 – 45 |
220 × 2 |
400 |
|
Equipment Composition |
Feeding equipment, tube forming machine, welding machine, and tube sizing machine. |
|
Remarks |
For more specifications, please feel free to contact us via E-mail, MSN, or Skype. We can customize steel pipe making machine according to specifications and requirements given by customers. |
