1.Main structure and function
1. host:
1.1 the fuselage
The fuselage frame structure, welding using co2 gas shielded welding, eliminating internal stress after welding.Main components of the use of advanced equipment for processing, to guarantee the precision of the machine.
Equipment main structure exterior level off, without obvious phenomenon of concave and convex,
weld grinding smooth, no welding slag and scar.The whole machine all adopt the computer
optimization design, structure design to make it has good strength and stiffness, both beautiful
appearance.
1.2 the main cylinder
Six cylinder structure is used in the main oil cylinder, oil cylinder cylinder body is made of high quality
carbon steel forgings, oil cylinder inner surface after honing, rolling process, make the hydraulic oil
cylinder has sufficient strength and rigidity.Plunger rod is made of high quality carbon steel forgings,
the intermediate frequency quenching process on the surface, the hardness between HRC42 ~ 50.
Cylinder seal is made of high quality sealing components, to ensure reliable sealing performance, long service life.
2,.the hydraulic control system:
Hydraulic system is mainly composed of pump, valve block, charging valve filter, cooling system,
piping, etc, by means of electric control system to complete the action of hydraulic press control.
2.1 YCY series is used in the hydraulic system is the main oil pump axial plunger constant power
variable pump, pilot valve with shandong jining series valve, can greatly improve the pressure of motor for the stability and reliability.
2.2 the hydraulic control system adopts two-way cartridge valve integrated system.The system has compact structure, fast response, small inside
leaking, reliable, large flow, strong ability to resist pollution, convenient in operation and maintenance,
long service life, etc.
2.3 often closed is used in the hydraulic system of charging circuit of charging valve, slider down
quickly by charging valve oil absorption, falling fast speed by the cylinder in the inferior vena oil plug
valve control the adjustment.
2.4 cooling filter system
Hydraulic system is equipped with independent oil water cooling filter device, to ensure the working
temperature of the oil and cleanliness.
2.5 the fuel tank
Oil pump of hydraulic control system, electrical and hydraulic control valves on the tank crew plane
ordered arrangement.
2.6 line
Hydraulic piping system reliable sealing, high pressure pipeline connection using high pressure flange and high-quality sealing element, which can effectively prevent leakage.
3.electric control system
Electrical control system is divided into dynamic system and control system of two parts, power parts
including the control power supply, each motor start-stop and protection switch, the power supply using three phase four wire system, AC380V, 50 hz.
Control part includes electrical box, box operation and mobile station button, electric box on the ground, operation box is placed on the machine right front pillar, to complete all operation of the machine's
control, operation box can complete all operation of the machine's operation and operating box is
equipped with hydraulic press action action buttons, each part function switch, the motor start-stop button.
3.1 in the control system can yield to count.
4.safety device
4.1 compressor set the stop button, when an exception occurs according to the "press" stop "button,
including motor to stop running. Stop button and press the corners of the post.
4.2 hands action buttons: 0.5 ~ 1 s hands downlink synchronization time.
4.3 press is equipped with a buzzer, the slider drop hints ringtones, prompt operator attention.
4.4 press install one set of photoelectric protection device).
2.The equipment usage

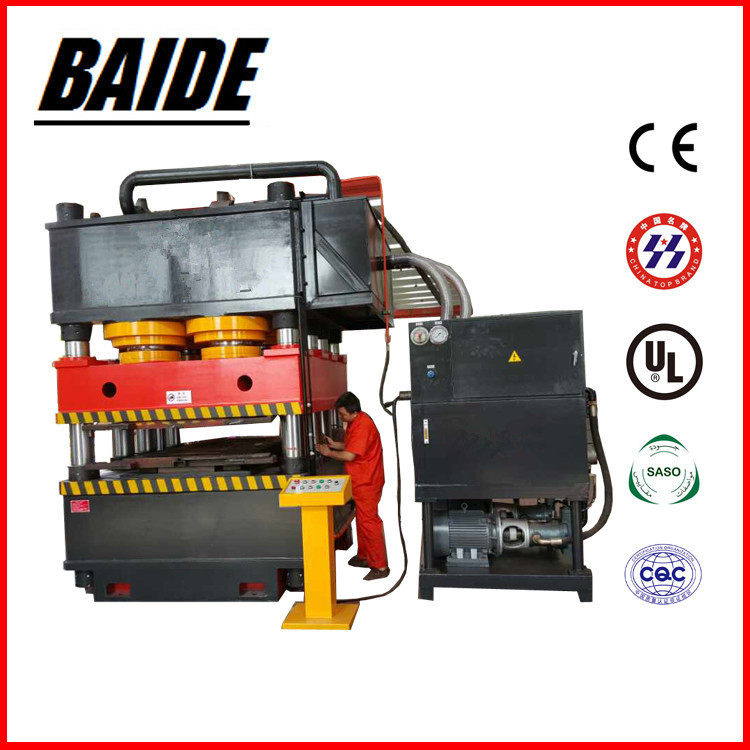

This machine is a security doors, steel doors, interior doors, stainless steel doors and other special hydraulic press molding, this machine is applicable to each big security doors, interior doors,
stainless steel door, steel door manufacturers and wholesale market, steel stamping various pattern burglary-resisting door panel, stainless steel doors, interior door door plank, it is fast, safe,
reliable, energy saving, product appearance, low cost advantages.
The machine working pressure, pressing speed and stroke may be stipulated according to the
requirements of process parameter range of adjustment.This machine with independent power
mechanism and electrical system, and USES the button common control, which can realize
manual, semi-automatic, automatic three kinds of operating mode.Can realize the constant
pressure and fixed distance of two way.
3.Main technical parameter
| Specification | unit | figure |
| Nominal force | KN | 6000×6 |
| Working pressure | Mpa | 25
|
| Effective slide stroke | mm | 400
|
| Return force | KN | 2000
|
| Effective work table size(L-R*F-B) | mm | 1500×2500 |
| Max. Opening height | mm | 500
|
| Min. Opening height | mm | 100
|
| Fast down | mm/s | 260
|
| Slow down | mm/s | 20 |
| Pressing speed | mm/s | 5-15
|
| Return speed | mm/s | 100
|
| Motor power | kw | 30×2
|
| Dimensions(L*W*H) | mm | 3000*2500*3000 |
