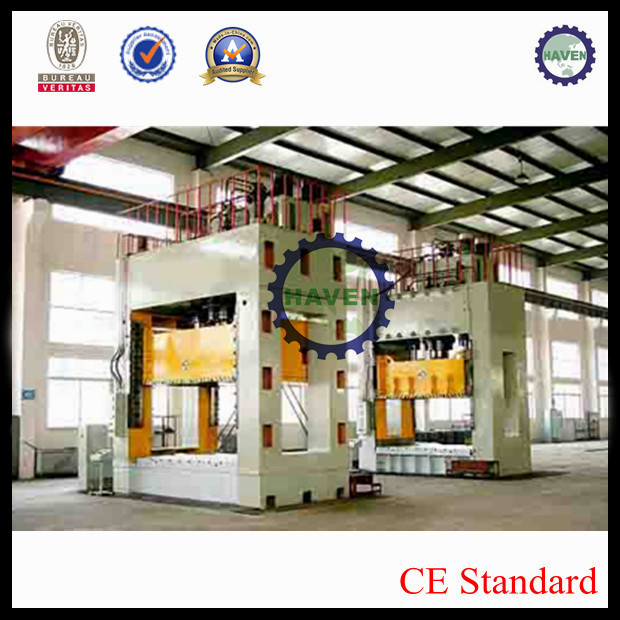

Yq27-1600 Single Action Hydraulic Stamping Press
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
With high-qualified structure design, the single action hydraulic stamping press is four-column structure. This structure has the advantage of simple structure, economical and practical characteristics. This press has an independent power-control system, so the operating is reliable, and can be repaired easily if there's need.
Our hydraulic press is mainly used for metal stamping press, bending and press forming, with the general hydraulic press functions. For example, used for production of automobile parts, household applications, kitchen utensils, tractor, motorcycle, aerospace industries and so on.
|
MODEL |
|
YQ27-63 |
YQ27-100 |
YQ27-160 |
YQ27-200 |
YQ27-315 |
YQ27-400 |
YQ27-500 |
YQ27-630 |
YQ27-800 |
YQ27-1000 |
YQ27-1250 |
YQ27-1600 |
|
Rated Pressure |
KN |
630 |
1000 |
1600 |
2000 |
3150 |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
Maximum Pressure ofliquid |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Stroke of slide |
mm |
500 |
600 |
700 |
700 |
800 |
800 |
900 |
900 |
900 |
1000 |
1200 |
1200 |
|
cushion pressure |
KN |
190 |
400 |
400 |
630 |
1000 |
1000 |
1600 |
2000 |
2500 |
3000 |
4000 |
4000 |
|
Stroke of Cushion |
mm |
200 |
200 |
250 |
250 |
300 |
300 |
350 |
350 |
350 |
400 |
400 |
400 |
|
Daylight |
mm |
1000 |
1000 |
1000 |
1100 |
1250 |
1250 |
1500 |
1500 |
1600 |
1800 |
1800 |
1800 |
|
Speed of Slide |
Descent |
mm/s |
150~
180 |
150~
180 |
100 |
100 |
100 |
100 |
100 |
100 |
150~
200 |
150~
200 |
150~
200 |
150~
200 |
|
pressing |
mm/s |
20~
25 |
10~
14 |
10~
15 |
12~
18 |
8~
12 |
6~
10 |
10~
15 |
8~
12 |
10~
15 |
15~
20 |
15~
20 |
10~20 |
|
Return |
mm/s |
100 |
120 |
70 |
70 |
60 |
55 |
70 |
60 |
70 |
100 |
100 |
120 |
|
Size of Table |
L-R |
mm |
580 |
720 |
960 |
920 |
1150 |
1400 |
1400 |
1500 |
1700 |
3000 |
3800 |
3500 |
|
F-B |
mm |
500 |
580 |
800 |
900 |
1200 |
1400 |
1400 |
1500 |
1500 |
2000 |
2200 |
2200 |
|
Size of Cushion |
L-R |
mm |
380 |
450 |
600 |
760 |
900 |
1000 |
1100 |
1000 |
1250 |
2350 |
3100 |
2800 |
|
F-B |
mm |
380 |
450 |
600 |
660 |
700 |
1000 |
1000 |
850 |
1000 |
1450 |
1600 |
1600 |
|
Motor Power |
KW |
7.5 |
7.5 |
11 |
15 |
22 |
22 |
2×22 |
2×22 |
45+22 |
2×45 |
3×45 |
3×45 |
| Prod Model: |
YQ27-1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
PLC |
| Forging Forming Method: |
Tire Mold Forging |
