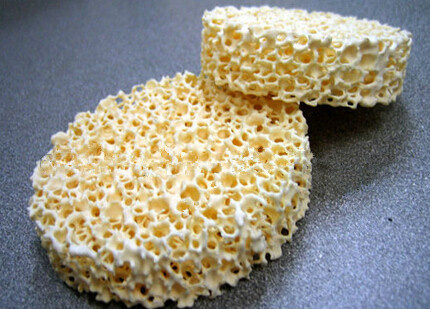

Zirconia Ceramic Foam Filter Foundry Open Cell Foam Casting Ceramic Foam Filters

Zirconia Ceramic Foam Filter Foundry Open Cell Foam Casting Ceramic Foam Filters
Price: US $ 16.0-16.5piece (depend on size)
Trade Terms: FOB,CFR,CIF
Min Order: 200piece (depend on size)
Pay Type: L/C,T/T,Western Union
Zirconia cermic foam filter is applied to purge solution of carbon steel, steel alloy and stainless steel, it can endure require of technology of steel and get rid of foreign matter and materials of corroded model. Zirconia ceramic foam filter can also drop turulent and reduce twice oxided foreign matter. Zirconia ceramic foam filter is designed for the filtration of molten steel, alloy steel, and especially for high quality steel alloys casting temperature up to 1700 ° C, which have high porosity (76%-82%), high thremal shock resistance and large specific surface.

Technical Data:
Pore size (PPi): 10-60
Porosity (%): 80-90
Working temperature(° C): 1720
Bending Strength (Mpa): 0.8-1.0
Compression Strength (Mpa): 1.0-1.2
Thermal Shock Resistance(times/1100° C): 6

Advantages:
Ceramic foam filters help to enhanced quality of castings and reduce cost
*Special 3D structure to reduce turbulence of flowing molten metal
*Reduce defective rate of castings
*Improved mechanical properties of castings
*Improved precision of dimensions and shapes of castings
*Reduced costs of machining operations
*Simplify pouring systems and increase utilization ratio of mold

ColorYellowPPI10-60
Porosity (%)70~80Filtration capacity
(kg/cm²)
≥2.5
Bulk density (g/cm³)0.9~1.1Temperature (celsius degree)≤1700
Compressive strength (Mpa)≥1.75Heat shockExcellent


MaterialsZirconia
Working Temp. ( ° C)≤ 1700
ColorYellow
Pore Size ( PPI )10
Porosity ( % )76~82
Compression Strength ( MPa )≥ 2.5
Bulk Density ( g/cm 3 )0.7~1.1
Thermal Shock ResistanceExcellent
ApplicationCarbon steel low alloy steel

Dimensions mmFlow rate(kg/s)Total capacity
Carbon steelHigh-alloy steelkg
40 × 40 × 2022.530
50 × 50 × 223450
55 × 55 × 224560
Φ 50 × 222.5340
Φ 60 × 253.54.570
Φ 70 × 254.5695
Φ 75 × 2556.5110
Φ 80 × 2567.5125
Φ 90 × 2589.5160
Φ 100 × 259.512190
Φ 120 × 251114220
Φ 150 × 3012.515330
Prod Model: CFZ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 50*50*12mm, 100*100*15mm,etc
Porosity (%): 70~80
Ppi: 10~60
Application: Zirconia Casting
Refractoriness (',℃): 1580< Refractoriness< 1770
Feature: Long Time Materials
Type: Refractory Material
Shape: Round, Square,etc
Material: Zirconia
