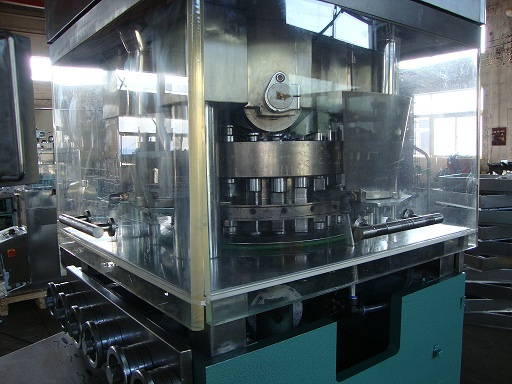

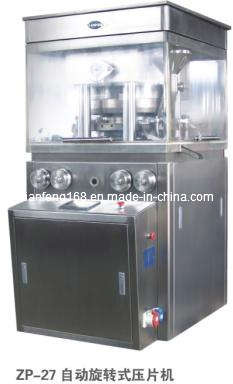

Zp23/25/27 Detergent Cubes Rotary Tablet Press Machine
| Price: |
US $ 44000set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
ZP21/23/27 Rotary Tablet Press Machin (3 layers or 2 layers)Main application:
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics. (Note: When manufacturing double color piece, it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit. )
Operating principle:
1. The cover is made of stainless steel with close type. The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexi glass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain. All monitors and operating components are in good order. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
3. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combining machine with electricity, equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
4. Ransmitting system is sealed in the oil box under the main machine which is a separate component. No pollution and easy to send out heat and resist grinding.
5. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
6. Easily-damaging components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
Technique parameter:
Model: ZP23 ZP25 ZP-27
Dies (sets) 23 25 27
Max. Pressure (Kn) 100 100 100
Max. Dia. Of tablet (mm) 45 40 30
Max. Thickness of tablet(mm) 15 15 15
Max. Depth of fill (mm) 30 30 30
Max production capacity (upto 32mm) (pcs/h) 69000 75000 810000
Rotational diameter (mm) 445 445 445
Rotational speed of revolving table (r/min) 10-25 10-25 10-25
Diameter of middle mould (mm) 52 52 52
Highness of middle mould (mm) 38 38 38
Length of up and down punch pole (mm) 45 45 45
Length of up punch pole (mm) 175 175 175
Length of down punch pole (mm) 180 180 180
Overall dimensions(mm) 1000× 1250× 1900
Net weight (kg) 3200 3200 3200
Motor model YU132M4A YU132M4A YU132M4A
Motor (kW) 7.5 7.5 7.5
Voltage(V) 380 380 380
| Prod Model: |
ZP23 ZP25 ZP27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1000*1250*1900mm |
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. Has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard., Product pass CE and ISO9001 certificate, with high quality and good reputation.
We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
Our products sells well throughout China and Southeast Asia. The products have won good reputation and praises among all customers, from at home and abroad. The management motto of our company is "Develop through quality; Strive for survival through quality".
