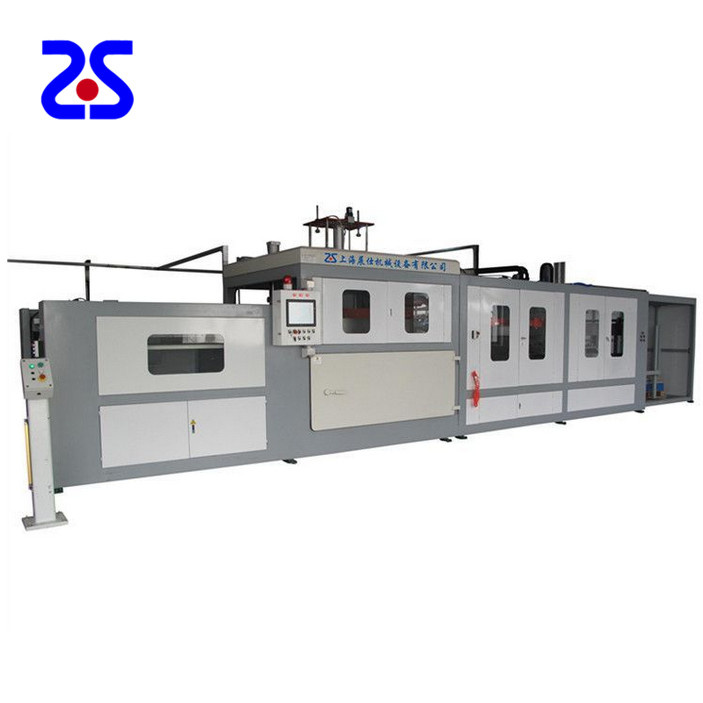

Zs-3521e Vocuum Forming Machine

Zs-3521e Vocuum Forming Machine
Price: US $ 216000-269000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
ZS-1816   Automatic Thick Sheet Vacuum Forming Machine

We are factory specializing in the manufacture and export of  Plastic Film / Sheet (0.1-2 mm) Vacuum Forming Machines, Thick Sheet ( 2 - 12mm , Max. Forming area: 2500*4000 mm, height: 400 - 700 mm) Vacuum Forming Machines, Plastic Blister Forming production line and its Auxiliary equipments, all kinds of Aluminum alloy molds etc.



Summarize:

  ZS-1816 Automatic Computerized Thick Sheet Vacuum Forming Machine is our newly designed automatic thick sheet vacuum forming machine, which is developed on the basis of foreign advance technology & craftwork, combined with actual domestic and customer's demands. The machine adopt PLC ,Touch screen control system, Module temperature control system, automatic mould clamping system, and automatic feeding & unloading system. This machine is easy to operate and suitable for the Blister forming of  the thick sheets in big size and large quantity and difficult to demoulding.
Technical Features:
1.  This equipment has feeding-correction-heating-forming-unloading five working station;
2.  Automatic feeding system, repaid mould replacement, Automatic mould locking and Automatic stacking system can reduce staffing.
3.  Control System: All control system Adopt PLC module, convenient and high efficiency.
4.   Adopt imported low-energy consumption heating elements, the heating system can be whole-process monitored.
5.   The Vacuum and Compressed air system can be precisely controlled by the control valves, solenoid valves and proportional valves.


Technical data:


Details as per diagram.


Purpose:

The equipment is suitable for ABS, PP, PS, PVC, EPS, HIPS, PE, HDPE, PC, PMMA, EVA thermoplastic thick sheet vacuum forming and is an ideal processing machine for auto parts, sanitary wares, bags and light-fixture, sliding board, furniture, toys, advertising signs, traffic signs, apparatus (electrical) shell and inner bladder, plastic pallet and liners etc.
ModelZS-1816/30ZS-1828/50
Max. Forming Area1600*1800mm1800*2800
Max. Forming Height300mmConvex Mould 500mm
Concave Mould 300mm
Sheet Thickness1.0-6.0MM1.0-10.0mm
Air Pressure0.6-0.8Map0.6-0.8Map
Air Consumption5000L/Min(Liters/min)5000L/Min(Liters/min)
Water Supply0.28 Map Tap-water0.28 Map Tap-water
Working Efficiency1-7 Min/Pc(2-6mm)2-7 Min/Pc(2-6mm) 5-10 Min/Pc(5-10mm)
Power Supply380V-50Hz-3PH380V-50Hz-3PH
Power of Motor193 KW(Normally Use 50-120KW)345 KW(Normally Use 30-150KW)
Weight21000 Kg35000 Kg
Measurement(L*W*H)9000*1800*2600 mm13900*5750*4200 mm

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Driven Type: Electric
Shaping Mode: Die Molding
Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity, Textiles, Chemical, Apparel
Certification: ISO9001:2008, SGS
Shanghai Zhanshi Mechanical Equipment Co., Ltd is a professional thermoforming machines manufacturer and is dedicated to the R&D, innovation, Manufacturing of all kinds of Blister forming and plastic molding machines. Our company located in Zhujiajiao Industrial Zone, Qingpu District, Shanghai, close to G50, G1501 high way and 318 national highway, about one hour' S drive to downtown Shanghai, has a convenient traffic.

Since founded in 2004, the Company develops fast with the great efforts of all employees and now possess two subsidiaries named Suzhou Green Sea New Material Co., Ltd. And Shanghai Zhanbo Molding Co., Ltd., Covers an area over 6000 square meters and has more than 200 working staff, among them 25 were high technicians. We have 3 large and medium-sized CNC Machine center and many other machine tools, both the processing equipments and technology were in a leading position in the thermoforming industry in China.

The Major Business scope of Zhanshi Mechanical can be divided into three categories: Automatic vacuum forming machines, Automatic Thick sheet vacuum forming machines and production line, Blister packaging machines and its peripheral equipment etc. Our products can be widely used in the production of blister packaging, electronics, precision injection molding, auto parts, sanitary wares, bags and light-fixture, advertising signs, apparatus (electrical) shell and inner bladder, plastic pallet and liners and so on. We also could provide customers with all kinds of raw materials such as the sheets for production, and the customized services of Aluminum alloy molds is also available.

Taking the concept of "Focusing on customer demands, meeting customer requirements, leading the markets", and bearing the principle of " mutual benefit and common development, quality inheritation and value creation", Shanghai Zhanshi warmly welcome friends all over the world visiting our company, giving your treasure guidance, and let' S create a brilliant future hand in hand!
