Zs-4045 Automatic Color Printing Vacuum Forming Machine
| Price: |
US $ 15800-21800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |

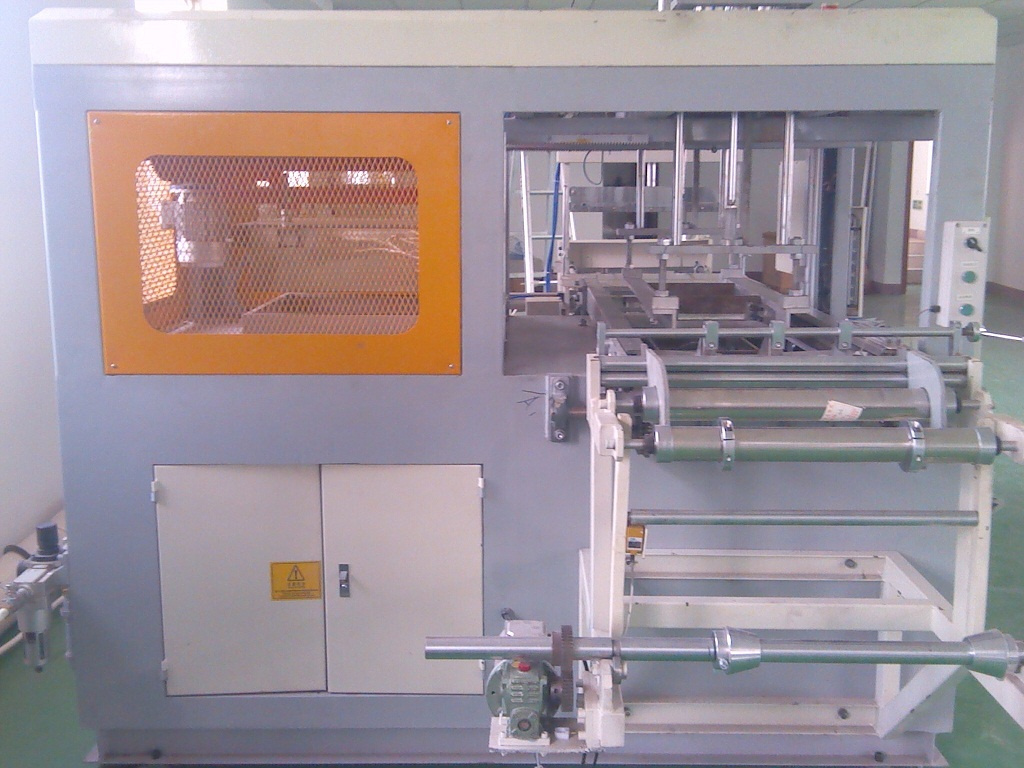

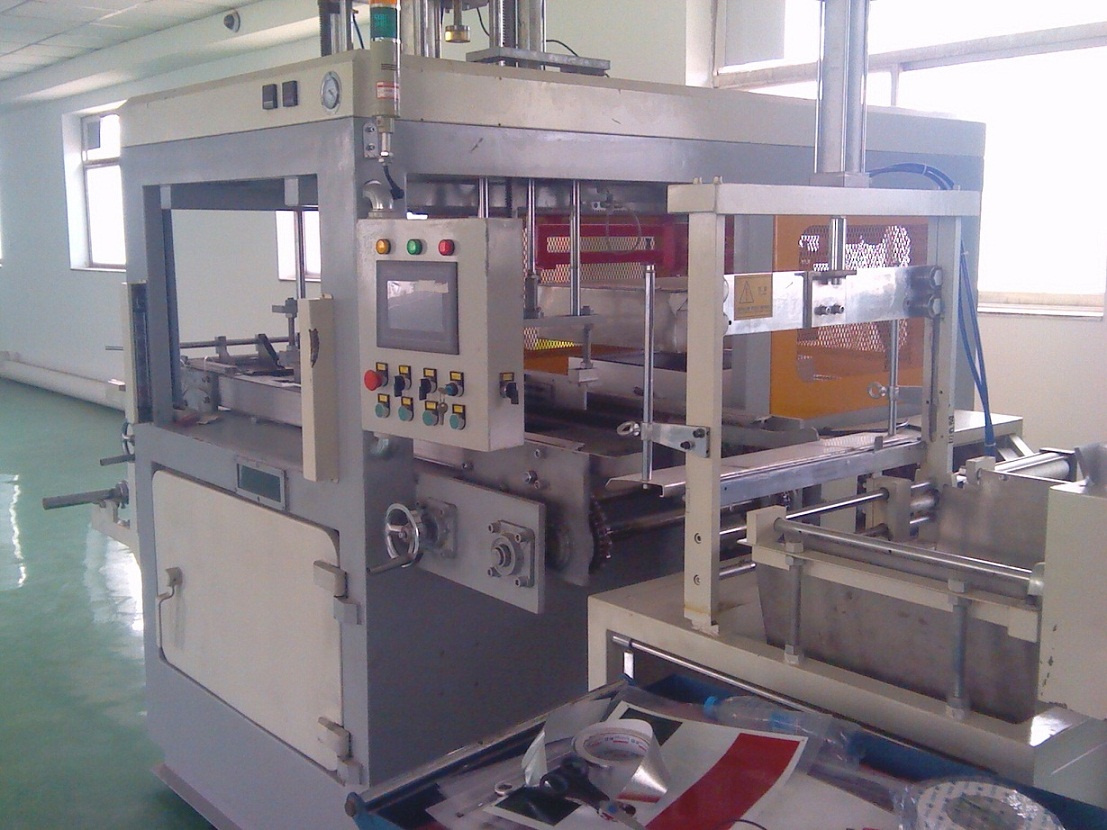

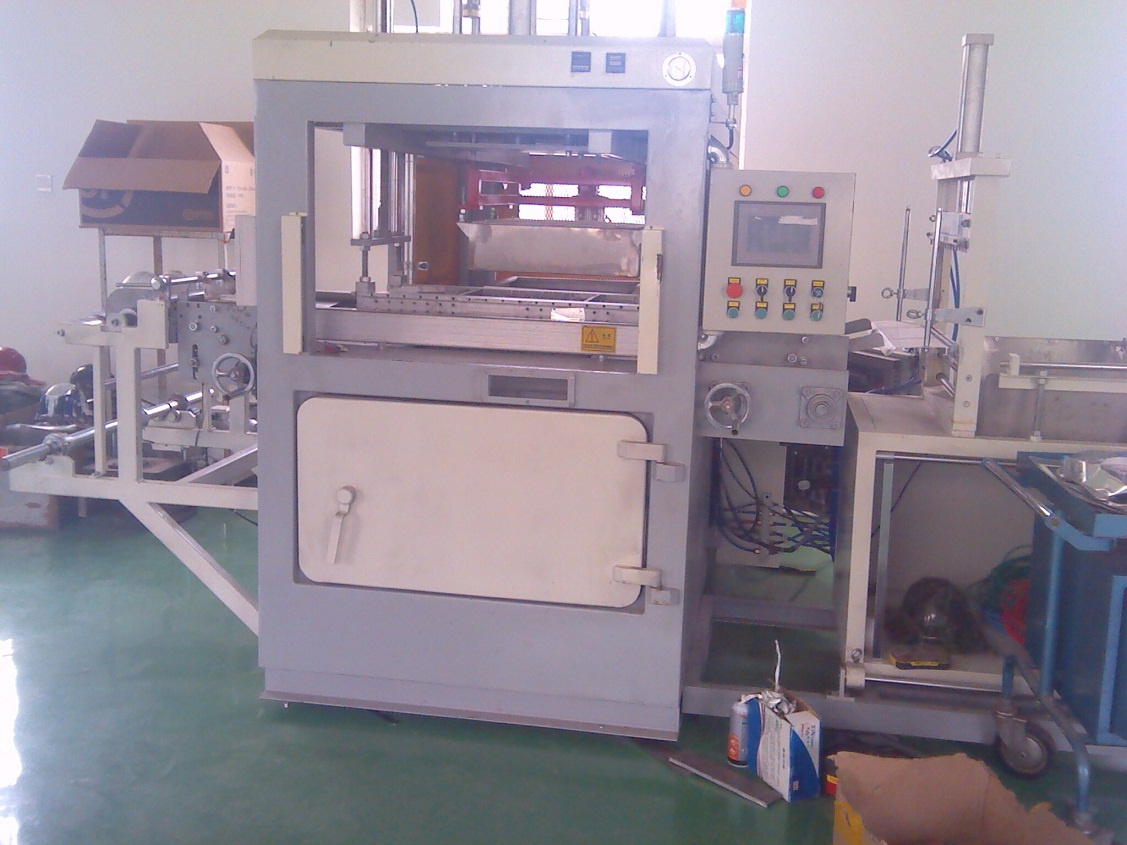

Image of Product
Summarize: The machine has the character of simple structure, easy operation, high efficiency and high automatic degree, Manual and Auto operation is optional, suitable for workers at different level. We could supply single or double station according to your request.
Technical Features:1. This machine is a Automatic Counterponit anastomosis Color Printing vacuum Forming machine, customers may choose the mould chassis width from 350 mm to 450 mm.2. Heating system using far infrared ceramic heating brick and independent temperature control unit.3. Automatic or Manual Operation is Arbitrary switching, suitable for workers at different skill level.4. Fixture system has a counterpoint ananstomosis device, ensure the quality of products forming effect, the tolerance can be controlled within 0.5 mm.5. Can be multi-cavity mold or Single cavity mold.Purpose: This machine can be widely used in the production of PE, PET , PVC , PP , PETG , PS ABS , EPS , APET, HIPS and Biologically Degradable Materials etc. Its production ranges can be Plastics packing industry such as plastics, battery, toy, gift, hardware, appliance, electronics, stationery, decorate; Foods package industry (fast food box, fruit tray, biscuit box). Medicines package (the tablet packing, medicine slice pack). Industrial cooling tower's cooling water flow board. Decorate industry such as embossment, plastics ceiling, wall plank, car material and health devices and so on.Technical Parameters:| Model: | ZS - 4045 |
| Max. Forming Area | 440 * 450 mm |
| Max. Forming Height | 240 mm |
| Max. Forming Width | 300 – 400 mm |
| Thickness of Film | 0.1 -2.0 mm |
| Accuracy of Film Pulling | <0.3 mm |
| Power Supply | 380V-50HZ-3PH |
| Power | 20 KW |
| Air Compressor | 10 HP (7.5 KW) |
| Weight | 2000 Kg |
| Dimension(L*W*H) | 3000 * 1600 * 2200 mm |
| Prod Model: |
ZS-4045 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Counterpoint Vacuum Forming: |
Automatic, Color Printing Vacuum Forming Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Two-revolution Printing Press |
| Color & Page: |
Multi-Colour Printing Press |
| System Supported: |
Linux |
| Usage: |
Plastic Color Printing Vacuum Forming |
| Print Interface: |
Machine |
Shanghai Zhanshi Mechanical Equipment Co., Ltd is a professional thermoforming machines manufacturer and is dedicated to the R&D, innovation, Manufacturing of all kinds of Blister forming and plastic molding machines. Our company located in Zhujiajiao Industrial Zone, Qingpu District, Shanghai, close to G50, G1501 high way and 318 national highway, about one hour' S drive to downtown Shanghai, has a convenient traffic.
Since founded in 2004, the Company develops fast with the great efforts of all employees and now possess two subsidiaries named Suzhou Green Sea New Material Co., Ltd. And Shanghai Zhanbo Molding Co., Ltd., Covers an area over 6000 square meters and has more than 200 working staff, among them 25 were high technicians. We have 3 large and medium-sized CNC Machine center and many other machine tools, both the processing equipments and technology were in a leading position in the thermoforming industry in China.
The Major Business scope of Zhanshi Mechanical can be divided into three categories: Automatic vacuum forming machines, Automatic Thick sheet vacuum forming machines and production line, Blister packaging machines and its peripheral equipment etc. Our products can be widely used in the production of blister packaging, electronics, precision injection molding, auto parts, sanitary wares, bags and light-fixture, advertising signs, apparatus (electrical) shell and inner bladder, plastic pallet and liners and so on. We also could provide customers with all kinds of raw materials such as the sheets for production, and the customized services of Aluminum alloy molds is also available.
Taking the concept of "Focusing on customer demands, meeting customer requirements, leading the markets", and bearing the principle of " mutual benefit and common development, quality inheritation and value creation", Shanghai Zhanshi warmly welcome friends all over the world visiting our company, giving your treasure guidance, and let' S create a brilliant future hand in hand!
