Zs-6191r Single Station Vacuum Forming Machine

Zs-6191r Single Station Vacuum Forming Machine
Price: US $ 18900-22800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union

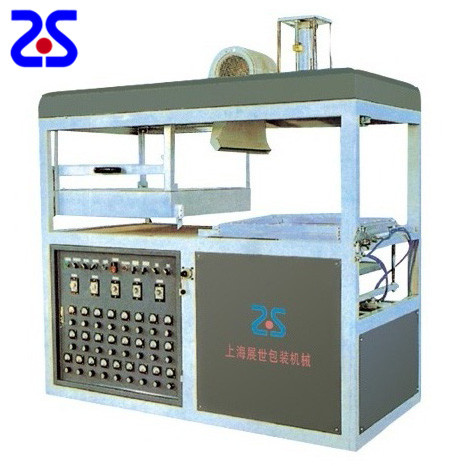

Image of product:

Summarize:

The machine has the character of simple structure, easy operation, high efficiency and high automatic degree, Manual and Auto operation is optional, suitable for workers at different level. We could supply single or double station according to your request.


Technical Features:
1, The Processing flow Feeding →heat →forming →cooling → out of mould →cutting as an automatic production line. This Machines adopts fittings make sure that the Machines has high quality.
2, The heater control: The heater is made by stainless steel to avoid the same model Machines which made by iron creates oxidizing iron fall down to material and make products useless.
  3,Temperature control system: Infrared ray heating ceramic tile and independent control system ensure be heated even, inside place heat preservation material reduce calories lost and save energy sources more than 40% compare with common Machines .
    4,Vibrate to take off from mold: Can adjust 0~9 times, twice vacuum forming make sure the blister no transmutation and easy to break off from mold.
    5,Twice vacuum forming: Inside place twice vacuum forming make the difficult material easy to form and increase product's quality.
    6, Control methods: Manual and auto methods can be chose easy to operate the Machines

Purpose:

Plastics packing industry such as plastics, battery, toy, gift, hardware, appliance, electronics, stationery, decorate; Foods package industry (fast food box, fruit tray, biscuit box). Medicines package (the tablet packing, medicine slice pack). Industrial cooling tower's cooling water flow board. Decorate industry such as embossment, plastics ceiling, wall plank, car material and health devices and so on.

Sample products:




Technical Parameters:




  Model:
ZS-6191   Double StationZS-5671  Single Station
Max. Forming Area610 * 910 mm560 * 710 mm
Max. Forming Height160 mm160 mm
Max. Forming Width410 – 610 mm410 – 610 mm
Film Thickness0.2 -2.0 mm0.2 -2.0 mm
Production Speed60 -140 times/hr60 -10 times/hr
Power Supply380V-50HZ-3PH380V-50HZ-3PH
Motor Power18 KW10-15 KW
Air Compressor5 HP5 HP
Weight400 Kg350 Kg
Dimension(L*W*H)1900 * 1250 * 2000 mm1700 * 1250 * 2000 mm

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Driven Type: Electric
Shaping Mode: Die Molding
Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Chemical, Apparel
Computerized: Computerized
Automation: Automatic
Certification: ISO9001:2008, SGS
Shanghai Zhanshi Mechanical Equipment Co., Ltd is a professional thermoforming machines manufacturer and is dedicated to the R&D, innovation, Manufacturing of all kinds of Blister forming and plastic molding machines. Our company located in Zhujiajiao Industrial Zone, Qingpu District, Shanghai, close to G50, G1501 high way and 318 national highway, about one hour' S drive to downtown Shanghai, has a convenient traffic.

Since founded in 2004, the Company develops fast with the great efforts of all employees and now possess two subsidiaries named Suzhou Green Sea New Material Co., Ltd. And Shanghai Zhanbo Molding Co., Ltd., Covers an area over 6000 square meters and has more than 200 working staff, among them 25 were high technicians. We have 3 large and medium-sized CNC Machine center and many other machine tools, both the processing equipments and technology were in a leading position in the thermoforming industry in China.

The Major Business scope of Zhanshi Mechanical can be divided into three categories: Automatic vacuum forming machines, Automatic Thick sheet vacuum forming machines and production line, Blister packaging machines and its peripheral equipment etc. Our products can be widely used in the production of blister packaging, electronics, precision injection molding, auto parts, sanitary wares, bags and light-fixture, advertising signs, apparatus (electrical) shell and inner bladder, plastic pallet and liners and so on. We also could provide customers with all kinds of raw materials such as the sheets for production, and the customized services of Aluminum alloy molds is also available.

Taking the concept of "Focusing on customer demands, meeting customer requirements, leading the markets", and bearing the principle of " mutual benefit and common development, quality inheritation and value creation", Shanghai Zhanshi warmly welcome friends all over the world visiting our company, giving your treasure guidance, and let' S create a brilliant future hand in hand!
