| Prod Model: |
ST-75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pet Machine: |
Pet Packing Machine |
| Full Automatic: |
easy to operation |
| Low Noise: |
low energy consumption |
| Strong Technical Team: |
new design |
| Application: |
Fruit Drinks |
| Strapping Material: |
Strip |
| Packaging Type: |
Box |
| Automatic Grade: |
Automatic |
| Strapping Mode: |
Buckling Type |
| Driven Type: |
Electric |
| Structure: |
Pressure Strapping |
Product Description

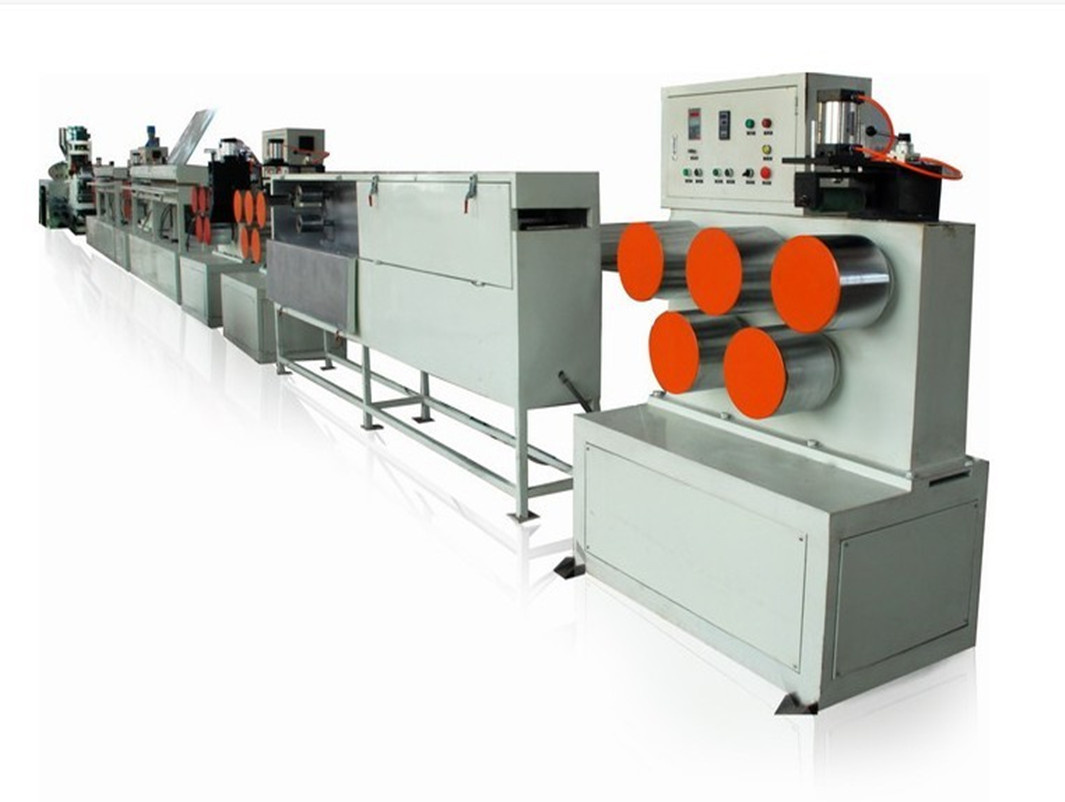

CE Approved Plastic Machine PET Packing Belt Production Line
Technical details:
-Processing material: 100% recycled PET flakes or virgin PET
-Product width: 9-32mm
-Strap thickness: 0.4-2mm
-Quantity of extruded straps: 1-2
-Output: 160kg/h
-Max Liner speed: 120m/min
-Power supply: 380V/3P/50Hz
-Installed power:120kw real electricity consumption 70% of it.
-Operators: 2-3 require to operate whole plant
-Overall dimension: 33m×3m×4.5m
Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
Equipment List:
No. |
Names |
Quantity |
1 |
Dehumidifying and Crystallizing Equipment |
1set |
2 |
SJ-75/33 Single Screw Extruder |
1set |
3 |
Automatic Screen Changer |
1set |
4 |
Mold |
1set |
5 |
Water Tank Cooling System |
1set |
6 |
The First Haul-off |
1set |
7 |
Heating Oven |
1set |
8 |
Preheating Machine |
1set |
9 |
Drawing and Stretching Machine |
1set |
10 |
Drawing and Stretching Machine |
1set |
11 |
Embossing |
1set |
12 |
Hot Shaping Machine |
1set |
13 |
Haul-off |
1set |
14 |
Winder |
1set |
15 |
Control system |
1set |
Based of extensive experience over many years in the field of plastic extruder machinery technology our business activities are as follows:
Planing, design and Manufacturer of plastic extruder mainly for the plastic sheet/pipe/profile extrusion line, and we also supply all kind of plastic raw material to support different customer needs.
We supplies extruder and extrusion lines manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
We would like to offer our quality to you, and looking forward to discussing your special plastic extrusion line solution individually and professionally.
Based of extensive experience over many years in the field of plastic extruder machinery technology our business activities are as follows:
Planing, design and Manufacturer of plastic extruder mainly for the plastic sheet/pipe/profile extrusion line, and we also supply all kind of plastic raw material to support different customer needs.
We supplies extruder and extrusion lines manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
We would like to offer our quality to you, and looking forward to discussing your special plastic extrusion line solution individually and professionally.
