Mill Type:
Grinding Discs Type
Suitable Grinding Medium:
Zirconium/Zirconia/Zircon Beads
Function:
Wet Grinding for Particle Size Reduce
Applicable Industry:
Paint, Ink, Pigment, Agrochemical etc.
Product Description

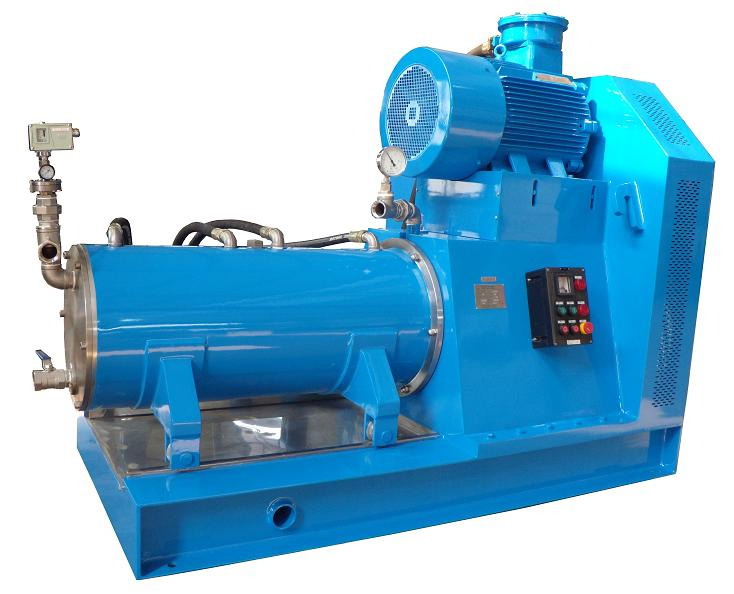

"ZM100DB3310-E" is the 100 liters horizontal discs type bead mill.
Specification
1) 100L
2) Single mechanical seal
3) Ex proof
4) Mold steel for inner grinding chamber and grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Gap separator
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Model
Motor (kW)
Grinding Container Volume (L)
Production Capacity
Weight (approx. )
Dimension (L× W× H)mm
ZM0.3
0.75
0.3
50
640× 410× 485
ZM1.4
2.2
1.4
5-50kg/h
500
655× 570× 885
ZM5
7.5
5
20-100 kg/h
700
1250× 900× 1250
ZM15
15
15
30-150 kg/h
800
1560× 1050× 1550
ZM20
18.5
20
50-200 kg/h
980
1600× 1050× 1550
ZM30
22
30
50-300 kg/h
1100
1860× 1100× 1550
ZM50
30
50
60-500 kg/h
1300
2100× 1150× 1650
ZM60
30
60
60-600 kg/h
1400
2100× 1150× 1650
ZM100
45
100
100-1000 kg/h
2000
2250× 1280× 1640
ZM200
55
200
150-1500 kg/h
2500
2250× 1280× 1735
ZM250
75
250
200-2000 kg/h
2700
2800× 1280× 1765
ATTN: Different constructions horizontal bead mills have different technical data. Please contact with seller to get the exact suitable model and technical data.
