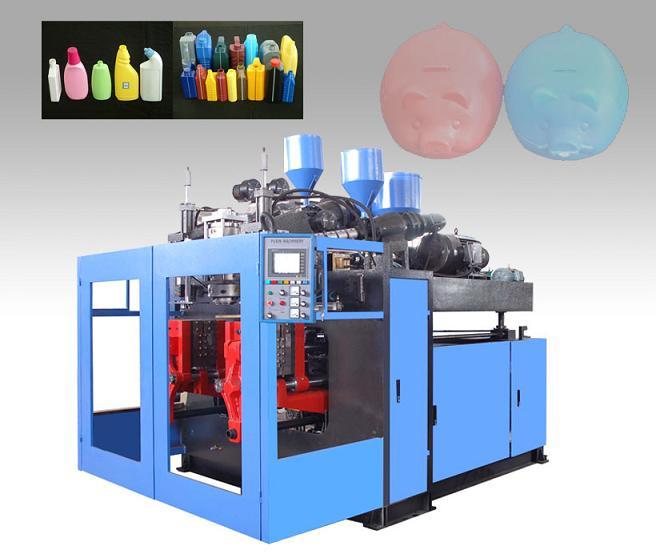

12L Automatic Blow-Molding Machines, Mold-Moving with Double Station
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
PXB90D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Automation: |
Automatic |
Making Method Of Parison: |
Extrusion-Blow Molding |
Raw Material: |
PE |
Computerized: |
Computerized |
Certification: |
CE |
Product Description
Clamping system: Double liner guide moving and fortified steel platen triple tie bar center clamping system
Extrusion system: Hard gear surface decelerator + Japan inverter
Die system: Center-incoming extrusion die with special steel
Hydraulic system: Japan hydraulic valve seal and proportional control
Control system: Japan PLC+ imported + PLC automatic temperature control model + imported electronic parts
Technical specifications |
Specification |
|
PXB90D |
Material |
|
PE, PP, PVC, PA |
Max container capacity |
L |
12 |
Output (dry cycle) |
PC/HR |
600x2 |
Dimension (LxWxH) |
M |
4.2x3.4x2.8 |
Total weight |
T |
8 |
Clamping unit |
|
|
Clamping force |
KN |
95 |
Platen opening stroke |
MM |
200-600 |
Platen size |
MM |
550x420 |
Max mould size (WxH) |
MM |
580x470 |
Mould thickness |
MM |
210-330 |
Power |
|
|
Total power |
KW |
78 |
Max drive |
KW |
52 |
Fan power for screw |
KW |
0.4 |
Oil pump power |
KW |
15 |
Air pressure |
MPA |
1 |
Air consumption |
M3/MIN |
0.9 |
Average energy consumption |
KW |
38 |
Extruder unit |
|
|
Screw diameter |
MM |
90 |
Screw L/D ratio |
L/D |
24 |
Output of HDPE |
KG/H |
140 |
Number of heating zone |
ZONE |
4 |
Extruder heating power |
KW |
21.4 |
Extruder driving power |
KW |
37 |
Die-head |
|
|
Number of heating zone |
ZONE |
3 |
Power of die heating |
KW |
5.7 |
Maximum die pin diameter |
MM |
180 |
Center distance of double head |
MM |
250 |
Center distance of four-head |
MM |
95 |
Reliable Solution Provider of Production Equipment
Kinggle Machine focuses on the design and manufacture of fast extrusion blow molding and rapid cold molding, automatic production, and auxiliary systems. We are also a solution provider of production equipment in the blow molding field.
Bringing Optimal Combination Possibilities
With platform strategy, mature technology and innovative solution, our products bring optimal combination possibilities for highly efficient and lasting bottle production systems. We also offer the right solution as per clients' needs, enhancing their benefits and helping them win more markets.
Focusing on providing machines and molds with high quality, we ensure the line runs smoothly by selecting the best auxiliary equipment. Most of all, as a solution provider, we provide good services too, and can provide more spare parts. We will cooperate with clients about selecting the best and saving the cost for scheme.
Our service is very closely associated with each other from your need to our machine smoothly running in your factory. We will ask for information about your product requirements, then design the product, design the scheme of equipment, configuration and optimization in order to reduce risk of closing down and realize maximum efficiency. We also test machines before shipping, and perform debugging after installing the machines. In addition, we can train your workers and provide maintenance and repair services.
Inquire today to begin sourcing.
