| Price: | US $ 3000-5000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | OD-1325L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: | 80W/100W/130W CO2 Laser Tube |
| Warranty Time: | Laser Tube Is 6 Month ,Other Is 1 Year |
| Motor: | Stepper Motor |
| Delivery Time: | 7 Days |
| Payment Term: | 50% in Advance ,50% After Finished Before Shipping |

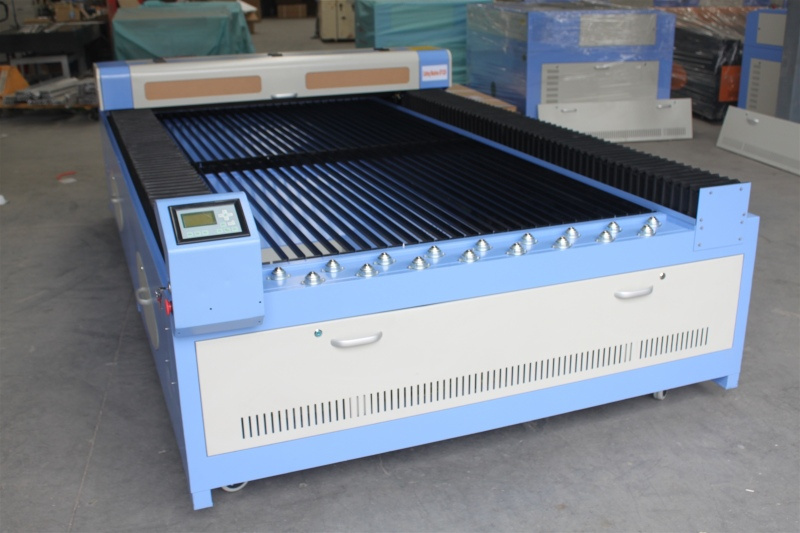

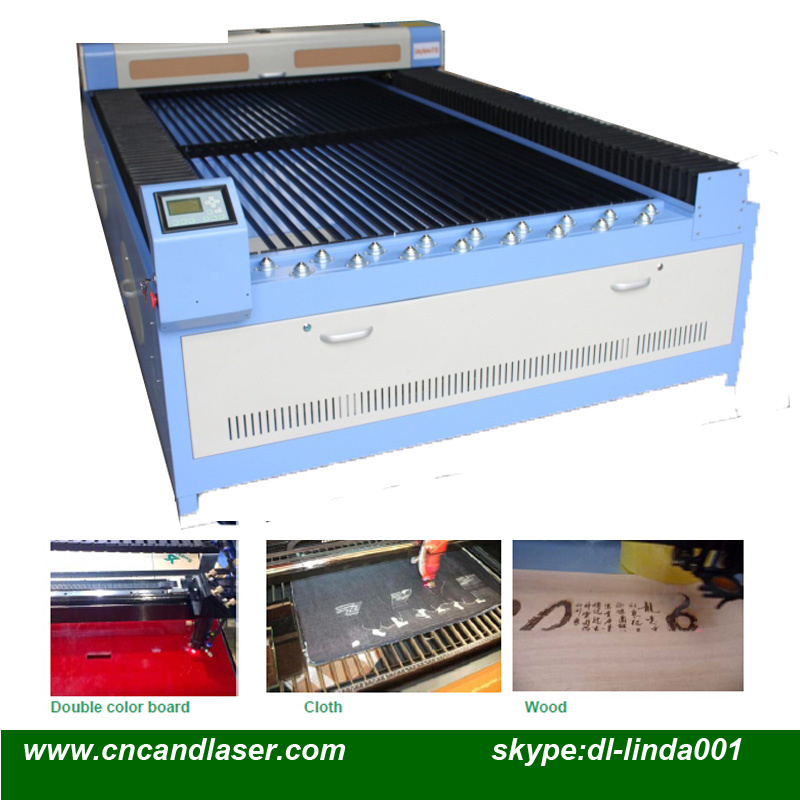

1325 Laser cutting machine for acrylic
Mainly used for plastic characters cutting, color plate engraving, plexiglass engraving cutting, sign engraving, crystal, trophy engraving, sculpture and other licensing authority.
Craft industry: carved patterns and text on wood, bamboo, ivory, bone, leather, marble, shells and other materials.
Leather clothing industry: for complex text graphics engraving, cutting, carving and other processing on hollow leather, leather, leather, fabric, fur. Clothing, underwear, furniture, gloves, handbags, shoes, hats, toys and car cut flower industry, carving, beyond fashion, show personality.
Model industry: production of construction sand table model ships and aircraft, ABC plate cutting, MLB cutting.
Packaging Industry: Engraving printed rubber plate, plastic plate, double plate, cutter knife board.
Product identification industry: equipment nameplate, marking and other security products.
Other industries: marble, granite, glass, crystal and other decorative materials carving marks, paper cutting, greeting cards and other paper craft cutting.
Parameters:
Model | OD-1325 | OD-1530 |
cutting size | 1300*2500 | 1500*3000mm |
Whole machine size | 3000*1600*990mm | 3500*1800*990mm |
Laser power | 60w or 80w/100w/130w | |
speed | 0-24000mm/min | |
Resetting positioning accuracy | ±0.1mm | |
Engraving accuracy | 0.025mm | |
Power supply | AC 110 - 220V ±10%, 50 - 60Hz | |
Gross power | <;1000W | |
Operating temperature | 0 - 45°C | |
Operating humidity | 8 - 95% | |
Minimum shaping character | English 0.8 x 0.8mm | |
Graphic format supported | BMP, HPGL, PLT, DST, DXP, and AI | |
Driving system | Stepper | |
Drive type | Step motor | |
Cooling mode | Water-cooling and protection system | |
Auxiliary equipments | Exhaust-fans, air-exhaust pipe | |
Controlling software | DSP control system | |
Laser tube type | CO2 sealed glass | |
Net Weight | 420kg | 520kg |
Gross Weight | 600kg | 700kg |
optional items | Red location, Cooler, Honeycomb tbale. | |
