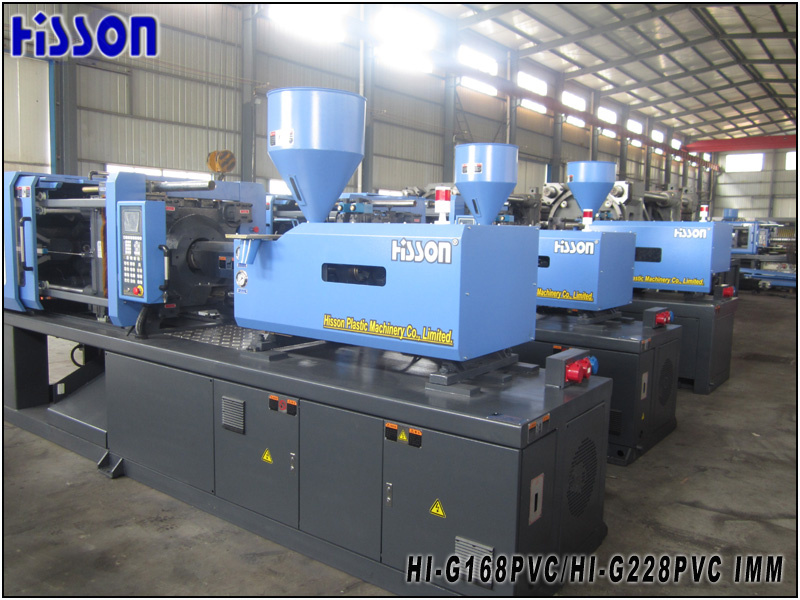

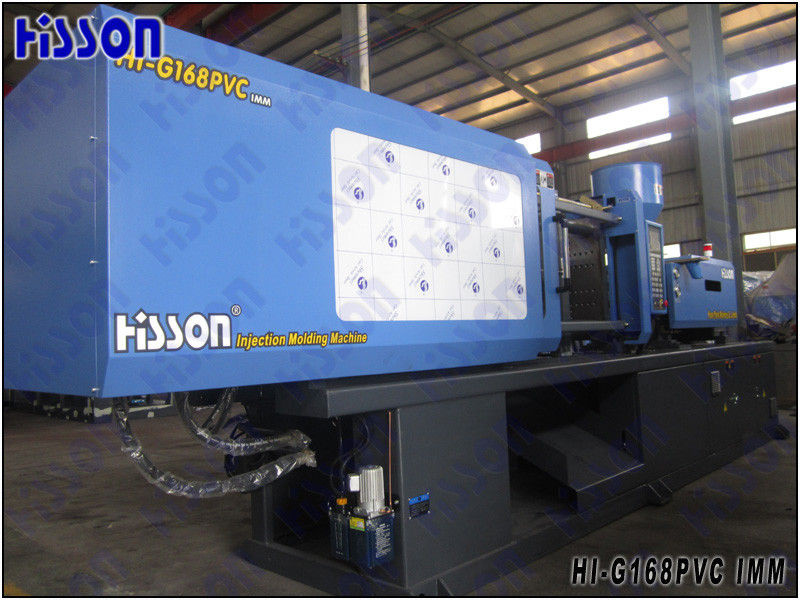

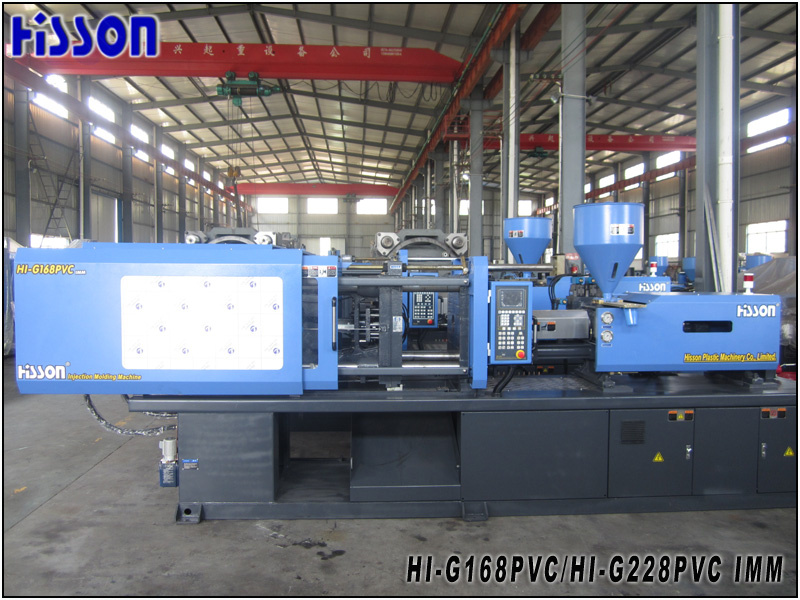

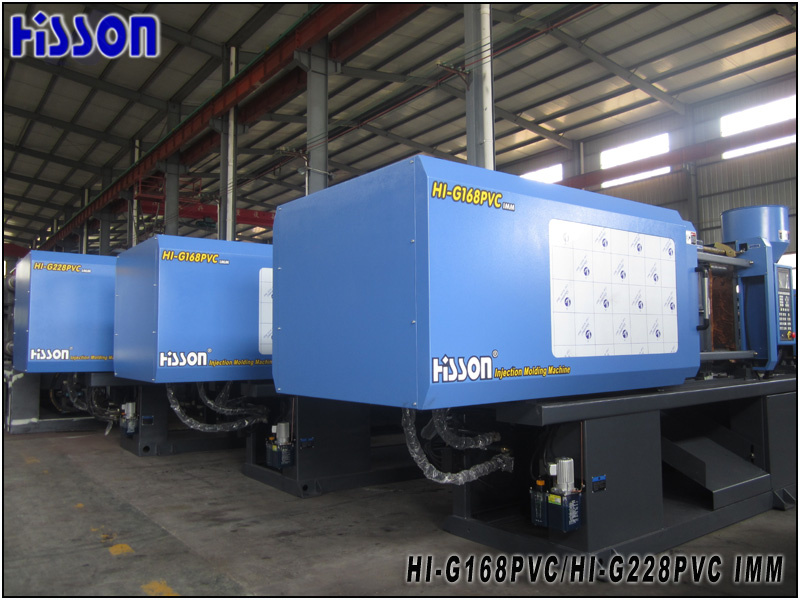

168t PVC Pipe Fitting Injection Molding Machine Hi-G168PVC

168t PVC Pipe Fitting Injection Molding Machine Hi-G168PVC
Price: US $ 19800-22800/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: HI-G168PVC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 1680kn
Screw Dia.: 40/45/48
Shot Volume: 245/310/353cm3
Tie Bar Distance: 460*460mm
Type: Injection Blow Molding
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic & Mechanical
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008

Product Description

Style:HorizontalClamping Force:168Tons
Application:Household, IndustrialComponents:Techmation, Schneider, Vickers
Control Method:Automatic, Auto, Fully-automaticMaterial: PVC
Mold Cavities:1 Cavities, 2 Cavities, 4 CavitiesWorking Principle:High Speed, Hydraulic
 PVC pipe fitting injection molding machine, special designed for PVC pipt fitting injection molding


Machine main components adopt world famous brand, e.g.:
Controller:TECHMATION (TAIWAN),
Low voltage contactor: SCHNEIDER(FRANCE),
Low voltage air switch: SCHNEIDER(FRANCE),
Proportional Valve: Dofluid HNC(TAIWAN)
Oil pump: VICKERS(USA)
Directional Valve: VICKERS(USA)
Induction travel switch: OMORON (JAPAN)
Inductor potentiometer: FORT(USA)



Applications:

HI-G168 Plastic Injection Molding Machine is for PVC pipe fitting injection molding



Specifications:


HI-G168 Technical Parameters



HI-G168

Optional Parameters

TECHNICAL PARAMETER TABLE

Unit

A

B

C

INJECTION
UNIT

SCREW DIAMETER

mm

40

45

48

SCREW L/D RATIO

L/D

22.5

20

18.8

SHOT VOLUME(THEORETICAL)

cm3

245

310

353

INJECTION WEIGHT(PS)

g

228

290

328

INJECTION RATE

g/s

118

150

170

PLASTICIZING CAPACITY

g/d

18

22

25

INJECTION PRESSURE

Mpa

196

155

136

SCREW SPEED

rpm

0-195

CLAMPING
UNIT

CLAMP TONNAGE

kN

1680

TOGGLE STROKE

mm

430

SPACE BETWEEN TIE BARS

mm

460×460

MAX.MOULD HEIGHT

mm

480

MIN.MOULD HEIGHT

mm

180

EJECTOR STROKE

mm

120

EJECTOR TONNAGE

kN

40

EJECTOR NUMBER

Piece

5

OTHERS

Max.PUMP PRESSURE

Mpa

16

PUMP MOTOR POWER

KW

15

HEATING POWER

KW

7.5

MACHINE DIMENSION(L×W×H)

m

5.0×1.4×2.1

MACHINE WEIGHT

T

5.2

HOPPER CAPACITY

kg

25

OIL TANK CAPACITY

L

250



Competitive Advantage:


1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates



Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.

We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.

Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.

In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.

We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.

We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.

Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.

In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.

We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
