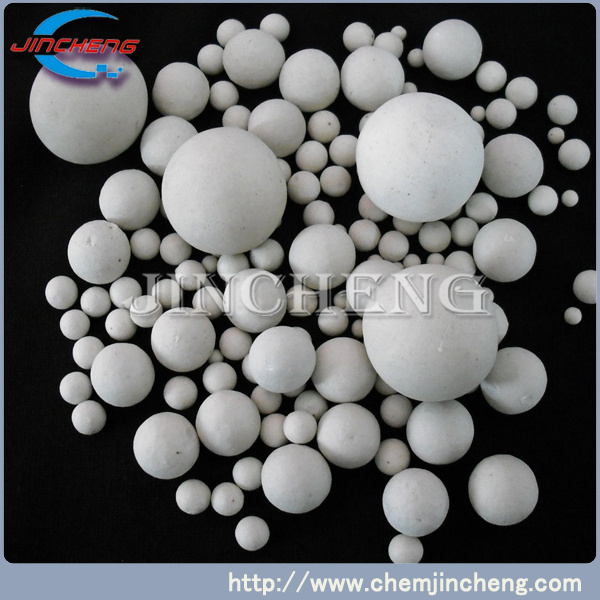

Ceramic Ball are widely used in many fields, including petroleum, chemical engineering, fertilizer production, natural gas and environmental protection. They are used as covering and supporting materials of catalysts in reaction vessels and as packing in towers.
They have stable chemical features and a low rate of water absorption, resist high temperatures and high pressure, and also resist the corrosion of acid, alkali and some other organic solvents. They can stand the change in temperature during the manufacturing process.
The main role of inert ceramic balls is to increase the distribution spots of gas or liquid, and to support and protect the activating catalyst with low strength.
Typical Quality Assurance for Ceramic Ball
To analyze the raw material for chemical composition, particle size and moisture content to ensure consistent properties that will provide optimum performance of the finished product.
Following crumbling and pulverisation of the raw material it is screened to remove coarser particles.
After the ground raw material is pre-selected by magnetic separation it is checked to make sure that the Fe2O3 content is less than 1%. After aging and soaking, the water content is checked to ensure it is between 20-24%.
After moulding shapes the product, extruding or hand rolling, a random check is made on dimensions and shapes.
After the product is dried, a random check to make sure that the moisture content is less than 3%.
During firing the furnace is precisely controlled with regard to temperature and duration of firing.
Every finished item is visually examined to confirm shape, color and dimensions are within specification.
Random tests are carried out to confirm acceptable chemical and physical properties of the finished product. This includes testing for specific gravity, compressibility strength, water absorption, anti-acid strength, etc.
Prior to packing the finished product for despatch the weight of a unit volume is checked to comply with the specification limits.
Finally, the finished product is certified to comply with the Customers specification.
Packing
1. By plastic bag, each bag 25kgs net, palletized with wrapped.
2. By steel drum, each drum 250kgs net, palletized with wrapped.
| Chemical composition |
| Typical Technical Composition | Min.% | Max.% | Usual% |
| SiO2 | 64.00 | 75.00 | 68.40 |
| Al2O3 | 19.00 | 26.00 | 24.50 |
| Fe2O3 | ****** | 1.60 | 0.94 |
| TiO2 | ****** | 1.40 | 0.96 |
| CaO | ****** | 0.65 | 0.42 |
| MgO | ****** | 0.60 | 0.38 |
| Na2O | ****** | 2.00 | 1.12 |
| K2O | ****** | 3.50 | 3.28 |
| Al2O3+ SiO2 | 90.00 | 96.00 | 92.90 |
|
| Physical properties |
| Index | Value | Value |
| Leachable Iron | ≤0.1% | ****** |
| Apparent Porosity by Weight, dia≥10mm | ≤0.4% | ****** |
| Apparent Porosity by Weight, dia= 6mm | ≤1.0% | ****** |
| Apparent Porosity by Weight, dia= 3mm | ≤3.0% | ****** |
| Moh's Hardness Scale | >6.5 | ****** |
| Water Absorption | <1.0wt.% | ****** |
| Acid Resistance | >99.8% | ****** |
| Thermal Conductivity | 0.9-1.0w/m 2 .k | ****** |
| Thermal Expansion @500 Centigrade | 0.20% | ****** |
| Specific Heat | 628-837j/kgq | ****** |
| Thermal Shock Stability, 500 Centigrade then water cooling | 10 times | ****** |
| Max. Operating Temperature | 1050 Degree C | 1922 Degree F |
| Specific Density | 2,300 kg/m 3 | 144 lb /ft 3 |
| Bulk Density (Packing Density) | 1,350 kg/m 3 | 84 lb /ft 3 |
|
| Crush Strength |
| Size | Crush Strength |
| Normal Size | (lbs) | (kg) | (N/pc) |
| mm | inch | min. | min. | min. |
| 3 | 1/8 | 50 | 23 | 225 |
| 6 | 1/4 | 123 | 56 | 550 |
| 10 | 3/8 | 202 | 92 | 902 |
| 13 | 1/2 | 385 | 175 | 1716 |
| 16 | 5/8 | 520 | 236 | 2315 |
| 19 | 3/4 | 978 | 444 | 4355 |
| 25 | 1 | 1428 | 648 | 6355 |
| 38 | 1-1/2 | 2020 | 916 | 8983 |
| 50 | 2 | 2987 | 1355 | 13288 |
Shenzhen Jincheng Chemical Packing Co., Limited was established in 1989, which has rich technical force and advanced equipments. Products including: Insulating Glass Desiccant, Activated Alumina, Ceramic Balls, Molecular Sieve, Silica Gel, Activated Carbon, Alumina Balls, all kinds of chemical packings with material of ceramic, plastic and metal. Porducts are tested and certificated by the public authority of quality testing & inspection. We have implemented a quality assurance program based on the formalized requirements of ISO9001, and our customers are not only from domestic market, but also from worldwide such as South America, Asia, Europe, Africa and Middle East.
Our company has fully developed the spirit of "Teamwork, Dedication, Honesty, Practical, Innovation and Initiative", created an atmosphere of "Embarking on people" and "Respecting the talent, knowledge and characteristics of staff", and implemented the quality principle of "Accurate Design, Meticulous Production & Excellent Service". Keep pace with the times, build up long-term relationships with the partners, make every effort to attract first class staff from home and abroad, strive for the prosperous future of Jiangxi Jincheng.
If you are interested please feel free to send your inquiry for more detailes.
