Prod Model: |
TSD-LC300-1216 |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Plywood Die Board Laser Cutting Machine: |
Tsd-LC300-1216 |
Application Industries: |
Printing, Packing, Mould, etc., . |
Process Blade Thickness: |
0.45mm, 0.71mm, 1.05mm..etc. |
Cutting Precision: |
+-0.05mm |
Laser Type: |
CO2 Sealed Laser Tube |
Laser Power: |
300W |
Re-Position Accuracy: |
Less Than 0.03mm |
Surrounding Temperature: |
0-45 Celsius System |
Protective Gas: |
Dry and Oil-Free Air |
Net Weight: |
1400kgs |
Application: |
Machinery & Hardware |
Automation: |
Automatic |
Type For Cutting Machine: |
Laser Cutting Machine |
Type: |
Plywood Die Board Laser Cutting Machine |
Product Description
18-22mm Plywood Die Board Laser Cutting Machine Price This Die Board Laser Cutting Machine is widely used for Printing,Packing and Mould Industries,it is with 2heads Laser head,Stable 300W Laser Power.
Technical Parameter:
Model No. | TSD-LC300-1209 | TSD-LC300-1215 | TSD-LC300-1216 |
Processing scale | 1200x900mm | 1200x1500mm | 1200x1600mm |
Net Weight | 1400Kgs | 1500Kgs | 1500kgs |
Laser Type | CO2 Sealed Laser Tube |
Laser Power | 300W Double Heads |
Driving Motor | Panasonic Servo Motor |
Cutting Depth | 18mm-22mm Plywood |
Cutting Precision | ±0.05MM |
USB Port Connection | Yes |
Operating Temperature | 0-45°C |
Mould Knife Thickness | 0.45mm, 0.71mm,1.07mmetc. controllable |
Cutting Speed | 25-30meters/hour(18-20mm Plywood) |
Protective Gas | Dry and Oil-free Air |
Power Supply | Single-phase Electricity 220V±5% 50Hz 10A |
Numerical Control Panel | LCD Screen, Light-touched Key-press |
Software Supported | CorelDraw, Auto CAD, Photo Shop, |
Graphic format support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS Memory | attached 32MB memory,can work under off-line condition |
Laser Tube Guarantee | Guarantee 6 months,6000 hours life span for laser tube |
Assistant Equipments | Air Dryer,Industrial Chiller,Exhaust Fan,Computer System |
Recommend spare parts | Laser Tube and Lens |
H.S Code | 8456100090 |
Features: 1.Water cooling system with protective function which makes sure the safety of laser tube. 2. Imported reflect and focus lens (America), which are durable and reduce the laser lose. 3. High quality and durable laser tube, the laser DOT is very small so that make sure the perfect cutting effect. 4. Low consumption of CO2 laser die cutting machine, the voltage is about 4-6 kw/h only. 5. High series industrial water chiller CW-6000, imported Taiwan HIWIN ball-screw transmission with double direction precision. 6. CO2 laser cutting machine need not any assistant gas during cutting, air only. 7. Easy to adjust laser focus and operate machine after training. 8. High strength of machine bed, stably work for long-year. 9. Faster cutting speed (25-30m/h on 18-25mm plywood), higher cutting precision (±0.05mm) and lower noise. 10. Laser path fixed (laser head fixed, wood moving), double head CO2 laser die cutting machine.

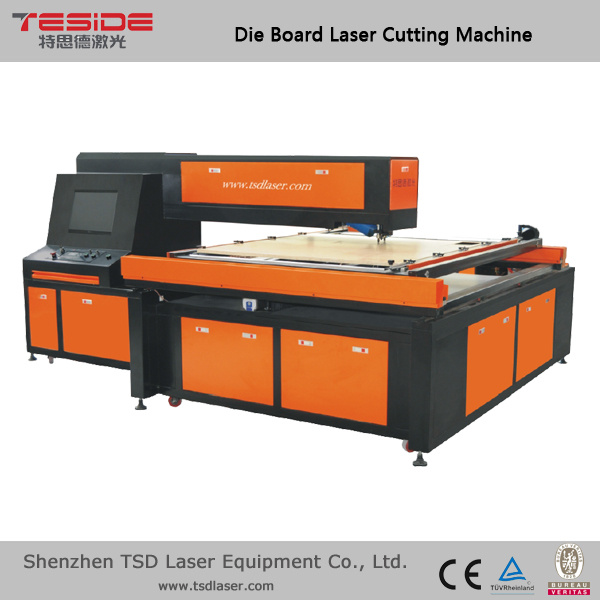

Picture of CO2 Laser Die Board Cutting Machine:
Applications:
Applicable Industries:
Die Board CO2 Laser Cutting Machine Can be used in Printing,Packing,Mould Making,Industries.
Applicable Materials:
Plywood,Acrylic Board.

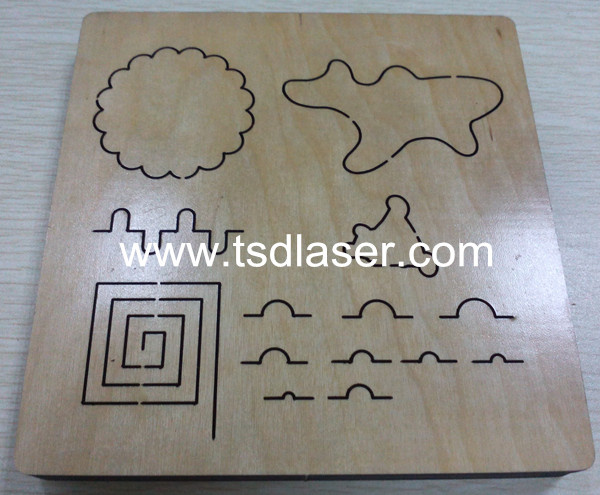

Die Board Samples Show:
Package:
Standard Export Wooden Case,which can protect the Equipment well from damage during shipping.
2015 International Exhibitions TSD Laser Attend:
I).Exhibition: The 12nd Printpack India
Add: India Expo Centre, Greater Noida Delhi NCR
Booth No.: Hall 10-E16
Date: 11-15 February,2015
II).Exhibition: The 22nd South China International Exhibition on Printing Industry
Add: Area A, China Import & Export Fair Pazhou Complex Guangzhou · PR China
Booth No.: 4912
Date: 9-11 March,2015
III).Exhibition: The 3rd International Printing Technology Exhibition of China (Guangdong)
Add: Guangdong Modern International Exhibition Centre
Booth No.: 71029
Date: 7-12 April,2015
IV).Exhibition: SinoCorrugated 2015
Add: Shanghai New International Expo Center, Shanghai, China
Booth No.: Y59
Date: 14-17 April,2015
V).Exhibition: Pack Print International Tailand 2015
Add: Bangkok International Trade Exhibition Centre
Booth No.:
Date: 26-29 August,2015
TSD Laser Serice:
Shenzhen TSD Laser Equipment CO., LTD adheres to the customer-oriented service concept, providing complete installation, commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
Pre-sales service:
We provide customers with a variety of services including production processes proposals, technical consulting, free sample making, equipment shape designing.
Machine-installation & debugging:
According the contract, our company will ship the equipment to the port of Shenzhen or domestic user specified location.Qualified technician will be send to customer's company for machine installation and debugging.Under the proper circumstance, the technician will finish installation within three days.Please keep the installation place clean and tidy.
Training:
After machine installation and testing, qualified technician will be send to customer's company for training (machine operation, machine maintenance, machine debugging, product sample processing, etc).TSD Laser also welcome our customers to come to Chinese headquarter for machine training.The training is free of charge and it will last at least 3 days until the operator of customers' can use the machine properly and correctly.
Maintenance:
Complete and perfect after-sales service;
One year warranty and lifetime maintenance for the equipment;
Lifetime free of charge support and upgrade for hardware and software.
TSD Laser Company Information: Shenzhen TSD Laser Equipment Co., LTD locates in Shenzhen,China and specialize in die board laser cutting machine, automatic blade bending machine development, manufacture, marketing and service which has been widely used to manufactured for packing, printing and die making industries. Contact us: We are appreciated for your visit our website,any question please feel free to contact us.
