PVC Pelletizing Production Line:
Product Name
Model:
Sj/Sjsz PVC Pelletizing Production Line
Maximum Output:
400kg/H
Motor Power:
110kw
Inverter Brand:
Hitachi
Screw&Barrel Treatment:
Nitrid Treatment
Screw&Barrel Material:
38CrMoAl
Main Electronic Components:
Schneider(France)
CE Certification Availability:
Available
Commodity:
PVC Pelletizing Production Line
Screw:
Twin-Screw
Automation:
Automatic
Computerized:
Computerized
Plastic Processed:
PVC
Type:
PVC Pelletizer
Product Description

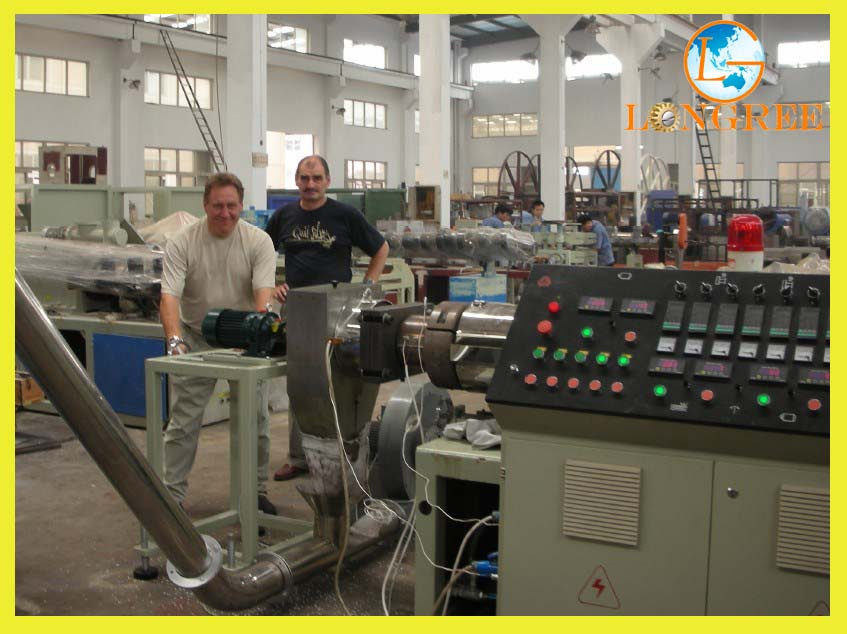

PVC Pelletizing machine is used to produce the PVC granules from PVC powder
PVC Pelletizing machine
PVC granulating line is used to produce the PVC granules from PVC powder
PVC granulating line is used to produce the PVC granules from PVC powder. For this line, we have capacity from 100kg/h to 800kg/h. Welcome to send inquiry to us. We can help you choose the different model extruder according to your requirement on capacity.
PVC powder(or add mater batch)---Plastic mixer and feeder---Conical double screw extruder--- Extrusion mould ----Cutter Pelletizer ----Air delivery system ----Vibrating sieve(optional)---- Storage Bin
Model
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Extruder
SJSZ51/105
SJSZ55/113
SJSZ65/132
SJSZ80/156
SJSZ92/188
Capacity
120 kg/hr
60-200kg/hr
250 kg/hr
350 kg/hr
800 kg/hr
Diameter of granule
Φ3
Φ3
Φ3
Φ3
Φ3
Motor power
18.5kw
30kw
37kw
55kw
110kw
L/D
14.5:1
14.6:1
14.6:1
15.25:1
17.86:1
Line length
12
14
14
16
18
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
