Product Description

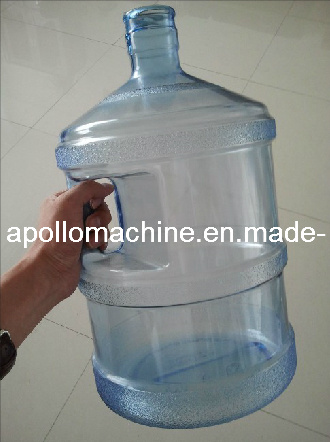

PC Bottles Making Machine (5 Gallon)
APOLLO-PC25L PC Extrusion blow molding machine / PC Extrusion blow moulding machine is designed for producing 5 gallon PC bottles, with the relatively low capital investment and output rates of up to 100 PBH, the extrusion blow molding process provides high quality PC water bottles at very attractive costs. Additionally, the extrusion blow molding process offers decisive benefits due to a virtually unlimited design freedom in terms of bottle geometry and easy incorporation of handles
For more detailed info., please feel free to contact me
Max. Product volume
5 gallon
Dry cycle
600pc/h
Screw diameter
80 mm
Screw L/D ratio
25 L/D
Screw drive power
30 KW
Screw heating capacity
16 KW
No.of heating zone
4 zones
Output of HDPE
100 KG/H
Oil pump drive power
22 KW
Clamping force
210 KN
Max.size of mold
550X650mm
Mold stroke
350-780mm
Max.die diameter
280mm
Blowing pressure
0.8mpa
Air volume
0.8 M ³ /MIN
Die heating power
5.3 KW
Die heating segments
4 zones
