Model:
FM3-2200
Type:

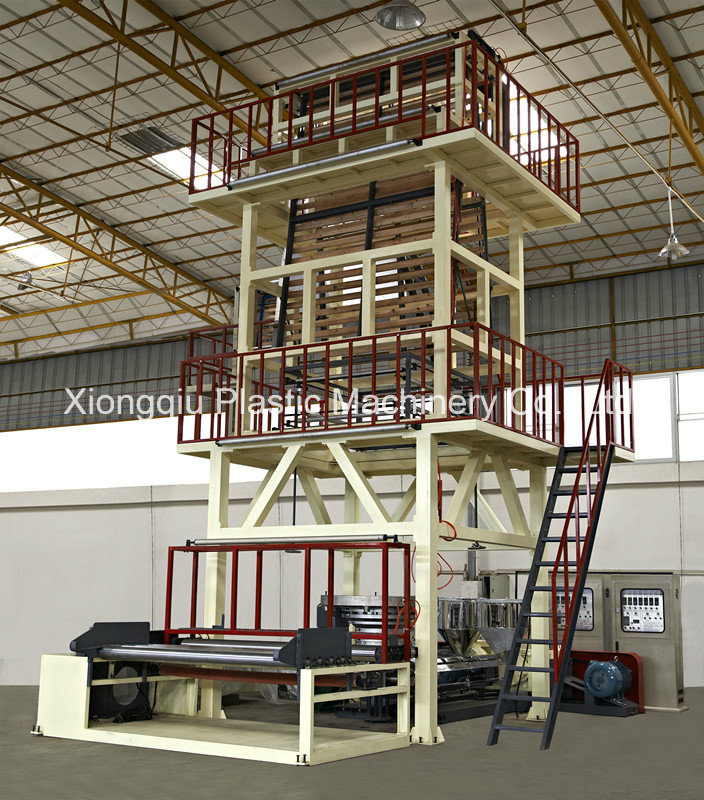

Three-Layer Co-extrusion Film Blowing Machine
Maximum Folding Width Of Film:
2200mm
Automation:
Non-Automatic
Computerized:
Non-Computerized
Machine Weight:
4T
Raw Material:
LDPE/LLDPE/HDPE
Screw Diameter:
65mm*3
Product Description
Exturder can provide a good plasticizing effect and a high quality products. Optimizedly design the die, scientific and rational design the flow, no dead ends. Mold of high precision, material flow distribut to ensure the film has good thickness tolerances. New and efficient cooling effect and bubble stability, thus ensuring a high yield and good thickness tolerances. Blown film winding unit can form to ensure the film smoothly and constant tension.
model
FM3-2200
suitable material
LDPE/LLDPE/HDPE
thickness
0.02--0.20mm
film width
2100mm
max output
180kg/h
screw diameter
Φ65mm*3
material screw and barrel
38CrMoAIA
gear box
180*3
L/D ratio
30:1
temp. controller
3 zone
barrel cooling
120w*2
driving motor
22kw*3
inverter
22kw*3
die diameter
Φ600mm
air ring diameter
Φ900mm
die structure
spiral mandrel die chrome plated surface 40Cr
temp. controller
2 zone
cooling fan
4kw
take up width
2200mm
effective take up width
2100mm
take up motor
2.2kw
take up speed
0--80m/min

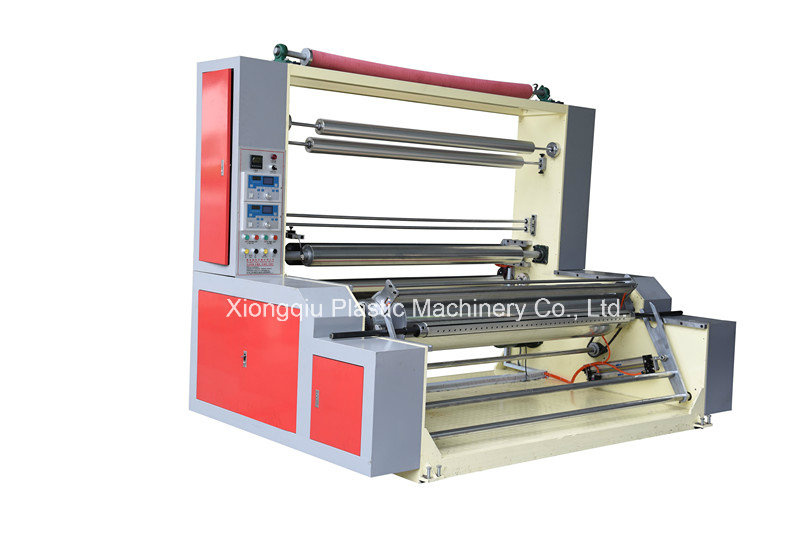

winder width
2200mm
effective winder width
2100mm
max winding diameter
400mm
winder type
single winder
winder motor power
100kgf.cm
machine size(m)
8.0*3.75*7.5
voltage
380V 50Hz 3Phase

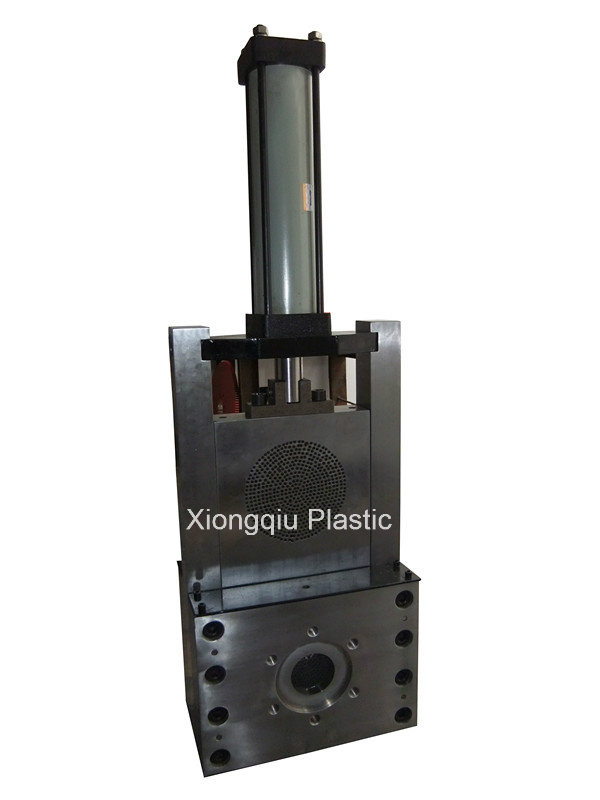

auto winder: auto-loader device: air cylinder auto fast change net
Our company supplies different kinds of film blowing machine, printing machine and bag making machine with high quality and favorable price. We're pleased to get your INQUIRY and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Xiongqiu Plastic Machinery Co., Ltd., located in Shunde District, Foshan City, Guangdong Province, established in 2001, is a manufacturing enterprise which specilizes in producing film blowing machine, film blowing machine mould and assembly line of film product equipment, etc...It manufactrues various types of LDPE, HDPE high speed single screw film blowing machine, 2 layers and 3 layers co-extrusion PE shrinkable film blowing machine and protective film blowing machine, assembly line of 2 layers and 3 layers co-extrusion liquid film (including configuration of full computer-controlled system, IBC inner cooling die head, PLC full computer-controlled automatic winder, upper-driving rotating, EPC automatic corrective system, etc. )
With over 10 years experience, our company owns excellent processing equipment and advanced management system. For market-oriented, we continuous learn advanced technology from home and abroad, and develop a new generation of plastic film blowing machinery, wihich makes us form the one-stop professional producing corollary equipment of film blowing, printing and edge cutting. Meanwhile, we can also produce products as customers required. Our products are sold all around China and exported to North America, South America, Europe, Southeast Asia, Africa, Russia, the Middle East, etc...
With the purpose of "Be the creator of the first-class product and the maintainer of good reputation", we have a batch of excellent technicians, who own rich experience in the design, manufacture, installment and maintenance of plastic machinery.
We are looking forward to cooperating with you.
Our company supplies different kinds of film blowing machine, printing machine and bag making machine with high quality and favorable price. We're pleased to get your INQUIRY and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Xiongqiu Plastic Machinery Co., Ltd., located in Shunde District, Foshan City, Guangdong Province, established in 2001, is a manufacturing enterprise which specilizes in producing film blowing machine, film blowing machine mould and assembly line of film product equipment, etc...It manufactrues various types of LDPE, HDPE high speed single screw film blowing machine, 2 layers and 3 layers co-extrusion PE shrinkable film blowing machine and protective film blowing machine, assembly line of 2 layers and 3 layers co-extrusion liquid film (including configuration of full computer-controlled system, IBC inner cooling die head, PLC full computer-controlled automatic winder, upper-driving rotating, EPC automatic corrective system, etc. )
With over 10 years experience, our company owns excellent processing equipment and advanced management system. For market-oriented, we continuous learn advanced technology from home and abroad, and develop a new generation of plastic film blowing machinery, wihich makes us form the one-stop professional producing corollary equipment of film blowing, printing and edge cutting. Meanwhile, we can also produce products as customers required. Our products are sold all around China and exported to North America, South America, Europe, Southeast Asia, Africa, Russia, the Middle East, etc...
With the purpose of "Be the creator of the first-class product and the maintainer of good reputation", we have a batch of excellent technicians, who own rich experience in the design, manufacture, installment and maintenance of plastic machinery.

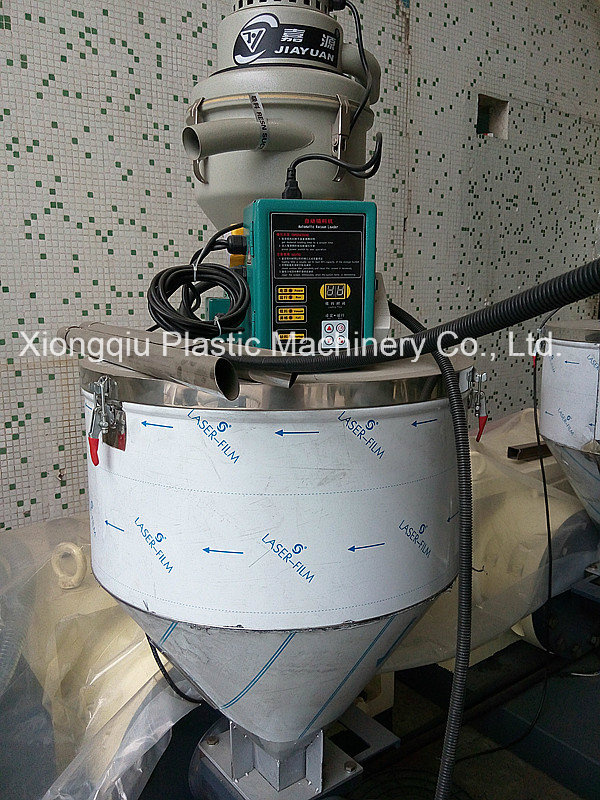

auto-loader device:
air cylinder auto fast change net
