Prod Model: |
WMK-260 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Clamp Force: |
2600kn |
Pump Motor Powder: |
22kw |
Machine Weight: |
7.1t |
Automation: |
Automatic |
Structure: |
Horizontal |
Computerized: |
Computerized |
Plastic Type: |
Thermoplastic |
Type: |
Injection Molding |
Product Description

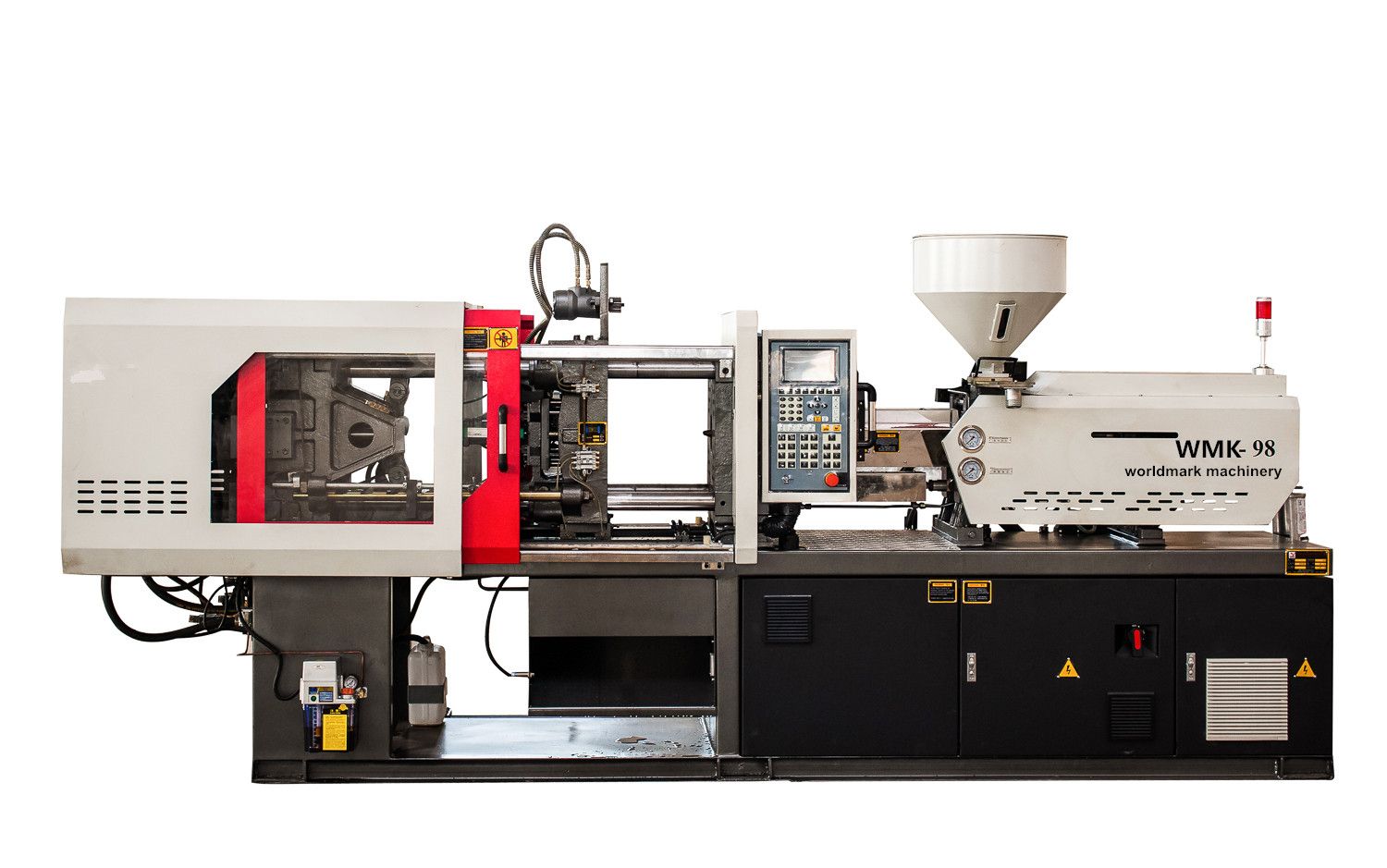

260 Ton Plastic Injection Molding Machine
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.
Some of the important features:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
- Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai
INJECTION UNIT |
|
Unit |
WMK-260 |
A |
B |
C |
Screw Diameter |
Mm |
50 |
55 |
60 |
Screw L/D Ratio |
L/D |
24 |
21.8 |
20 |
Short Size |
Cm3 |
557 |
676 |
802 |
Injection weight |
G |
507 |
610 |
730 |
Injection Rate |
g/s |
121 |
146 |
174 |
Plasticizing capacity |
g/s |
32 |
42 |
49 |
Injection Pressure |
Mpa |
223 |
184 |
155 |
Screw Speed |
Rpm |
0-190 |
CLAMPING UNIT |
Clamp Force |
KN |
2600 |
Space Between Tie Bars |
mm |
560*530 |
Toggle Stroke |
mm |
505 |
Max. Mold Height |
mm |
560 |
Min. Mold Height |
mm |
200 |
Ejector Stroke |
mm |
150 |
Ejector Tonnage |
KN |
62 |
Ejector Number |
P |
9 |
OTHERS |
Max. pump Pressure |
Mpa |
16 |
Pump motor powder |
Kw |
22 |
Heater Power |
Kw |
16 |
Machine Dimension(L*W*H) |
M |
5.3*1.5*1.95 |
Oil Tank Capacity |
L |
400 |
Machine Weight |
T |
7.1 |
