Product Description
FEATURES

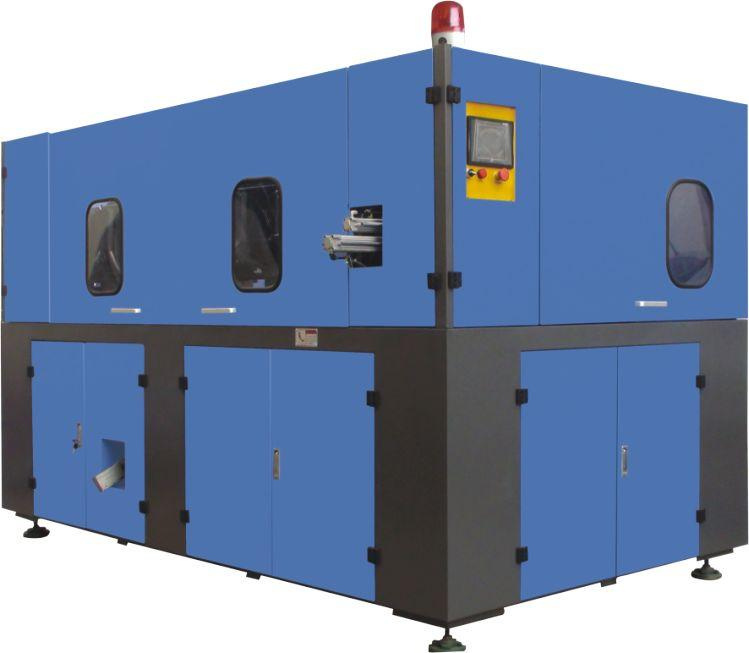

2Cavity Wide Neck Jar Bottle Blowing Machine is specialized in blowing big neck jar bottle with max neck 70-130mm, The machine is special designed with preheater and blowing unit in one machine, manually put jar preform, automatic blowing, automatic bottle take out
Technical Specification
MODEL
UNIT
ZA-2000-JAR
CONTAINER
Max. container volume
ML
2000
Max. neck diameter
mm
90
Max. container diameter
mm
120
Max. container height
mm
250
Number of cavities
2
Theoretical output
BPH
1200
ELECTRICITY SYSTEM
Installed power
Kw
36
Max. heating power
Kw
34
COMPRESSED AIR SYSTEM
Operating pressure
Mpa
0.7
Low pressure Air consuming
M 3 /min
2
Blowing pressure
Mpa
3.5
High pressure Air consuming
M 3 /min
2.0-3.0
Use mould Booster
yes
CHILLED WATER
Pressure
Mpa
0.3-0.5
Temperature
Centi degree
10-12
Flow rate
L/min
30
MACHINE
Size(L*W*H)
m
3.4x2.0x1.9
Weight
Kg
3500
Zhangjiagang Zplast Machinery Co., Ltd is founded in 1998, and have twenty years manufacturing and technology developing experience in the field of turnkey project for beverage factory building, including water factory, juice factory, carbonated drink factory and oil factory.
At present, We have been manufacturing and providing the main following lines to our customers:
1.3in1 rotary monoblock filling machine for water, carbonated drink, juice and oil
2.Glass bottle rotary 3in1 filling machine
3.Fully-automatic blow molding machine for PET bottles and PE bottles
4.Semi-automatic blow molding machine for PET bottle and gallons
5.Water treatment R.O plant
6.PET preform and cap injection machine and preform mould, cap mould
7.Small linear filling machine for beginers
8.Shrink film packing machine and carton packing machine
9.Fully-automatic shrink labeling machine and adhesive labelling machine
10.Fruit juice processing equipment
11.Beverage mixing system
12.Automatic bottle unscrambler
13.CIP washing machine and UHT
14.Inkjecter printer
We provide our customer complete service, from the beginning of preform and cap injectin, bottle blowing, to washing filling capping 3in1 machine, until film and carton packing machine.And all kinds of labelling machine, inkjecter printer
Zhangjiagang Zplast Machinery Co., Ltd have been devoted itself to the manufacturing and developing, combination of beverage turnkey project for water, fruit juice, oil etc factory with high quality and efficient dedicated service, our machinery now are working properly and continuous all around the world, and creating great wealth and value for our customers.
Growing with customers and creating value for customers has been the Faith of "ZPLAST ".Continuous improvement of our technology and high efficient service strengthen our business and friend relationship with all over world.
Our factory is located in Zhangjiagang city which is near from Shanghai with beautiful scenery and convenient transportation.
Welcoming distributors and end-users around the world to cooperate with us, we look forward to receiving your inquiries in the near fulture and we will reply with high efficiency and mostly details.
