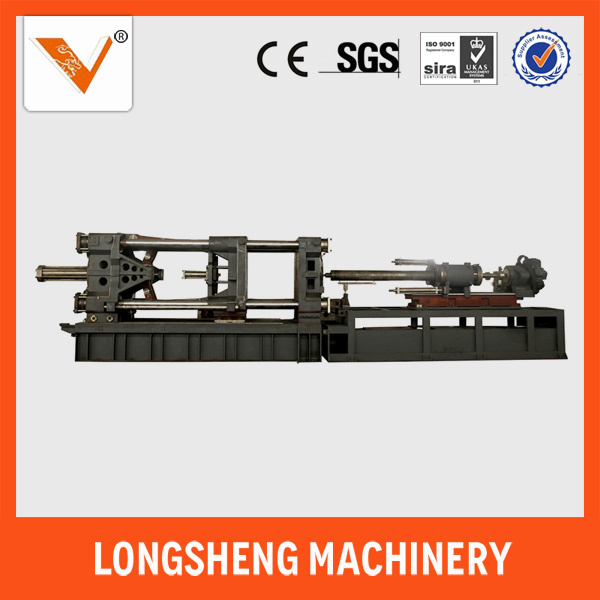

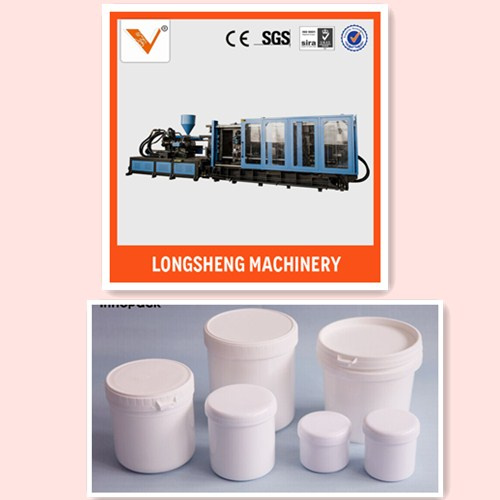

3L Paint Bucket Making Machine
Price: |
US $ 40248/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
LSF308 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Screw Diameter: |
67mm |
Injection Weigh: |
1030g |
Space Between Tie Bars: |
630*630mm |
Toggle Stroke: |
590mm |
Max. Mold Height: |
630mm |
Min. Mold Height: |
200mm |
Machine Dimension(L*W*H): |
6.15X1.56X2m |
Machine Weight: |
10.2t |
Type: |
Injection Blow Molding |
Structure: |
Horizontal |
Plastic Type: |
Thermoplastic |
Plasticizing Way: |
Screw Type |
Clamping Way: |
Hydraulic & Mechanical |
Certification: |
SGS |
Automation: |
Automatic |
Computerized: |
Computerized |
Product Description
We provide 3L paint bucket making machine, we are experienced in this area for 8years, have sufficient experience and sophisticated technology.
Some of the important features:
Clamping system: Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai
INJECTION UNIT | | Unit | LSF-308 |
A | B | C |
Screw Diameter | Mm | 60 | 65 | 70 |
Screw L/D Ratio | L/D | 21.6 | 20 | 18.6 |
Short Size | Cm3 | 811 | 952 | 1104 |
Injection weight | G | 738 | 866 | 1004 |
Injection Rate | g/s | 177 | 206 | 239 |
Plasticizing capacity | g/s | 41 | 49 | 57 |
Injection Pressure | Mpa | 193 | 164 | 142 |
Screw Speed | Rpm | 0-185 |
CLAMPING UNIT | Clamp Force | KN | 3080 |
Space Between Tie Bars | mm | 630*630 |
Toggle Stroke | mm | 590 |
Max. Mold Height | mm | 630 |
Min. Mold Height | mm | 200 |
Ejector Stroke | mm | 160 |
Ejector Tonnage | KN | 62 |
Ejector Number | P | 9 |
OTHERS | Max. pump Pressure | Mpa | 16 |
Pump motor powder | Kw | 30 |
Heater Power | Kw | 18 |
Machine Dimension(L*W*H) | M | 6.15*1.57*2 |
Machine Weight | T | 10.2 |
