Working Size:
1300*2500*1000mm
Spindle:
Italy Hsd Air-Cooled Spindle
Driving System:
Japan Servo Motor and Driver
Delivery Time:
20days
Spindle Layout:
Spindle Over
Feed Mode:
Manual
Controlling Mode:
CNC
Certification:
CE
Spindle Number:
8
Product Description

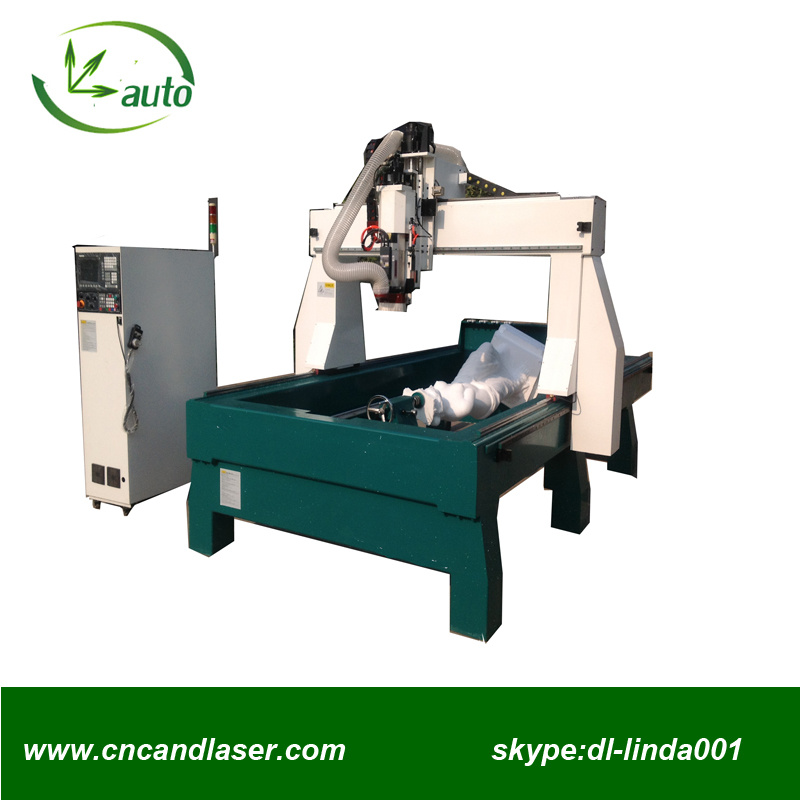

What is the details of our 4 axis engraving machine ? 1.welded lather bed of profiled steel,stabilizing treated under high temperature 2.Adopt air cooling spindle and parge power motor ensure the quickly processing for hard materials 3.400-1000mm height Z axis and movement gantry to burden heavy and thickness foam/plastic products 4.Double high Z axis drive and Gantry movement with high precision rack gear transmission, and imported square linear guide rail that ensure high accuracy, fast speed, heavy duty with long service life 5.Professional design and high quality machine parts provides this with low break down rate 6.Diamond cutting tools are very durable for cutting,perfectly meet your business requirements. 7.All dust-proof and water-prof design 8.Those items are very suitable for making deep foam,plastic,stone,wood mould works,surely also can widely used for flat material such as flat stone,wood , aluminum,copper,PVC and other hard and soft material. (Other size can be customized according to specific requirements). Option Spindle: 3KW/5.5KW water cooling; 1.5KW/2.2KW/3KW/6KW Air cooling. Option Parts : Rotary Axis, Multi-Spindles,ATC system(auto tool changer). What is the Specifications of our 4 axis sculpture carving machine ?
X,Y,Z,working area
1500*3000*500mm(Other size can be customized)
Lathe bed structure
T-extrusion,Thick Steel frame
Table surface
Aluminium T-slot with clamps
X structure
Rack and pinion, HIWIN linear square rail
Y structure
Rack and pinion, HIWIN linear square rail
Z structure
Ball screw, HIWIN linear square rail
Resolution
±0.02mm
Reposition accuracy
±0.05mm
Max. rapid
0-60000mm/min
Max. working speed
0-30000mm/min
Spindle power
9kw italy HSD air cooling ATC spindle(option: 6kw air cooling)
Tool magazine
Linear type auto tool changer system,8 tools
Spindle speed
0-24000rpm
Working mode
Japan YASKAWA servo motor and driver
Working voltage
3 phase, AC380V /220V, 50HZ/60Hz
Command code
G code(*uoo,*nc,*mmg, *plt)
Operating system
4 axis WEIHONG control system
Collet
ER32
Software
PowerMill
Running circumustance
Temperature: 0°C~45°C
