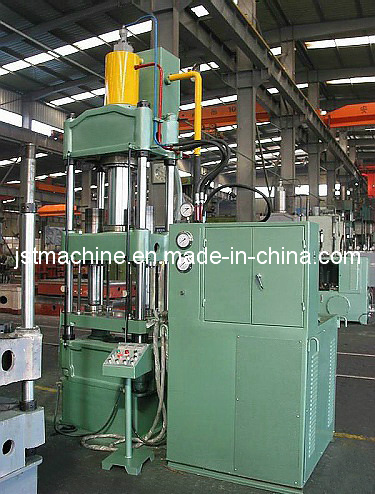

Application: The series is Double-action hydraulic press mainly used for forming metal sheet like drawing and bending, etc., and also can be available for general purposes.
The press with buffer system can carry out blanking process, so it is well appreciated by the industries like automobile, motorcycle, household appliances and metal-ware.
The Double-action press has four-column type and frame type with capacities from 63 to 3000 ton.

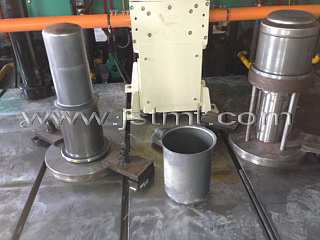

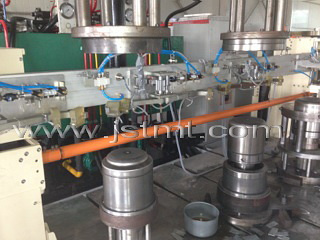

Sample for Auto Oil Filters
Parameters
Unit
YQ28 -100/140
Nominal Force
KN
1400
Max Pressure of liquid
MPA
25
Max Drawing Force
KN
1000
Blank Holder Pressure
KN
2x200
Ejection Force
KN
190
Central Hole size of Blank-holders slide
mm
330
Max operating Height of drawing slide
mm
1100
Operating operating Height of Blank-Holder slide
mm
550
Max Stroke of Drawing Slide
mm
600
Max Stroke of blank-holder slide
mm
300
Ejection cylinder stroke
mm
200
Speed of Drawing slide
Descent
mm/s
120
Pressing
mm/s
10-14
Return
mm/s~
120
Size of drawing slide
L-R
mm
720
F-B
mm
620
Size of Blank-holder Slide
L-R
mm
720
F-B
mm
620
Effective table Size
L-R
mm
720
B-F
mm
620
Motor Power
KW
7.5
