Product Description
Product description

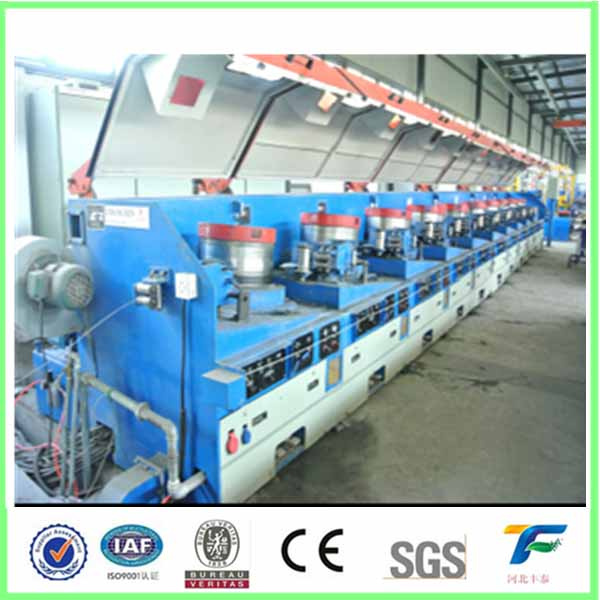

Wire drawing machines, derived by gears, are capable of drawing rod wires of high-medium-,low-carbon steel, copper, aluminum, stainless steel wire act. And applicable to manufacturing industries such as wood screw, nail,
conducting wire rope for electrician use, spring etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in efficiency.
Instruction
Our wire drawing machines can be used for material of steel, aluminum, brass and others. It is featured as energy saving, high efficient, easy maintenance and low cost.
Quick Details
Condition: New
Inlet Diameter: 2.5-10mm
Outlet Diameter: 0.3-2.8mm
Place of Origin: Hebei, China (Mainland)
Brand Name: fengtai
Model Number: DLW
Voltage: accoding to customer's requirement
Certification: ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
capacity: 294m/m
Specifications
1. pulley wire drawing machine
2.max wire diameter:6.5mm
3.max drawing speed:16m/s
4.rack installation tension
5.factory
Packaging & Delivery
Packaging Details: | exporting standard package |
|---|
| Delivery Detail: | 30 days after 30% payment |
|---|
Technical parameter:
| NO. | Spec.( Φmm) | draft | Max. inlet( Φmm) | Min. outlet( Φ mm) | Motor power | speed |
| 1 | 250 | 10-12 | 2.5 | 0.3 | 2.2-7.5kw | 20m/s |
| 2 | 280 | 10-12 | 2.5 | 0.3 | 2.2-7.5kw | 20m/s |
| 3 | 300 | 10-12 | 3.5 | 0.45 | 5.5-11kw | 20m/s |
| 4 | 400 | 6-10 | 4.5 | 0.75 | 7.5-15kw | 18m/s |
| 5 | 450 | 6-10 | 4.6 | 0.8 | 11-15kw | 18m/s |
| 6 | 500 | 6-12 | 5.5 | 1.2 | 22-30kw | 12m/s |
| 7 | 560 | 6-12 | 6.5 | 1.4 | 22-37kw | 12m/s |
| 8 | 600 | 6-12 | 6.5 | 2.2 | 22-37kw | 12m/s |
| 9 | 800 | 6-10 | 10 | 2.8 | 37-75kw | 12m/s |
Our Services
1. Guarantee : 12 months after commissioning.
2. Installation : Engineers available to service machinery overseas.
Wherever you are, fengtai has the experience, knowledge, and skills to meet your needs and satisfy your requirements.
