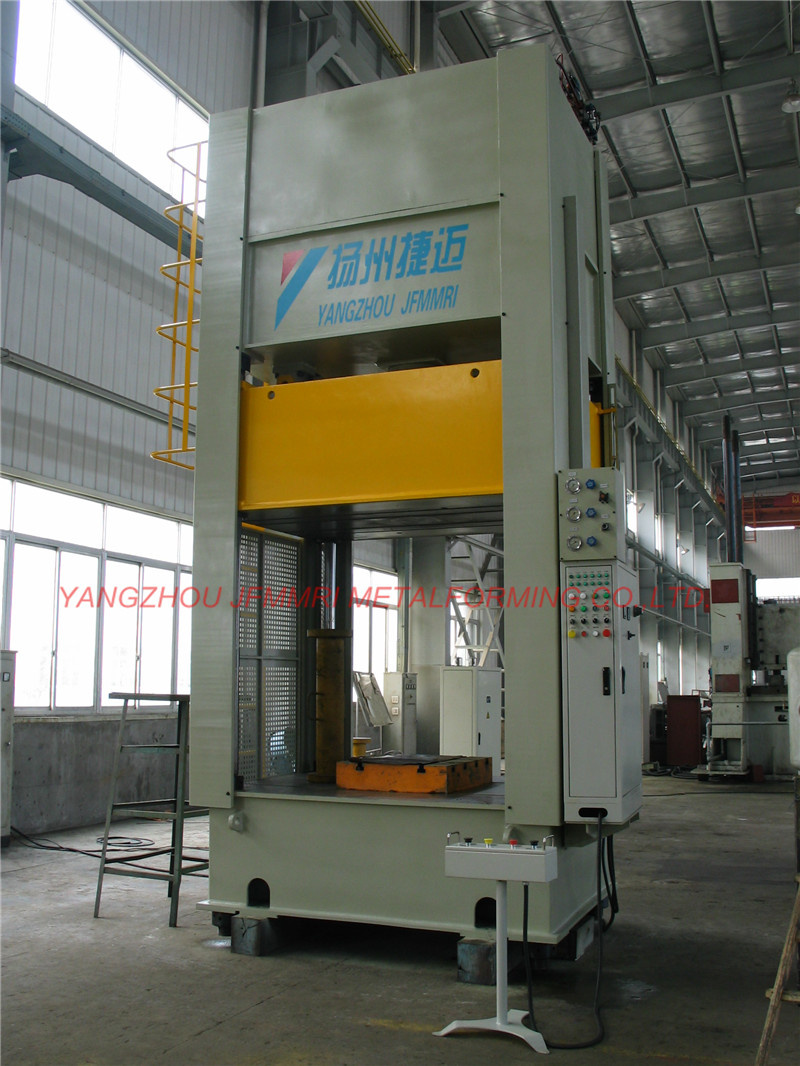

400t Mechanical Press Machine with ISO9001

Name: 400t Mechanical Press Machine with ISO9001
Brand: themouldinfo
SKU: 762733205
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 100000-1000000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Yangzhou JFMMRI Metalforming Machinery Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Punching,Forming,Drawing,Staightening,Cutting
Forging Forming Method:	Mold Forging

Product Description

Application range Main structure features Optional accessories:
Fit for steel plates of the punching,forming,drawing,straightening,cutting and other processes;
Welded steel frame structure, body stiffness; Eight-side long rectangle guides,high precision ;
Preferred international brands components, to ensure high product reliability;
Moving-table/quick die change, photoelectric protector ,NC feeding system and other optional accessories are available for the press according to the user's need

Items		Unit	JG31-125	JG31-125	JG31-160	JG31-160	JG31-200	JG31-250	JG31-250	JG31-250
Nominal capacity		KN	1250	1250	1600	1600	2000	2500	2500	2500
Nominal pressure stroke		mm	5	5	8	8	10	10	10	12.5
Strokes of slide		mm	150	250	160	160	300	315	315	300
Strokes per minute		spm	42	20	32	32	20	20	20	20
Max. die height		mm	350	550	370	750	600	500	500	900
Shut height adjustment		mm	100	100	140	80	100	200	200	250
( L-R× F-B)Size of table		mm	700×650	1050×950	800×800	1400×1200	1200×1000	1000×950	1000×950	1200×1100
( L-R× F-B)Bottom size of slide		mm	650×550	950×850	800×700	1400×1200	1200×1000	980×850	980×850	1200×1000
Distance between gibs		mm	580	950	710	1400	1080	990	860	1220
Cushion	cushion force	KN	/	75	160/45	/	70	/	250	250
	Number		/	1	1	/	1	/	1	1
	Stroke	mm	/	100	100	/	100	/	150	150
Overall dimensions	L-R	mm	2230	2640	2270	3010	2900	2680	2600	2860
	F-B	mm	1728	2350	1865	2615	2300	2270	2365	2415
	Height above floor	mm	4650	5550	4950	5500	6550	5650	6270	7115
Air pressure		MPa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power of Main Motor		KW	11	11	15	15	30	22	22	22
Total weight		T	15	20	18	28.5	27	30	35	38

Items		Unit	JG31-250	JG31-250	JG31-315	JG31-315	JG31-315	JG31-315	JG31-315T	JG31-400
Nominal capacity		KN	2500	2500	3150	3150	3150	3150	3150	4000
Nominal pressure stroke		mm	10	5	6	9	13	10	8	9
Strokes of slide		mm	315	60	220	300	315	315	500	300
Strokes per minute		spm	20~28	45~70	30	20~35	20	20	10~15	15~30
Max. die height		mm	500	450	400	650	500	500	500	700
Shut height adjustment		mm	200	100	100	150	210	200	250	150
( L-R× F-B)Size of table		mm	1240× 1200	1100× 900	1050× 980	1100× 1000	1400× 1200	1100× 1100	1400× 1200	1100× 1000
( L-R× F-B)Bottom size of slide		mm	1230× 1000	1050× 850	1000× 900	1100× 1000	1400× 1200	1070× 960	1400× 1200	1100× 1000
Distance between gibs		mm	1240	930	890	1130	1410	1080	1420	1130
Cushion	cushion force	KN	/	/	70	/	76/500	/	/	/
	Number		/	/	1	/	1	/	/	/
	Stroke	mm	/	/	100	/	160	/	/	/
Overall dimensions	L-R	mm	2900	2600	2900	2960	3280	2850	3570	2950
	F-B	mm	2350	3150	2750	2200	2700	2680	3125	2700
	Height above floor	mm	5600	5450	6250	5900	6160	6200	7020	6300
Air pressure		MPa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power of Main Motor		KW	30	30	30	30	30	30	45	37
Total weight		T	32	30	44	40	45	42	48	43

Items			JG31-400	JG31-400	JG31-400M	JG31-400H	JG31-400	JG31-500	JG31-500	JL31-500
Nominal capacity		KN	4000	4000	4000	4000	4000	5000	5000	5000
Nominal pressure stroke		mm	13	13	6	6	16	13	13	13
Strokes of slide		mm	400	400	250	100	315	250	350	300
Strokes per minute		spm	20	20	22-28	60-80	15	20	10-25	20
Max. die height		mm	550	650	500	550	550	550	700	700
Shut height adjustment		mm	250	300	200	100	250	250	150	250
( L-R× F-B)Size of table		mm	1240× 1200	1500× 1400	1700× 1500	1400× 1400	1250× 1250	1240× 1200	1300× 1100	1500× 1400
( L-R× F-B)Bottom size of slide		mm	1230× 1000	1490× 1300	1675× 1400	1200× 1200	1250× 1150	1230× 1000	1300× 1100	1490× 1300
Distance between gibs		mm	1100	1510	1720	1290	1330	1230	1340	1500
Cushion	cushion force	KN	400	400	/	/	200	/	/	200
	Number		1	1	/	/	1	/	/	1
	Stroke	mm	200	200	/	/	150	/	/	150
Overall dimensions	L-R	mm	3020	3600	4920	2600	2800	3050	3200	4580
	F-B	mm	2745	3200	2695	2340	2300	2725	2600	3005
	Height above floor	mm	6360	7000	5950	4950	6700	6470	6500	6005
Air pressure		MPa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power of Main Motor		KW	45	45	37	55	55	45	45	45
Total weight		T	45	52	55	45	60	55	58	60

Items			JG31-500	JG31-500	JG31-630M	JG31-630	JL31-630	JG31-630	JL31-800	JG31-800
Nominal capacity		KN	5000	5000	6300	6300	6300	6300	8000	8000
Nominal pressure stroke		mm	13	16	13	13	13	13	13	13
Strokes of slide		mm	400	400	250	350	400	400	300	500
Strokes per minute		spm	16	12	35	15-20	16	12	12-20	10
Max. die height		mm	600	550	530	700	800	750	600	800
Shut height adjustment		mm	250	250	160	150	300	300	200	315
( L-R× F-B)Size of table		mm	1240× 1200	1400× 1400	1060× 920	1300× 1200	1750× 1500	1700× 1500	1400× 1200	1900× 1700
( L-R× F-B)Bottom size of slide		mm	1230× 1100	1300× 1300	920× 920	1300× 1200	1680× 1400	1680× 1400	1400× 1200	1800× 1600
Distance between gibs		mm	1330	1480	1110	1340	1520	1720	1530	1830
Cushion	cushion force	KN	400	250	/	/	/	500	350	800
	Number		1	1	/	/	/	1	1	1
	Stroke	mm	200	200	/	/	/	200	150	0-250
Overall dimensions	L-R	mm	3760	4745	3450	4500	4655	3950	4685	4350
	F-B	mm	4100	3345	2850	3050	3220	3350	3645	3270
	Height above floor	mm	7030	7370	7000	7500	7735	7870	7750	8300
Air pressure		MPa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power of Main Motor		KW	55	45	55	55	55	75	75	75
Total weight		T	70	95	60	80	92	98	110	125

Items			JG31-800	JL31-1000	JG31-1000	JG31-1250	JF31-1250	JG31-1600	JF31-1600	JF31-2000
Nominal capacity		KN	8000	10000	10000	12500	12500	16000	16000	20000
Nominal pressure stroke		mm	13	13	13	13	13	13	13	13
Strokes of slide		mm	500	350	350	500	500	500	350	500
Strokes per minute		spm	10	12	12	10	10	10	12-16	9
Max. die height		mm	800	1100	700	900	950	1400	950	800
Shut height adjustment		mm	315	250	250	300	300	500	300	300
( L-R× F-B)Size of table		mm	2100× 1600	1800× 1400	1800× 1600	1800× 1600	1800× 1600	1800× 1600	1800× 1600	1920× 1800
( L-R× F-B)Bottom size of slide		mm	2000× 1500	1800× 1400	1800× 1600	1800× 1600	1800× 1600	1800× 1600	1800× 1600	1800× 1800
Distance between gibs		mm	2030	1830	1860	1830	1880	1910	1820	2030
Cushion	cushion force	KN	800	100	/	/	500	700	700	1500
	Number		1	1	/	/	1	1	1	1
	Stroke	mm	0-250	150	/	/	250	250	0-175	250
Overall dimensions	L-R	mm	5800	5800	4400	6200	6500	6600	5850	6530
	F-B	mm	3800	3500	3650	4800	5500	4800	5200	6120
	Height above floor	mm	8500	8800	8900	9200	9400	9980	9750	9550
Air pressure		MPa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power of Main Motor		KW	75	90	90	110	110	132	200	132
Total weight		T	145	180	190	210	235	280	295	310

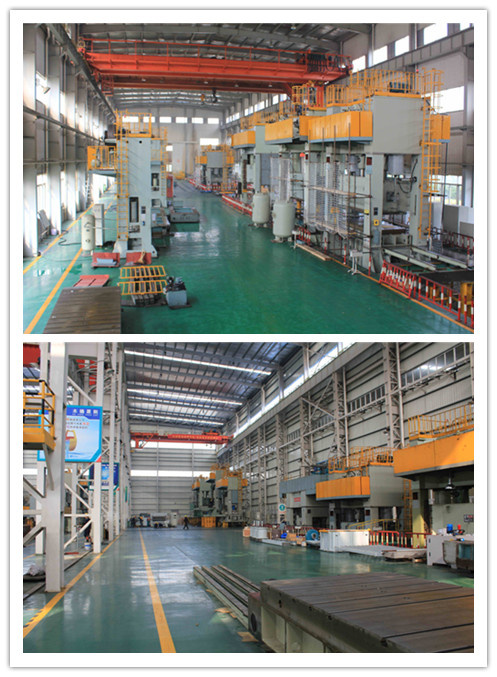

workshop:

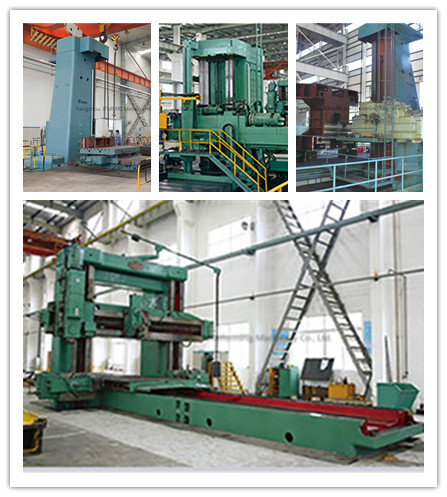

processing equipments:

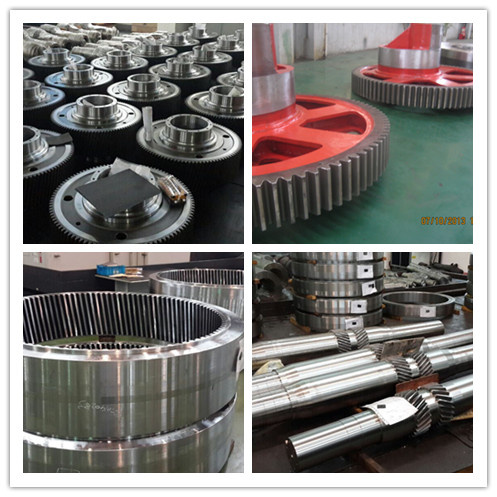

Main spare parts:

FAQ

1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question : Why choose cooperate with us ?
Answer :  -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;

3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.

4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

5. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.

Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.

Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.

Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.

Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
