Dimension:
6.3*3.9*2.7m
Type:
Extrusion Blow Molding Machine
Raw Material:
HDPE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008

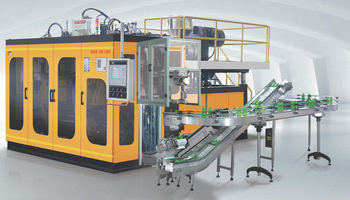

Product Description
Double station with HIGH-SPEED,Advanced technology from America and European countries.Dry cycle storke is 700mm, doulbe station only takes 3.8s. 10 heads,multi-layers,Fully automatic. For use in packaging of 200ml-5000ml washing,cosmetics,food and petroleum containers.
Specifications
unit
DHD-QK100
Material
PE,PP
Max container capacity
L
5+5
Number of die
set
1,2,3,4,6,8
Total weight
Ton
20
Machine dimension(L×W×H)
m
6.3x3.9x2.7
Accumulator head
unit
DHD-QK100
Number of die heating
zone
12
Power of die heating
kw
10-19.69
Max die-pin diameter
mm
140
Center distance of twin-die
mm
280
Center distance of tri-die
mm
190
Center distance of four-die
mm
140
Center distance of six-die
mm
95
Center distance of eight-die
mm
65
Clamping unit
unit
DHD-QK100
Clamping force
Kn
190
Platen opening stroke
mm
210-430
Platen size
mm
410X600
Max mould size(W×H)
mm
410X690
Mould thickness
mm
210-380
Extruder unit
unit
DHD-QK100
Screw diameter
mm
100
Screw L/D ratio
L/D
25:1
Extruding volume
Kg/hr
200-280
Number of heating zone
Zone
4
Extruder heating power
Kw
26.4
Extruder driving power
kw
55
Power
unit
DHD-QK100
Oil pump drive power
Kw
55
Fan power for screw
Kw
0.6
Total power
Kw
157
Air pressure
Mpa
0.8
Air consumption
M³/min
2-3
Average energy consumption
Kw
64
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
