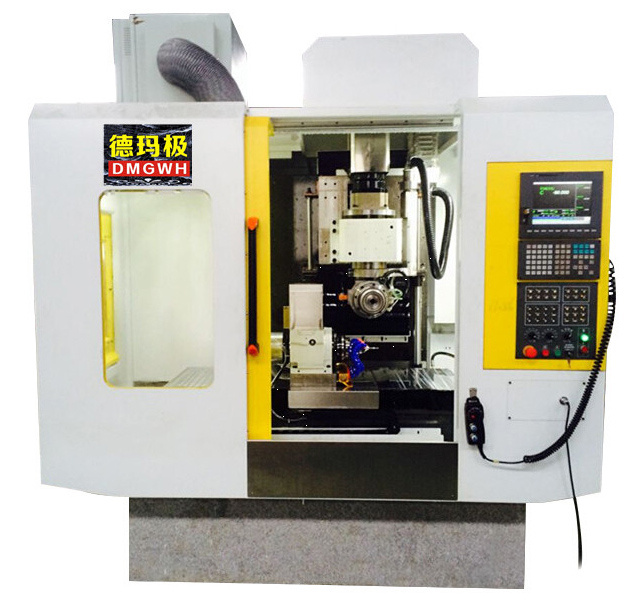

5 axis metal milling machine
machine
Range of workpiece | the Max diameter of champing workpiece | 20mm |
the Min diameter of champing workpiece | 3mm |
the Max length of champing workpiece | 200 mm |
The max diameter of manual BT40 clamp workpiece | 32mm |
diameter of granding | 0.5 mm-20 mm |
lathe bed | natural granite (hardness) 7.5 | 1600*1700*500(can be optional with imported granite: Indian red or black gold sand) |
X.Y AXIS Dragging plate | XY :natural granite (hardness) 7.5 | |
working size | X axis | 300 mm |
Y axis | 250mm |
Z axis | 150 mm |
accuracy of Positioning | 0.001 mm |
repeat accuracy of Positioning | 0.001 mm |
Rapid traverse (X/Y/Z) | 15m/min |
Workpiece clamp knife A axis | axis A rotation Angle is 360 ° | 360° |
Start the clamping load/minimum pressure | 4kg/cm² |
Minimum degree accuracy 0.001 ° | 0.001° |
spindke rotation B axis | B axis rotation Angle 270 ° | 270° |
| Minimum degree accuracy 0.001 ° | 0.001° |
(double) grinding wheel spindle | power of spindle | 11kw |
| speed of grinding wheel spindle | 3000-12000rpm |
| max diameter of grinding wheel | 80mm-150mm |
| Gear wheel number | 1-6 |
motor and draver | X axis | 1.3kw |
(Japan yaskawa) | Y axis | 1.3kw |
| Z axis | 1.3kw |
| A axis | 0.75kw |
| B axis | 0.75kw |
| cooling motor | 2HP |
| cycle motor | 1HP |
| Automatic lubrication motor | 1/8HP |
linear guide (P4) | X axis 35 square linear guide with heavy load | 1000MM,2pcs |
(taiwan PMI) | Y axis 35 square linear guide with heavy load | 900MM,2pcs |
| Z axis 30square linear guide with heavy load | 700MM |
| high precision worm gear shaft for A axis | 200 |
| Bearing reducer HD65 for B axis | HD65 |
Oil mist collector | | 1 set |
The spindle water-cooled pump | | 1 set |
controller | SYNTEC controller of Taiwan new generation system, ISO standard G code programming, grinding self-developed software |
size of machine | capacity of machine | 18.0KW |
volume of cooling tank | 400L |
outsize of machine | width 2350×1650×2100mm |
gross weight | 6000kg |
processing object | Processing content standard milling cutter, drill, reamer, carpentry knives, carving knife series, a series of high speed steel, and other kinds of standards Processing hard alloy, high speed steel material, etc |
processing material | Hard alloy, high speed steel etc |
five axis tool grinder milling machine with high precision, precision grade AA, 15 kw strong power , the most suitable for processing 3.0-20 mm alloy milling cutter. Minimum 0.6 MM can be processed, maximum processing 32 MM. With the probe can be rapid processing of non-standard cutting tools.
X6 five-axis spindle rotation tool grinding machine performance
1, the whole galaxy black granite base, high rigidity, low vibration, strong load guide rail, to ensure easy heavy grinding.
2, direct drive motorized spindle, the dynamic balance is wonderful, 15 kw power strong, easily grinding 20 mm alloy cutting tools.
3, with the domestic only can clamping 40 MM handle high precision power dividing head, pneumatic, manual BT50 handle unique clamping dual-use, oscillating precision can reach 0.002 MM.
4, the double probe design idea, grinding wheel and the cutting tool can automatically probe, software debugging tool can be finished in 15 minutes.
5, can accurate rapid processing flat knife, cutter, ladder cutting tools, woodworking tools, ball head, round nose cutter, drill, molding tool knife mold pieces and complex, quality can compare with imported grinding machine.
working sample
