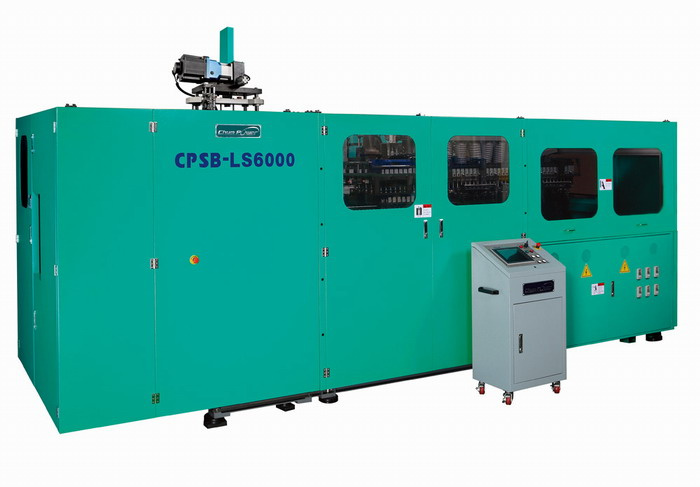

Home Mould Products 5 Gallon Water Bottle Pet Stretch Blow Moulding Machine - All Electric & Fully Automatic

5 Gallon Water Bottle Pet Stretch Blow Moulding Machine - All Electric & Fully Automatic

5 Gallon Water Bottle Pet Stretch Blow Moulding Machine - All Electric & Fully Automatic
Price: Negotiable/Roll
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Contact Supplier
Chumpower Machinery Corp.
Showroom Product Company Profile
Prod Model: CPSB-L1G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L Series: 1 Cavity
Application: Water

Product Description

FLULLY ELECTRIC AND CONTINUOUS HEATING SYSTEM Machine size 5, 800 x 2, 020 x 3, 500 mm (L x W x H) Machine weight 7, 000 kg 1) MOLDING SYSTEM Clamping force 64000 kg Clamping stroke 380 mm Stretching stroke 550 mm Bottom Stroke 50 mm Number of cavity 1 2) CONTAINER Max. Container volume 12-20 liter Max. Neck diameter 56 mm Max. Preform height 450 mm Max. Container diameter 340 mm Max. Container height 550 mm 3) ELECTRICAL SYSTEM Number of oven 4 units Number of lamp 72 PC Total installed power 120 KW Heating power 108 KW Power supply 400V+6%-10% 50/60Hz Estimated power consumption 30 KW (1500ml) 4) AIR SYSTEM Operating pressure 7 kg/cm2 Air consuming 2, 000 L/min Blowing pressure 35 kg/cm2 Air consuming 6, 700 L/min 5) CHILLED WATER Operation Pressure 4 kg/cm2 Temperature 10-12 C Consuming 22682 kcal/hr Flow rate 100 ltr/min 6) COOLING WATER Operation pressure 4 kg/cm2 Temperature 25 C Consuming 78000 kcal/hr Flow rate 260 ltr/min 7) PRODUCTIVITY Theory output 250-500 BPH (20 L round shape mineral water bottle)
Specification
L Series     UNIT CPSB-L1G   CPSB-L2G  CPSB-LS2G  CPSB-LL4 CPSB-LS6 CPSB-LS6H CPSB-LSS8 CPSB-LS8 CPSB-LS9 CPSB-LSS12 CPSB-LSS12H CPSB-LS12 CPSB-LS14 CPSB-LSS16

MOLDING		   Clamping force kgf 64000 128000 64000 72000 64000 64000 64000 72000 72000 72000 72000 140000 140000 140000
  Clamping stroke mm 380 320 280 205 130 130 110 130 110 110 110 130 130 130
  Stretching stroke mm 500 500 480 350 350 350 350 350 350 350 350 360 350 350
  Bottom stroke mm 50 50 50 50 50 50 50 50 50 50 50 50 50 50
  Cavity pitch mm   320 280 240 114.3 114.3 76.2 120 106 80 80 120 106 80
  Number of cavitys cavities 1 2 2 4 6 6 8 8 9 12 12 12 14 16
  Spindle chain pitch mm 90 90 90 76 50 50 38 50 38 38 38 50 38 38

CONTAINER		   Max. capacity ltr 12-20 12-20 4-12 6 2 1 0.6 2 1.5 0.6 0.6 2 1.5 0.6
  Neck Int-diameter mm MAX,72 MAX,72 MAX,72 MAX,55 MAX,38 MAX,38 MAX 30/25 MAX,38 MAX,30/25 MAX,30/25 MAX,30/25 MAX,38 MAX,30/25 MAX,30/25
  Neck Height mm
  Support-ring Dia mm
  Preform height mm 450 450 350 50-150 50-150 50-150 50-100 50-150 50-150 50-100 50-100 50-150 50-150 50-100
  Max. diameter mm 340 290 240 180 105 85 68 110 95 70 70 110 95 70
  Max. height mm 500 500 450 350 350 350 240 350 350 240 240 350 350 350
          THEORETICAL OUTPUT B.P.H 250~500 500~1000 1800 4000(5L) 10200(0.6L) 6000(0.5L) 13600(0.6L) 12000(0.6L) 13500(0.6L) 18000(0.6L) 11800(0.5L) 18000(0.6L) 21000(0.6L) 24000(0.6L)

ELECTRICAL SYSTEM		   number of oven UNITS 6 8 6 8 6 6 6 8 8 8 8 10 10 10
  number of lamp pcs 96 128 96 80 54 54 36 72 72 48 48 90 90 60
  Total installed power kw 110 142 110 224 152 154 109 202 202 146 146 259.7 262 155
  Heating power kw 96 109 96 204 138 138 93 184 184 124 124 230 240 140
  Power supply   3P4W 400V+6%-10% 50/60Hz                     3P4W 400V+6%-10% 50/60Hz 3P4W 400V+6%-10% 50/60Hz 3P4W 400V+6%-10% 50/60Hz
  Power consuming kwh       102(5L) 38(0.6L) 34(0.6) 39(0.6L) 44.2(0.6L) 38(0.6L) 50.4(0.6L) 67.6(0.5L) 66.3(0.6L) 67.2(0.6L) 67.2(0.6L)

AIR SYSTEM		   Operating pressure kgf/cm 2 7 7 7 7 7 7 7 7 7 7 7 7 7 7
  Air consuming L/min 1000 2000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
  Blowing pressure kgf/cm 2 35 35 35 35 35 35 35 35 35 35 35 35 35 35
  Air consuming L/min 6700 7200(5L) 13200(5L) 13300(5L) 10900(0.6L) 14000(0.5L) 9500(0.6L) 13200(0.6L) 14800(0.6L) 13700(0.6L) 28500(0.5L) 18400(0.6L) 23150(0.6L) 16800(0.6L)
CHILLER WATER
( )
(CONTROLLER)		   Operating pressure kgf/cm 2 4 4 4 4 4   4 4 4 4   4 4 4
  Temperature °C 10-12 10-12 10-12 10-12 10-12 60-180 10-12 10-12 10-12 10-12 60-180 10-12 10-12 10-12
  Consuming kcal/hr 22682 22682 22682 30242 33048   33048 30242 38880 30242   38880 38880 38880
  Flow rate L/min 100 100 100 100 160   160 160 160 160   160 160 160
  power kw   4       24         48
  control     25       18         36

COOLING WATER		   Operating pressure kgf/cm 2 4 78000 4 4 4 4 4 4 4 4 4 4 4 4
  Temperature °C 25 260 25 25 25 25 25 25 25 25 25 25 25 25
  Consuming kcal/hr 78000   78000 104000 78000 78000 78000 104000 104000 104000 104000 130000 130000 130000
  Flow rate L/min 260   260 260 260 260 260 260 260 260 260 260 260 260

MACHINE		   Size(LxWxH) mm 5000x4000x3700 5000x4000x3700 5000x4000x3700 7000x2000x3500 5800x2000x3500 5800x2000x3500 5800x2000x3500 7000x2000x3500 7000x2020x3500 7000x2000x3500 7000x2000x3500 9500x4000x3500 9900x2000x4200 9700x2000x4200
  Weight kg 12000 12000 12000 12000 9000 9000 9000 12000 12000 12000 12000 18000 20000 20000
  1. If mold thickness is less than 7mm, it is required to be made in stainless steel.
2. The actual output depends on the preform quality and bottle shape.
3. Specification are subject to change without notice.










Chum Power Machinery Corp. Was Founded in 1981 in Taichung Hsien, Taiwan, The Total Area Is 19, 000 Square Meters. We Are The First Company Who Built Professional Two-Stage Pet Stretch Blow Molding Machine in Taiwan. We are an professional manufacturer of Pet stretch Blow Molding Machinery, PET Preform and Bottle Molds, Pet Bottling Turnkey, etc.

We also specialized in Drill Chucks which over than Twenty-Eight Years Experience. Through These Years, We Keep Improving Our Product Lines to Meet The Market Need. Our Competitive Products Are Drill Chucks, Tool Holders, Spindle Accessories, Vdi Systems and Capto Systems.

Furthermore, We Expanded Our Business Into Mainland China and Located Another Factory in Putian, Fujian. Quinko (Fujian) Machinery Co., Ltd. Established in May 1993 and Specialized in Manufacturing Pet Bottling Turnkey. We Could Offer Not Only Complete Package Service From Preform, Bottle Shape Design and Equipment Suggestion, But Also Injection and Formation Technique Transfer to Customers to Invest The Minimum Capitalized Cost in Equipment and Develop The Maximum Economic Benefits.

Till Now, We Had Exported Our Machinery Over 60 Countries and Been Continuing to Enlarge The Scope. We Have Earned a Superior Reputation Both in Domestic and Foreign Customers for Many Years.
Chum Power Machinery Corp. Was Founded in 1981 in Taichung Hsien, Taiwan, The Total Area Is 19, 000 Square Meters. We Are The First Company Who Built Professional Two-Stage Pet Stretch Blow Molding Machine in Taiwan. We are an professional manufacturer of Pet stretch Blow Molding Machinery, PET Preform and Bottle Molds, Pet Bottling Turnkey, etc.

We also specialized in Drill Chucks which over than Twenty-Eight Years Experience. Through These Years, We Keep Improving Our Product Lines to Meet The Market Need. Our Competitive Products Are Drill Chucks, Tool Holders, Spindle Accessories, Vdi Systems and Capto Systems.

Furthermore, We Expanded Our Business Into Mainland China and Located Another Factory in Putian, Fujian. Quinko (Fujian) Machinery Co., Ltd. Established in May 1993 and Specialized in Manufacturing Pet Bottling Turnkey. We Could Offer Not Only Complete Package Service From Preform, Bottle Shape Design and Equipment Suggestion, But Also Injection and Formation Technique Transfer to Customers to Invest The Minimum Capitalized Cost in Equipment and Develop The Maximum Economic Benefits.

Till Now, We Had Exported Our Machinery Over 60 Countries and Been Continuing to Enlarge The Scope. We Have Earned a Superior Reputation Both in Domestic and Foreign Customers for Many Years.
