Raw Material:
HDPE
Product Description

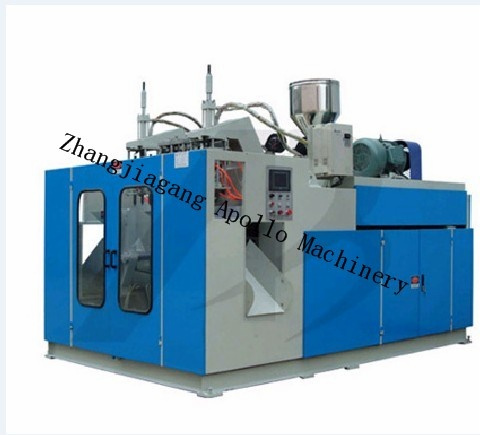

Auto bottle blow moulding machine
ABLB65 series full automatic bottle blow molding machine with a auto-deflashing unit. It helps you save labor cost at 200%. A wide variety of materials can be used for this machine, which specialize in making various oil barrels and related bottles not over 5 L. The clamping system is a high-precision single-station linear guide, extrusion system use a hard gear and inverter imported from Japan. The die head system adopt central-incoming extrusion die made of special steel to ensure the quality of the products. Imported hydraulic valve and seal valve with proportional control valve. Control system consist of PLC and human machine interface imported from Japan.
Max. Product volume
5 liters
Dry cycle
1000pc/h
Screw diameter
65mm
Screw L/D ratio
24 L/D
Screw drive power
18.5 KW
Screw heating capacity
5-6 KW
No.of heating zone
3 zones
Output of HDPE
80 KG/H
Oil pump drive power
7.5 KW
Clamping force
65 KN
Max.size of mold
330X370mm
Mold stroke
148-568mm
Max.die diameter
160mm
Blowing pressure
0.6mpa
Air volume
0.6 M³/MIN
Cooling water pressure
0.3mpa
Water consumption
50 L/MIN
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.
Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.
We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.
Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
