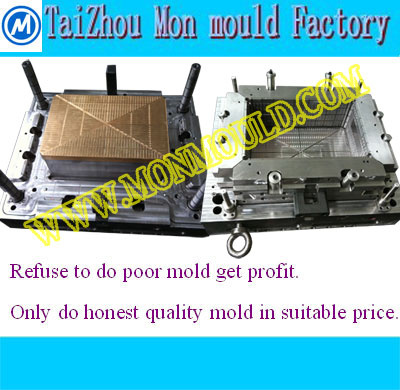

718h Steel Mechanical Sliders Injection Plastic Mould for Crate
| Price: |
US $ 6000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
M-00185 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tool: |
Injection Tool for Plastic Crate,Box |
| Mold Runner: |
Cold Runner,Directly Feed From Bottom |
| Mould Slider: |
4 Sliders Mechanical Promote |

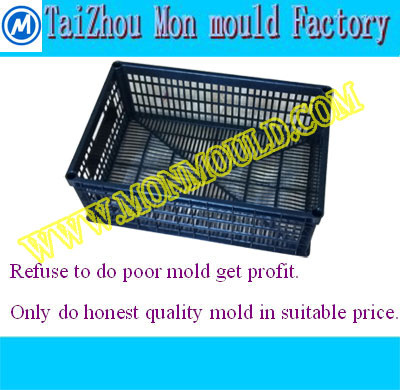

| Plastic Crate: |
600*500*450mm |
| Crate Weight: |
850g |
| Cycle Time: |
30-40s |
| Tool 1st Testing: |
55 Days |
| Shaping Mode: |
Injection Mould |
| Application: |
Home Use |
| Installation: |
Fixed |
| Process Combination Type: |
Single-Process Mode |
| Plastic Material: |
PP |
Product Description
We supply wide high quality,fast cycle time Injection mould for plastic crate/Box:We take point on fast cycle time,long life crate mould,box mould,At the base of customer's cost,we prior choose mechanical pulling cores.Plastic crate/box release from mould during mould opening,we are professor in this design. Plastic crate mould steel:P20H/718H/Be-Cu cover on Cores.Plastic crate mould gate:Cold runner,derectly feed/Multiple point hot runner feedInjection crate mould Cavity:Sinlgle/2/4.Injection crate mould life:Above 600,000 shot. Taizhou mon mould facotry is your right moulds supplier.Our principle is:1.Refuse to built poor quality mold to get profit.2.Honest mold! Honet price! Honest service!Please contact with us to get best Crate mold suggestiona and satisfaction! Commodity mold is one of our main service:A:Bucket mold,Chair mold,Stool mold,desk mold,cup mold,mug mold,toy mold,box mold,container mold,barrel mold,thin wall box mold,double color cup mold,etc all kinds household mold.B:Washer mold,vacuum cleaner mold,TV set mold,refridge mold etc home appliance mold.C:Spoon mold,bowl mold,shelf mold,flavoring shelf mold,funnel mold,baler mold etc kitchenuse mold.D:Tidy mop-pail mold,broom mold,stool cover mold,basin mold,bucket mold,toothbrush mold etc bathroom mold. Our Mold flow:A:Check samples or drawings from customer.B.Complete molds design,and start mold building after mold drawing confirmed.C.1st test mold,and send samples to customer to comfirm.D.Modify the mold according to customer's feed back on 1st testing samples.E.After sample confirmed,pacakge the mold,arrange mold shipped.As soon as mold job start,we will provide time plan,and inform custom 1st testing time.Every Monday,provide weekly report contains weekly photoes. So why not contact with us at once,and start honest business and growing together !
|
Box Mould mould core material |
P20 Chrome plated/2738/2316/H13/1.2344 |
|
Box Mould mould cavity material |
P20 Chrome plated/2738/2316/H13/1.2344 |
|
Box Mold mould gate |
Sprue,point gate/Hot runner feed |
|
Box Mold mould Design |
UG/PROE/CAD |
|
Box Mould mould payment |
T/T L/C |
|
Box Mould mould payment |
40% advance,balance before shippment. |
Taizhou mon mould factory is your right moulds supplier.
Our principle is: Honest mold! Honet price! Honest service!
If you are honest buyer, please choose us, you will get satisfied!
Our main service is:
1ST: OEM mold: All kinds custom plastic parts, Making according to 3D design or Samples.
Lower volume OEM mold(Like prototype mold): Cheap steel for core cavity, as 50#/P20/718; Cheap mold spare part; Cheap treatment; Cheap Processing method; Choose cold run etc to save cost.
High volume OEM mold: Good steel for core cavity, as 1.2738/1.2316/1.2344/2083/M300/S136/; Good standarded mold spare parts(LKM/HASCO/DME); Heat treatment(Quench harded); Good Processing method, as high speed CNC, precision engrave etc; Hot run(YUDO/HRS/HASKY) etc esure good quality.
2ND: Commodity mold:
A: Bucket mold, Chair mold, Stool mold, desk mold, cup mold, mug mold, toy mold, box mold, container mold,
Barrel mold, thin wall box mold, double color cup mold, etc all kinds household mold.
B: Washer mold, vacuum cleaner mold, TV set mold, refridge mold etc home appliance mold.
C: Spoon mold, bowl mold, shelf mold, flavoring shelf mold, funnel mold, baler mold etc kitchenuse mold.
D: Tidy mop-pail mold, broom mold, stool cover mold, basin mold, bucket mold, toothbrush mold etc bathroom mold
3RD: Fitting mold:
PPR fitting mold: For water supply
Type: Water supply, weld connection, home and industrial use PPR mold:
Shape: Tee, Elbow, reducer, socket, or with brass etc.
Size: 20mm-110mm
Cavity: Single to more than 16 cav
Mold material: P20/718/2738/2344
PVC fitting mold:
Type: Water supply, water drainage, eletric use
Size: 16mm-315mm
Cavity: Single to more than 16 cav
Shape: Tee, Elbow, reducer, socket, eletric box etc.
Mold material: P20 Chrome plated/4Cr13/2316/2083/M300/S136
And other PE/PP/ABS fitting mold: Used on water supply and agriculture irrigation.
Our Mold flow:
A: Check samples or drawings from customer.
B. Complete molds design, and start mold building after mold drawing confirmed.
C. 1st test mold, and send samples to customer to comfirm.
D. Modify the mold according to customer' S feed back on 1st testing samples.
E. After sample confirmed, pacakge the mold, arrange mold shipped.
As soon as mold job start, we will provide time plan, and inform custom 1st testing time.
Every Monday, provide weekly report contains weekly photoes.
So why not contact with us at once, and start honest business and growing together!
