Clamping Force:
7500kn
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description

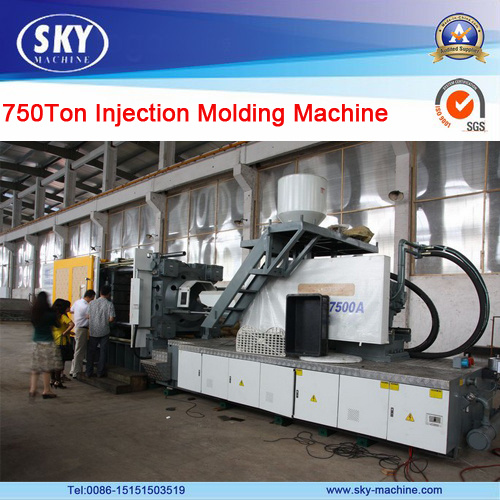

750TON Injection Molding Machine
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item
Unit
Data
Max. clamping force
KN
7500
Max. opening distance
mm
950
Space between tie bars ( V×H )
mm
950×950
Mold height ( min-max )
mm
400-960
Max. daylight
mm
1910
Ejector force
KN
200
Ejector stroke
mm
280
Ejector quantity
17
Screw diameter
mm
90
95
105
Screw L/D ratio
L/D
23.2
22
19.9
Theoretical shot volume
cm 3
2861
3188
3894
Plastici z ing weight(PS)
g
2603
2901
3543
Injection pressure
Kg/cm
1950
1750
1430
Theoretical injection rate(PS)
g
560
610
700
Screw torque
N.m
7180
Max. screw rotate speed
r/min
130
Injection stroke
mm
450
Carriage push force
KN
160
Pump motor power
KW
67
Pump pressure
Mpa
160
Heating power
KW
46.45
Heating zone
6
Size ( L×W×H )
m
10.1×2.6×2.8
Net weight
t
40
International designation
7500-5580
