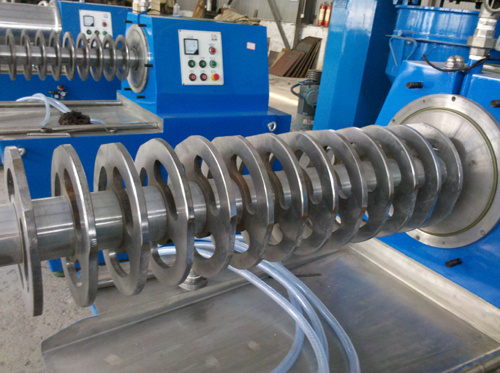

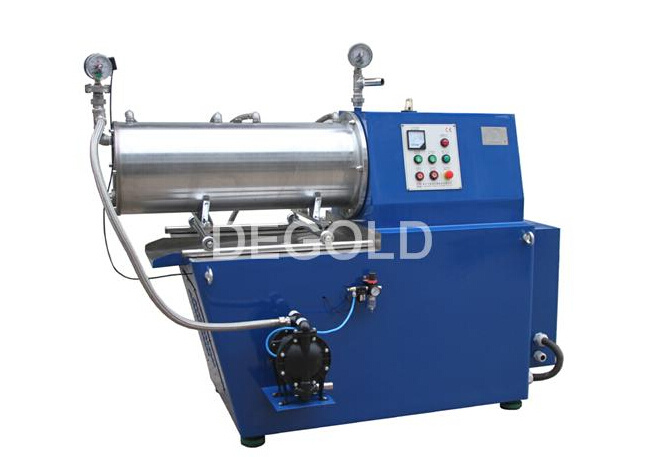

We produce 50L horizontal sand mills with different materials and constructions to meet with the different grinding requirements. Above photos are all 50 liters, but they are different.
For example, "ZM50D1210" specification.
1) 50L
2) Single mechanical seal
3) Non Ex proof
4) SS304 inner grinding chamber and hard steel grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Please contact with us to get the model which is best for your production.
Model
ZM1.4-D/ZM1.4-S/ZM1.4DB/ZM1.4-
ZM5-D/ZM5-S/ZM5-DB/ZM5-SB
ZM15--D/ZM15-S/ZM15-DB/ZM15-SB
ZM20-D/ZM20-S/ZM20-DB/ZM20-SB
ZM30-D/ZM30-S/ZM30-DB/ZM30-SB
ZM50-D/ZM50-S/ZM50-DB/ZM50-SB
ZM100-D/ZM100-S/ZM100-DB/ZM100-SB
ZM200-D/ZM200-S/ZM200-DB/ZM200-SB
ZM250-D/ZM250-S/ZM250-DB/ZM250-SB
Parameter
ZM60-D/ZM60-S/ZM60-DB/ZM60-SB
Effective cylinder volume( L)
1.4
5
15
20
30
50
100
200
250
60
Main motor power (KW)
2.2
7.5/11
15
18.5
22
30
45
75
55/75
Grinding medium load( L)
About 85% of the cylinder volume
Materials in/outlet pipe diameter
G1/2
G3/4
G1
G1 1/2
Cooling water in/outlet pipe diameter
G1/2
G3/4
Pump pressure
0.7MPa
Compressed air consumption(m 3 /min)
0.2
0.3
0.6
Weight(kg)
600
750
900
1000
1200
1800
2500
2700
Overall size(mm)
1250×900×1250
1550×1050×1500
1650×1100×1500
1750×1100×1500
1900×1150×1780
1750×1100×1800
2000×1200×2000
2090×1230×2090
