Maximum Size Of Mould Frame:
(600*500*600)Mm
Maximum Clamping Force:
45kn
Maximum Opening Mould:
38kn
Minimum Shut Height:
350mm
Maximum Stroke Of Dynamic Mold:
350mm
Top Core Oil Cylinder Output:
38kn
The Angle Of Working Platform Rotation:
0-90
Hydraulic Station Power:
3.75kw
Maximum Dimension Of The Equipment (Lxwx:
2500mm*1500mm*1600mm
Product Description
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time Over 20 years==factory==exporting license==quality control==competitive price==own technology== delivery time==good & direct service --------------------------------------------------------------------------------------------------------------------------------------------
Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.

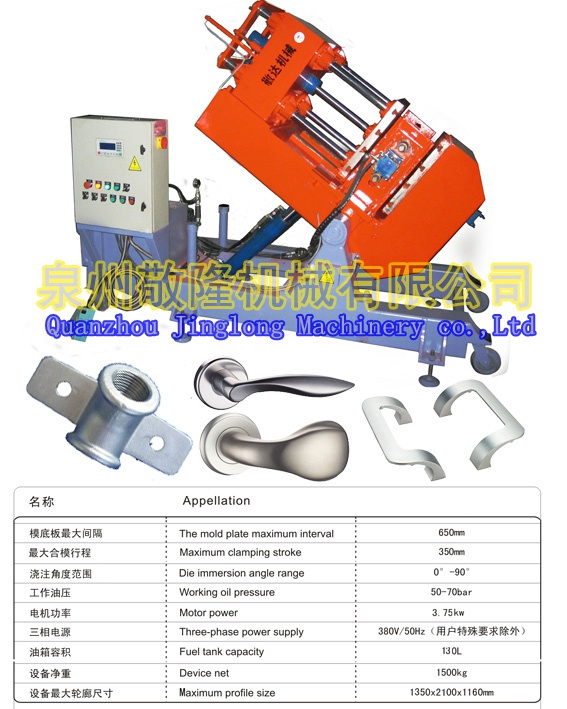

Aluminum gravity die casting Item No.: JD-600 Tilt Gravity Die Casting Machine for aluminium.
It's a machine which used in casting not only aluminum but also zinc and some other metals, and the main point, they can't used in brass and copper. If you want cast brass or copper, please choose our products JD-AB500 or JD-AB400
JD600Aluminum alloy casting machine Technical parameters: 1.Maximum size of mould frame:(600*500*600)mm 2.Maximum clamping force: 45KN 3.Maximum opening mould :38KN 4.Minimum shut height:350mm 5.Maximum stroke of dynamic mold:350mm 6.Top core oil cylinder output:38KN 7.The angle of working platform rotation:0°- 90° 8.The speed of working platform rotation:8°/S≤V≤4°/S 9.Hydraulic station power:3.75kw 10.Hydraulic system pressure rating:6.5Mpa 11.Hydraulic system working pressure:5.5-10Mpa 12.Control:manual,automatic 13.Plunger pump (Taiwan imports):25cc/rev 14.Human-computer conversation:Siemens touch screen 15.Net weight of the Equipment :2.6T 16.Maximum dimension of the equipment (LXWXH):2500mm*1500mm*1600mm
