Max. Striking Energy: 5000kgm:
Striking Energy: 0-50kj
Forging Forming Method:
Mold Forging
Product Description

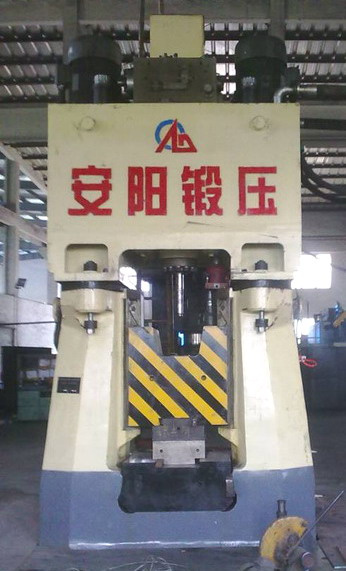

C92K-50KJ Hydraulic Die Forging Hammer FOR AUTOMOBILE ENGINE FORGINGS AND MOTORCYCLE FORGINGS.？
Hit Energy: 0KJ - 50 KJ
Striking Energy: 0kgm -5000kgm
Weight of Falling Parts: 3400kg
Max Hit Number Per Munite: 85
Hit Stroke: 745mm
Main Motor Power: 2X75
Machine Weight: 78500kg
The Hydraulic Die Forging Hammer is best suitable for precision die forgings, such as motorcycle parts, auto parts, hand tools, surgical instruments, table ware...Etc.
C92K Hydraulic Die Hammer is a High Technology Hydraulic Die Forging Hammer with following features:
1. Programmable Hitting;
2. Precise Hitting Energy Control;
3. High Forging Accuracy;
4. High Blow Frequencies;
5. Simple and Safe Operating;
6. Low Forging Vibration;
7. Optimum Die Life and Hammer Rod Lift...Etc.
Should any capacity Hydraulic Die Forging Hammer be of interest to you, we will be happy to give you information upon receipt of your detailed requirements.
CNC Forging Hammer
Unit
C92K-16
C92K-25
C92K-31.5
C92K-50
C92K-63
C92K-80
Max. Striking Energy
KJ
16
25
31.5
50
63
80
Weight of Hammer Head
kg
1080
1700
2100
3400
4350
5650
Max. Striking Frequency
1/min
90
90
85
85
80
75
Max. Stroke
mm
640
685
700
740
760
810
Min. Stroke
mm
480
495
500
510
520
560
Guide Rail Distance
mm
520
608
664
766
800
850
Hammer Head Depth
mm
470
550
595
695
750
800
Min. Die Height
(Without Coattail)
mm
160
180
200
220
220
280
Max. Die Height
(Without Coattail)
mm
320
370
400
450
460
530
Sow Block Height
mm
700
700
700
700
700
700
Height Above Ground
mm
4540
4570
4780
5185
5260
5910
Height Below Ground
mm
540
705
850
1105
1390
1390
Main Motor Power
Kw
37
55
55
55*2
55*2
90*2
Manufacturer of Pneumatic Forging Hammer, CNC Hydraulic Die Forging Hammer, Whole Hydraulic Die Forging Hammer, Whole Hydraulic Open Die Forging Hammer, Hydraulic Open Die Forging Press, Forging Manipulator and Ring Rolling Machine.
Anyang Forging Press Machinery Industry Co., Ltd is the Chinese most reputable manufacturer of Forging Hammer, Pneumatic Forging Hammer, Hydraulic Forging Hammer, Ring Rolling Machine, Ring Rolling Mill, Ring Forging Machine, Forging Manipulator, Metal Briquette Press Machine, Metal Briquetting Press Machine, Metal Baling Press Machine, Metal Baler, Hydraulic Riveting Machine, ISO9001 certificated company, with 50 years experience and history in producing forging equipments, products exported to more than 60 countries.
Anyang Metal Forging and Metal Pressing Machinery Include Following:
(1) Pneumatic Forging Hammer Falling Weight at 9kg, 15kg, 25kg, 40kg, 55kg, 75kg, 150kg for art blacksmithing and small free forging items production, such as wrought iron decorations and farm hand tools.
(2) Pneumatic Forging Hammer Falling Weight at 150kg, 250kg, 400kg, 560kg, 750kg, 1000kg and 2000kg best for industrial open die forging works, pre-forming, drawing-out, upsetting, punching, such as forge a disc, shafts forging, ring forging.
(3) Double Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T, 12T and 14T.
(4) Single Arm Hydraulic Open Die Forging Hammer capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T and 12T,
(5) Hydraulic Die Forging Hammer capacity at 1T, 2T, 3T, 5T, 6T, 8T, 10T, 16T, 18Ton and 20Ton.
(6) CNC Hydraulic Die Forging Hammer blow energy at 16KJ, 25KJ, 31.5KJ, 50KJ, 63KJ, 80KJ, 125KJ, 200KJ, 250KJ, 320KJ and 400KJ.
(7) Hydraulic Open Die Forging Press at 800T, 1250T, 1600T, 2000T, 2500T, 3150T, 4000T and 5000T.
(8) Forging Manipulator capacity at 1T, 2T, 3T, 4T, 5T, 6T, 8T 10T, 16T, 20T, 30T and 40T to cooperate with open die forging hammers and forging presses.
(9) Ring Rolling Machine / Ring Rolling Mill / Ring Forging Machine producing ring forgings OD from 100mm to 5000mm.
