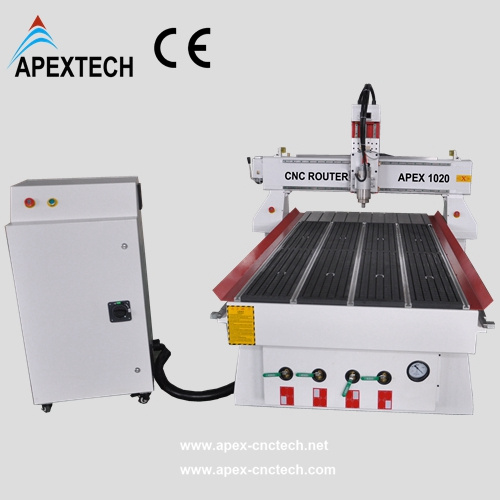

Apex 1000*2000*200mm CNC Cutting Machine Engraver
Price: |
US $ 5500-6000/Set |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
APEX A1020 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Apex A1020 |
Size: |
1000*2000*200mm |
Working Speed: |
15m/MIM |
Driving Motor: |
Stepper Motor |
Inverter: |
Delta/Fuling/Best |
Spindle: |
Watercooling/Aircooling |
Software: |
Art Cam, Visual Mill, Type3 |
X,Y Axis Transmission: |
Helical Rack and Pinion |
Z Axistransmission: |
Ball Screw |
Export Markets: |
Global |
Spindle Layout: |
Vertical |
Spindle Number: |
Single-Spindle |
Feed Mode: |
Manual |
Controlling Mode: |
CNC |
Certification: |
FDA |
Product Description
1. Parameter
All of these models can be customized according to customer requirements.
With Certification: CE, ISO9001
NO. | Description | Parameter |
1 | X,Y,Z working area | 1000*2000*200mm |
2 | Drive and motor | Yako stepper motor/driver; yaskawa servo motor/driver |
3 | Spindle | 3kw/4.5kw/6kw watercooling spindle; 3kw/4.5kw/6kw HSD aircooling spindle |
4 | Inverter | Delta frequency inverter |
5 | Control system | NCstudio/ Mach3/DSP controller |
6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
8 | Frame | Big thickened Steel Square Tubes, thickness up to 8mm |
9 | X, Y structure | Rack and pinion, Hiwin square rails on X, Y axis |
10 | Z structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
11 | Max Rapid Travel Rate | 30,000mm/min |
12 | Max working speed | 18,000mm/min |
13 | Working voltage | AC220V/380V, single/three phase |
14 | Command languages | G code |
15 | Running Environment Temperature | 0 degree - 45 degree |
16 | Software | Type3 English version; Artcam English version |
17 | Net weight | 1000KGS |
18 | Gross weight | 1200KGS |
19 | Relative Humidity | 30% - 75% |
20 | Guarantee | One year from the date of commission |
21 | Optional Accessories | Rotary system Mist-cooling system Dust collector/ Dust hoods for three axis Vacuum pump 850w Yaskawa/800W Panasonic Servo motors |
2 Application
1. Wooden plate processing: wood carving, cutting, hollowing-out and hole-drilling on the three-dimensional
wave board processing, wooden doors, window processing, cabinets doors and panels, computer table and plate furniture auxiliary processing.
2. Advertising industry processing: Acrylic cutting, Advertising signs, logo production, forming system
module, a variety of the production of advertising decorative products.
3. Mold material industry: the wooden, copper, aluminumand other metal molds, as well as artificial marble,
sand, plastic sheeting, PVC pipe, and other non-metallic mold.
4. Other: Aeronautic wood mold, propeller, automotive froth mold. Three dimensional curved surface of
instruments like violin, erhu, dance and etc, Also suitable for engraving and cutting on iron plate and the other
metal material.
3. Machine Package
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
4.Guarantee & After Sales Service
1) The whole machine guarantee is 12 months except for special parts.
2) Main parts(excluding the consumables and the person damaged) shall be changed free of charge if there is any problem during the warranty period, we will provide the consumable parts at an agency price when you need replacement.
3) 24 hours technical support by phone, email or msn, skype etc.
4) Software is on update for free.
5) Provide for English manual and CD video of machine using and maintaining.
5. FAQ:
1. Guarantee & After-sale Service?
1.1 One year warranty under normal use and we supply lifetime maintenance;
1.2 Technical support by Phone, Email, Skype, WhatsApp, MSN around the clock;
1.3 Free Training to make sure you master the operation of the CNC Router;
1.4 Friendly English Operation Manual, popular and easy to understand.
2. OEM Service Available?
2.1 Usually, we will manufacture the machine as our regular design;
2.2 X,Y,Z Working Area could be customer-oriented designing;
2.3 Special configuration could be customer-oriented designing.
3. Delivery Time( Production Procedure)?
3.1 For 3 Axis Machine with standard specification, usually 25 working days;
3.2 For 4 Axis Machine with standard specification, usually 35 working days;
3.3 For 5 Axis Machine, OEM or Non-standard models, usually 95 working days.
6. Certification of Machine
With CE,SGS certification.

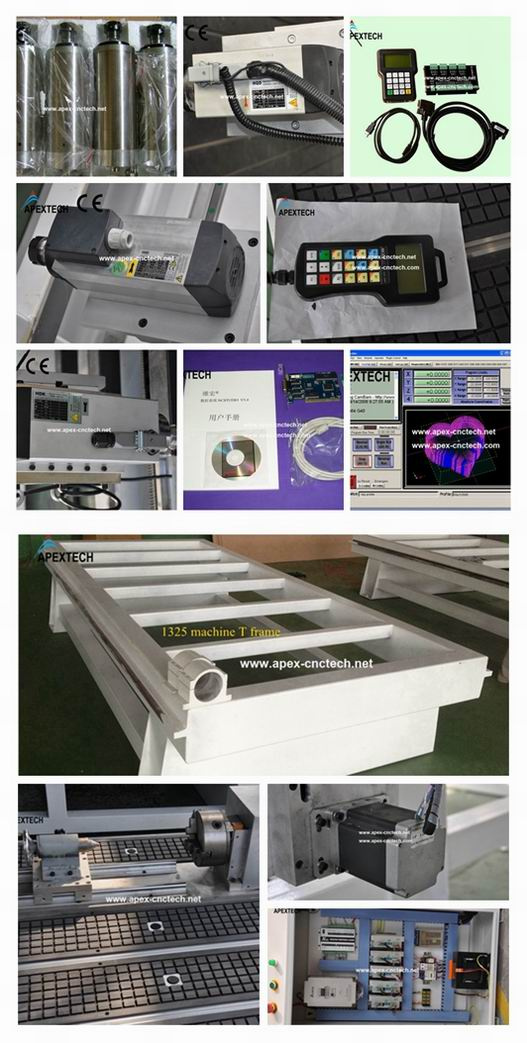

7. APEX CNC Router Features/Advantages
1). Big size thicken lathe bed structure, adopting steel pipe tubes for machine frame, and steel made gantry ,more stable, can work over 7 years without distortion.
2). Adopt high power driver and motor, double motor on y axis. which lead the machine run at 20m/min for processing speed, traveling speed can up to 40m/min.
3). Lubrication system on 3 axis: Lubrication pipe connecting to all linear guide which can lubricate them in time by manual oil lubrication pump for lasting machine lifetime.
4). Hard limit stop and electronic limit stop on 3 axis protect the machine beyond the working area.
5). Our machine table is all specific T-slot combine with bakelite vacuum table with enough vacuum suction holes, we can increase the vacuum hole number according to your need.
6). Adopting strong wire chain, with high soft shielding twisted-pair cable, which can afford 220ºC at most,with much lifetime than the common 120ºC.
7). Manual oil lubrication pump, it lubricates every point of the machine to prevent the machine from rusting.
8). Large size Taiwan TBI ball screws,no distortion,good stability.
9). Taiwan HIWIN rail linear bearing ,double slippers,bearing heavy,working steadily.
10). Emergency stop on both sides of the machine and on control cabinet, it can protect the machine from any misoperation damage to the machine.
11). Large-size synchronousbelt and synchronizing wheel in x,y,z axis,top performance.
12). 22mm thickness gantry structure guarantee the good stability and high processing.
13). French Schneider AC contactor and Hugeton EMI filter.
14). Helical Rack and pinion drive, Hiwin square rail linear bearing 25mm. More stability and higher precision.
