North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size:
1300*2500*600mm
Power:
6kw Air Cooling
Working Mode:
: Japan Yaskawa Servo Motor
Operating System:
4 Axis Nc Studio
Weight:
2700kg
Warranty:
: One Year
Delivery Time:
20 Days
Spindle Layout:
Spindle Over
Spindle Number:
Single-Spindle
Feed Mode:
Manual
Controlling Mode:
CNC
Certification:
SGS
Product Description

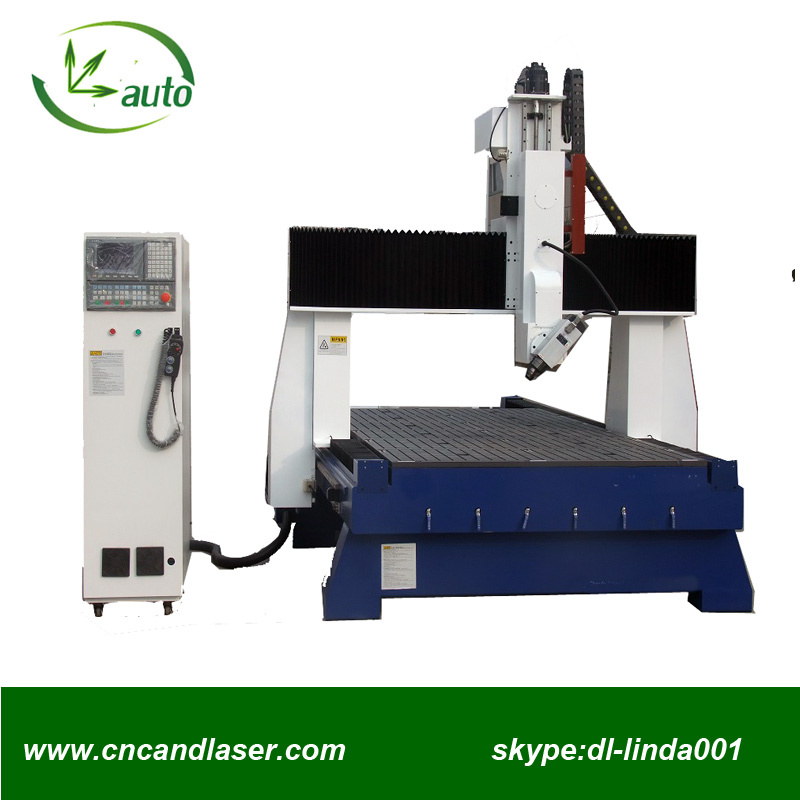

wood engraving cnc router 4 axis machine
Application: very suitable for processing deep wood, foam, plastic, stone, wood mould works, also can widely used for flat materials such as flat stone, wood, aluminum, copper, PVC and other hard & soft materials. Could work on flat material, 3d surface work-piece and 3d sculpture etc. For product: 3d foam and wood engraving cnc router 4 axis machine Specification:
Model
OD1530HL 4 axis
X,Y,Z ,B axis working area
1300*2500*600mm*180degree(customized)
Whole structure
Welded Steel gantry structure
X,Y,Z structure
Taiwan HIWIN Square linear guide rail
X,Y structure
Rack and pinion transmission,high speed and more stable; Y -double motor drive
Z structure
Imported ball screw,high precision
Max. idling speed
50m/min
Max. working speed
25m/min
Repositioning Accuracy
±0.05mm
X Y Z working Accuracy
< 0.02mm
Spindle
6kw air-cooling spindle(optional water cooling spindle)
Operation language
G code
Driving system
Japan YASKAWA servo motor and driver
Operating system
4 axis NCstudio control system
Working voltage
AC380V,50-60Hz
Software
PowerMill
Running environment
Temperature: 0-45; Relative humidity:30%-75%
Sample Pictures:
