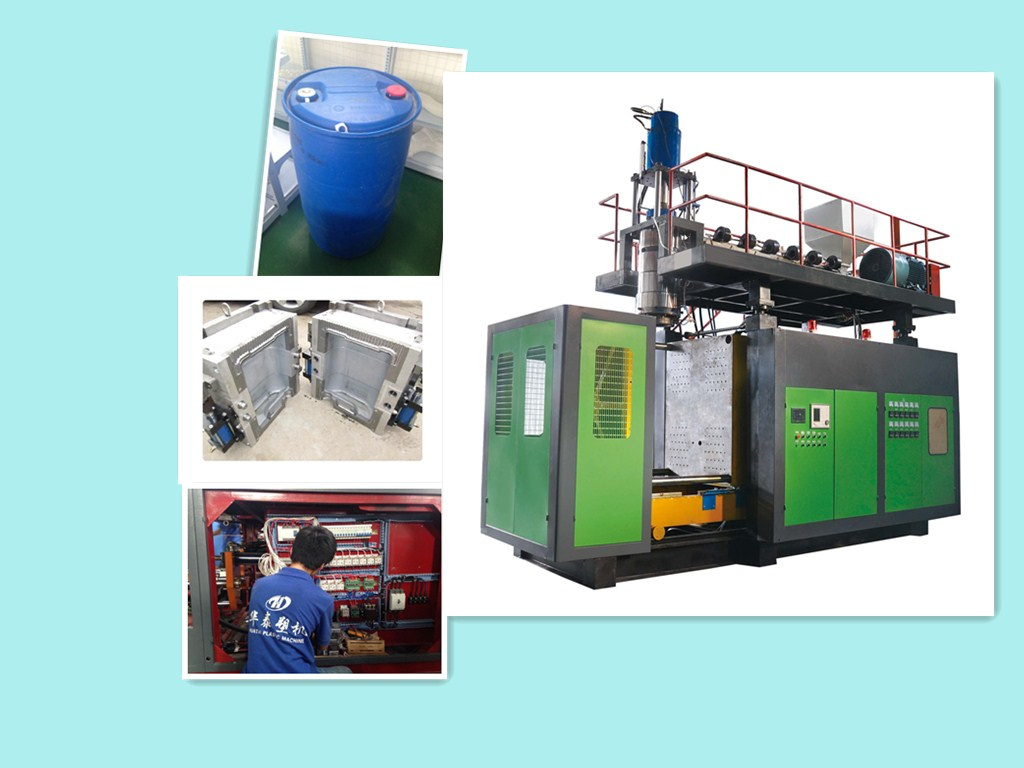

Automatic 200L Barrels Blowing Mold Mac:
200L Barrels Mold
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Raw Material:
HDPE
Computerized:
Computerized
Certification:
ISO9001:2008
Type:
Extrusion Blow Molding Machine
Product Description
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products.
HT-120 blowing machine main parameters
Name
HT-120
The material
PE,PP,PS,ABS,AS
production
19pics/Hour
Volume
1 Cav.
250L
Head
1 pics
Station
1 pics
Extrusion system
The screw diameter
120mm
The screw length to diameter ratio
28:1 L/D
The screw rotation speed
80r/min
Plasticizing capacity
280kg/h
Screw heating section number
6
Head
The loading cylinder volume
25L
Extrusion die diameter
600mm
Mould
One Cav.
1 Cav
Template spacing
600~1600mm
Largest mold size
1400*14000mm
Mold thickness
610-800 mm
Clamping force
1200KN
Power
Power supply
220~380V,350~60HZ
Heat the total power
75Kw
Screw motor power
75Kw
The host power
175Kw
The average energy consumption
55Kw
Head water
The cooling tower
Air pressure
0.6~0.8Mpa
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
