Control:
PLC
Security Level:
H
Power:
16kw
Speed:
Quick
Rate Of Final Products:
87%
Color:
Blue
Feeding:
Roll Aluminum Foil
Mold:
by Requirement
Operator:
1-2
Size Of Plant:
Small
Driven Type:
Electric
Usage:
Packaging of Goods
Packaging Material:
Metal
Applicable Industry:
Food
Packaging Type:
Container
Product Description

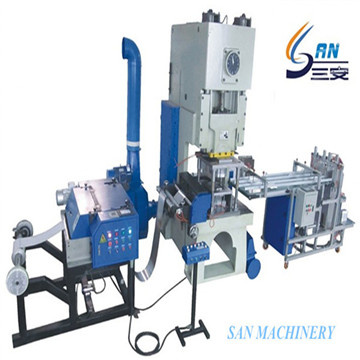

Aluminum foil container making machine
Specifications
1. Good quality
2. Good material utilization
3. PLC control, operate easily
4. High security
5. Customize mould
This equipment produces each kind of aluminum foil container´ S special purpose equipment, is suitable for AL-foil thickness 0.035-0.28mm, width of feeding is 550-800mm.
This equipment´ S advanced design lies in:
1. Contain oil the AL-foil. Feeding AL-foil. Waster packing, stacking during production, and the electric part of the line adopts PLC control, has realized the non-humanization production which completely the aluminum box stamps out, thus enhanced operators´ Security greatly.
2. Widened the aluminum foil material use width, has carried on the high accuracy rationalization layout to the multi-cavity mold, raised the aluminum foil material use factor greatly.
3. The advanced production processing craft as well as the precise technique of manufacture cause the product quality which this equipment produces to be higher.
Every part function specification
Electric panel: Electric control assembly
Uncolier unit: Oil AL-foil double-face, and than roll out
Waster packing: Packing the waster Aluminum foil
Stacking: Automatic stacking the products
Press machine: Press the host machine
This equipment accept "independent operation, comprehensive management" concept to run every movement part, make each moving part is related but not interfere with each other, PLC for processing all the feedback inform.
Delivery detail: 50 days after contract
Model
P45
P63
P80
P120
Rated pressure
45KN
63KN
80KN
120KN
Punch time
20-150pic/min
20-120pic/min
20-100pic/min
20-80pic/min
Stroke(mm)
200(customized)
220(customized)
250(customized)
280(customized)
Maximum die set height
490mm
540mm
540mm
590mm
Die set height adjustment
50mm
80mm
80mm
80mm
Distance from Slider's center to body
450mm
450mm
450mm
510mm
Work table size
1000X700mm
1100X800mm
1100X1000mm
1100X1200mm
Board hole size of work table
300X300mm
300X300mm
400X400mm
400X400mm
Thickness of work table
50mm
50mm
100mm
130mm
Slider's size
220X400mm
220X400mm
220X400mm
420X620mm
mounting hole of slider
145X320mm
145X320mm
145X320mm
Machine power
7.5Kw
9Kw
12Kw
15Kw
Net weight
4.8T
6.15T
11.2T
15.3T
Dimension(length*width*high)(mm)
1650*1350*2800
1650*1350*2800
1650*1850*2600
1650*2550*2950
Model
F580
F630
F800
F1100
Max rack weight
2t
2t
3t
5T
Max rolling diameter
1000mm
1000mm
1200mm
1200MM
Max feeding width
580mm
630mm
800m
1100MM
Feeding speed
10-60M/min
10-60M/min
10-60M/min
10-50M/MIN
Length range
30-1000mm
30-1000mm
30-1000mm
30-1000mm
Accuracy of feeding
±0.6MM
±0.6MM
±0.6MM
±0.6MM
Machine power
2.5Kw
3Kw
4Kw
6Kw
Net weight
1000Kg
1000Kg
1200Kg
2600KG
Motor Rolling
Optional
Optional
must match
must match
Hydraulic Feeding
Optional
Optional
Optional
Optional
Dimensions(length*width*high)
1690X960X1100mm
1690X1080X1100mm
1690X1250X1100mm
1720*1950*1300mm
