Use:
Sheet Metal Drawing, Bending, Blanking, Extrusion
Forging Forming Method:
Mold Forging
Power Source:
Hydraulic Pressure
Advantage:
Use Widely
Product Description

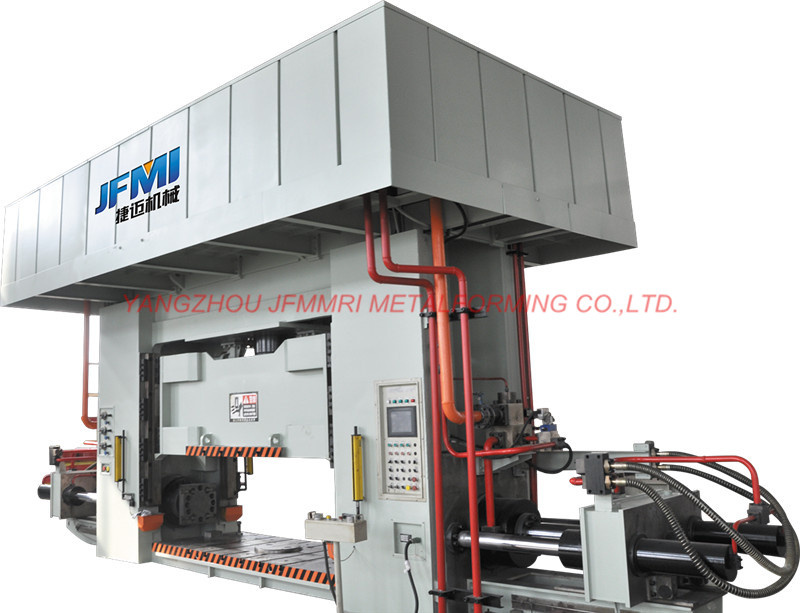

Bulging hydraulic press mainly used for pipe production.Bulging hydraulic press mainly used for pipe production.
Item
Unit
YJ65-200
YJ65-800
YJ65-1600()
Nominal force
KN
2000
8000
16000/16000
slide stroke
MM
600
600
600/200
Daylight
MM
1000
1000
1000
Size of table
MM
3000*1200
2500*1500
2100*1500
Size of slide
MM
1800*1000
1800*1200
1800*1500
Return force
KN
400
800
1000/1000
Side cylinder force
KN
2500*2
6000*2
2000*2
Side cylinder return force
KN
1000*2
1000*2
1000*2
Side cylinder stroke
MM
700
550
550
The distance between side cylinder pressure middle line and table face
MM
380
380
380
Side cylinder pressure head size(W*H)
MM*MM
450*450
700*700
450*450
Max. distance between side cylinder head and press middle line
MM
1500
1250
1150
Table height above floor
MM
300
300
300
Slide quick down speed
MM/S
100
100
100
Slide pressing speed
MM/S
After speed low down keep pressure
After speed low down keep pressure
3~7(when high pressure low speed)
Slide return speed
MM/S
100
100
100
Ejection cylinder ejection force
KN
200
500
500
Ejection cylinder stroke
MM
350
350
350
Side cyliner empty stroke ejection speed
MM/S
40
40
40
Side cylinder add pressure ejection force
MM/S
20
one:15MM/S pressure200T two:7MM/S pressure600T
10
Slide cylinder return force
MM/S
100
40
50
Press height above floor
MM
4000
6000
6000
Motor power
KW
145
170
160
Max. part height
T
8.5
20
30
Press weight
T
56
108
160
