| Prod Model: |
CTW-409 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
6700X1430X1800mm |
Product Description

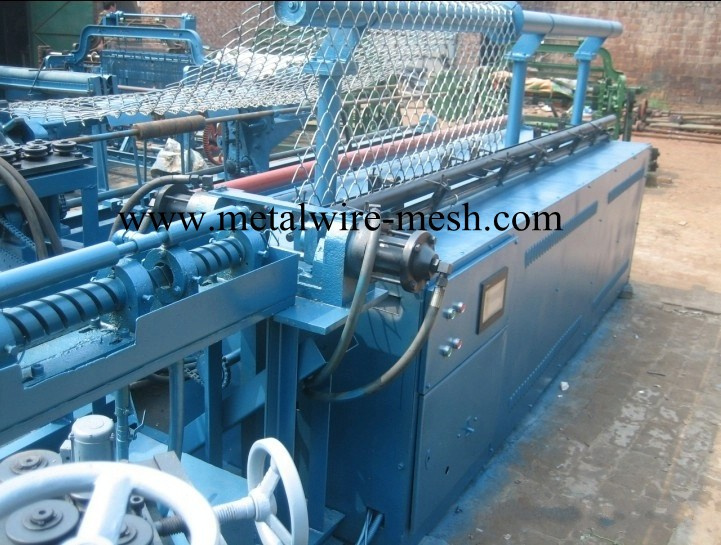

We supply automatic chain link fence machine
Full automatic chain link fence machine(2M width)
Technical Parameter
1. Capacity: 25-60squaremeter/hour
2. Wire dia: 2.0-4.0mm
3. Wire number: Two
4. Mesh: 52mm*52mm(the mould can be changed)
5. Width of mesh: 600-2000mm
6. Motor power: 3.0kw, 4.0kw, 0.12kw
7. Size of the machine: 4.5m*4.5m*2.5m
1.Width scope of weaving: 1-4m
Wire scope of weaving: 2-4mm
Mesh scope of weaving: 30-100mm
With 3 sets of mesh model at buyer's requirements
2.The machine is controlled by PLC automatic controller, so only one person is needed to operate it
3.The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M2 min.
4.Suitable wire to the machine: the tensile scope of the wire 300-500N/M2
5.Use compacting machine to make it into rolls
6.Total power of equipment 11kw
7.Weight of equipment: 4200kg
8.Outside size: main machine: 6700x1430x1800mm
Specification diameter of wire |
Mesh pitch(mm) | 30 | 40 | 50 | 60 | 70 | 80 | 100 |
wire Diameter (mm) | 2.0-2.5 | 2.0-2.5 | 2.0-3.0 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 |
Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.
Our hot products and feature products: Galvanized wire, oval galvanized wire and automatic binding wire.
Base on our more than 10 years exporter experienced, we also can supply competitive price for other products:
Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.
Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and so on.
We would like to win your long term businss by our high quality products and competitive price.
