Forging Forming Method:
Mold Forging
Product Description

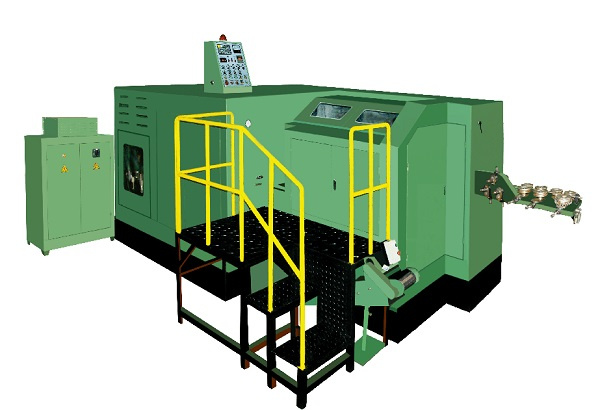

SR series passed CE certification, mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high efficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement
MODEL
UNIT
SRH-134LL
SRH-164S
SRH-164LL
SRH-204L
SRH-204LL
SRH-254S
SRH-254L
FORGING STATION
No.
4
4
4
4
4
4
4
FORGING FORCE
kgs
120,000
210,000
210,000
350,000
350,000
430,000
430,000
MAX. CUT-OFF DIA.
mm
φ15
φ18
φ18
φ23
φ23
φ26
φ30
MAX. CUT-OFF LENGTH
mm
310
220
380
240
360
270
340
OUTPUT
pcs/min
45 - 70
60 - 100
40 - 60
50 - 85
40 - 60
40 - 60
35 - 50
MAX. P.K.O LENGTH
mm
30
30
46
46
46
40
46
DIE KICK OUT LENGTH
mm
280
170
320
220
325
175
280
MAIN MOTOR
kw
37
45
55
75
75
110
110
CUT-OFF QUILL
mm
φ 55*70L
φ 60*90L
φ 64*100L
φ 75*120L
φ 75*120L
φ 80*130L
φ 99*150L
PUNCH SIZE
mm
φ 60*229L
φ 75*185L
φ 75*185L
φ 90*215L
φ 90*215L
φ 120*270L
φ 120*270L
DIE SIZE
mm
φ 86*305L
φ 100*190L
φ 100*345L
φ 125*240L
φ 125*345L
φ 140*250L
φ 148*300L
DIE PITCH
mm
110
120
120
140
140
160
160
APPROX. WEIGHT
kgs
38,000
43,000
60,000
62,000
75,000
105,000
131,000
DIA. OF PRODUCTION
mm
8 - 12.7
10 - 16
10 - 16
12 - 20
12 - 20
14 - 25.4
16 - 25.4
LENGTH OF PRODUCTION
mm
50 - 250
16 - 150
80 - 300
20 - 202
100 - 305
30 - 160
50 - 252
MODEL
SRH-103L
SRH-133S
SRH-133L
SRH-163S
FORGING STATION
NO.3
NO.3
NO.3
NO.3
FORGING FORCE KGS
80,000
115,000
115,000
190,000
MAX. CUT-OFF DIA. MM
φ12
φ15
φ15
φ18
OUTPUT PCS/MIN
60TO130
70TO150
60TO90
60TO140
MAX. P.K.O LENGTH MM
15
26
25
30
MAIN MOTOR KW
22
30
30
45
CUT-OFF QUILL MM
φ45*59L
φ63*69L
φ55*70L
φ60*90L
PUNCH SIZE MM
φ53*112L
φ60*130L
φ60*179L
φ75*185L
DIE SIZE MM
φ75*200L
φ86*135L
φ86*265L
φ110*190L
DIE PITCH MM
90
98
110
120
APPROX.WEIGHT KGS
19,500
19,500
31,000
40,000
DIA. OF PRODUCTION MM
6 -10
8 -12.7
8 -12.7
10 -16
LENGTH OF PRODUCTION MM
20 -152
15 -120
50 -210
10 -152
