North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:
New
Machining Process:
Brick Production Line
Brick Raw Material:
Concrete
Method:
Hydraulic Pressure
Automatic:
Yes
Capacity:
19200PCS/Day of 390*190*190mm Hollow Blocks
Power:
34.5kw
Dimension(L*W*H):
12800*3000*2800mm
Warranty:
1 Year
After-Sales Service Provided:
Engineers Available to Service Machinery Overseas
Certification:
ISO9001: 2000
Type:
Cement Production Machinery
Product Description

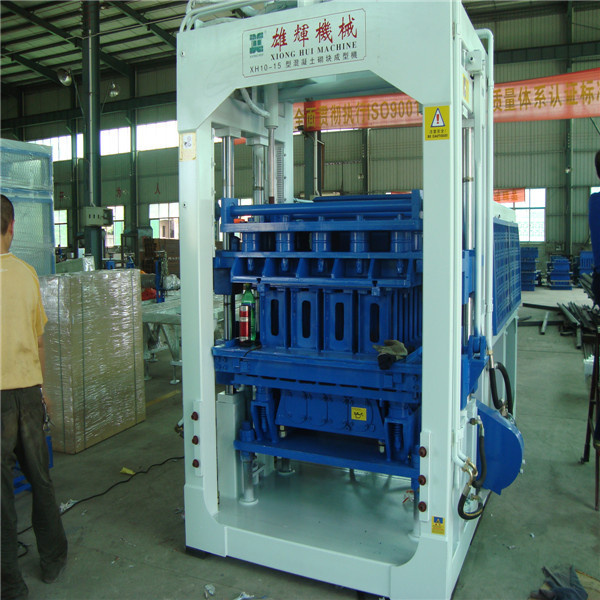

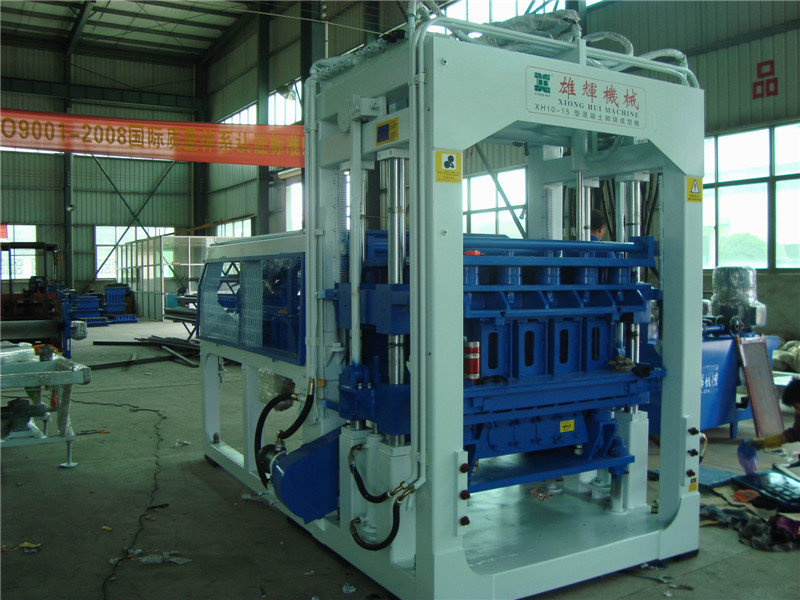

XH10-15 fully automatic concrete block machine
1. Produce all kinds of bricks 2. PLC Automatic Control System 3. Short Mold Cycling 4. High Output 5. Easy and safety operation
XH10-15 automatic block-brick production line
The equipment details:
XH10-15 block machine is suitable to make road blocks, road-side bricks and river bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.
Features & Advantages of XH10-15 block machine:
1. Adopting strong steel, super-strength design and special welding techniques, this machine features of high-rigid, resistant to vibration and long service life.
2. Adopting four-oriented approach to ensure the pressure head and mold box move exactly with good stability. With the replacement of various models, it can produce kinds of bricks to meet different requirement of clients.
3. The host machine adopts hydraulic rotational molding and vibration compression molding. Molding cycle takes 15-20 seconds to leave the floor for forming health.
4. XH10-15 block making machine is equipped with a multi-fabric mixing fork to mould box evenly.

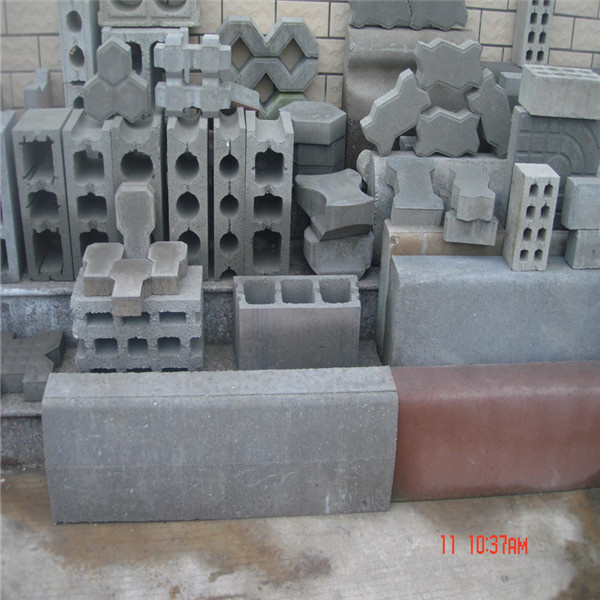

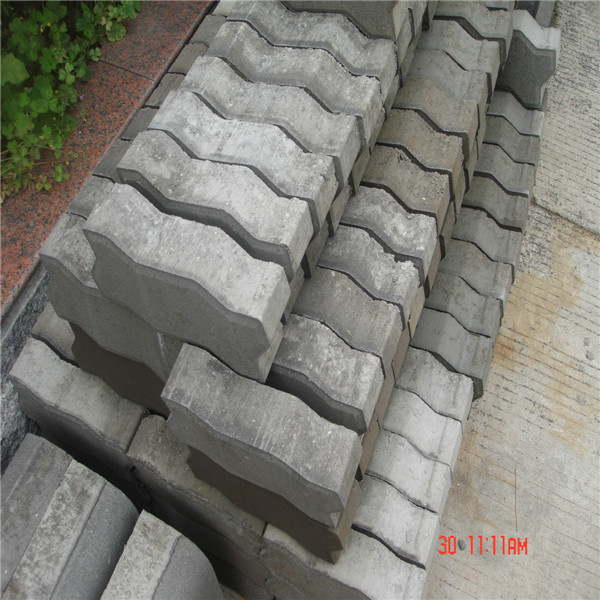

Specification&capacity of main products
Items
Size(L*W*H)
Pcs/mould
Pcs/hour
Pcs/8hour
one year(300days) production
Hollow blocks
390*190*190mm
10
2400
19200
5760000
Perforated blocks
240*115*90mm
24
5760
46080
13824000
Solid bricks
240*115*50mm
52
12480
99840
29952000
Color bricks
200*100*60mm
28
6720
53760
16128000
Technical parameter
Max. Dimension
12800×3000×2800mm
Rated pressure
21MPa
Main vibration type
Table vibration
Vibration frequency
2800_4500times/min
Pallet size
1080×850mm
Forming cycle
15_25sec
Total Power
34.5kw
Weight
13800kg
