Size:
4260*1040*1333mm
Product Description
Characteristics 1. Display with touch screen, graphics-control operation that is easy to be learned and operated, store 99 groups of program; 2. All information may be dispalyed in English or Chinese; 3. Both guide rail and machine head are treated with the special techniques; 4. Delete the error automatically and provide the methods for resuming; 5. Set the bouncing&compensating value, confidentiality functions of program and processing information; 6. Graphics programming system: By means of drawing and amending on the solid tubular shape in the screen directly to get the processing program, it is simple, fast and accurate; 7. Rebounding measurement: Comparing mesurement to the characteristics of the lot of pipes. 8. Single-step debugging function: For viewing the deformation of pipe carefully during conducting the trial-manufacture of the mold; 9. Plotting the mold graphics automatically that takes obvious effect on research and development of new products; 10. Overall monitoring the hydraulic/electrically/driving system, motor phase lack/reverse rotation, voltage, temperature, oil pressure and automatically diagnosing the fault; 11. Password, key, working time/quantity record: For management of production.
Model number

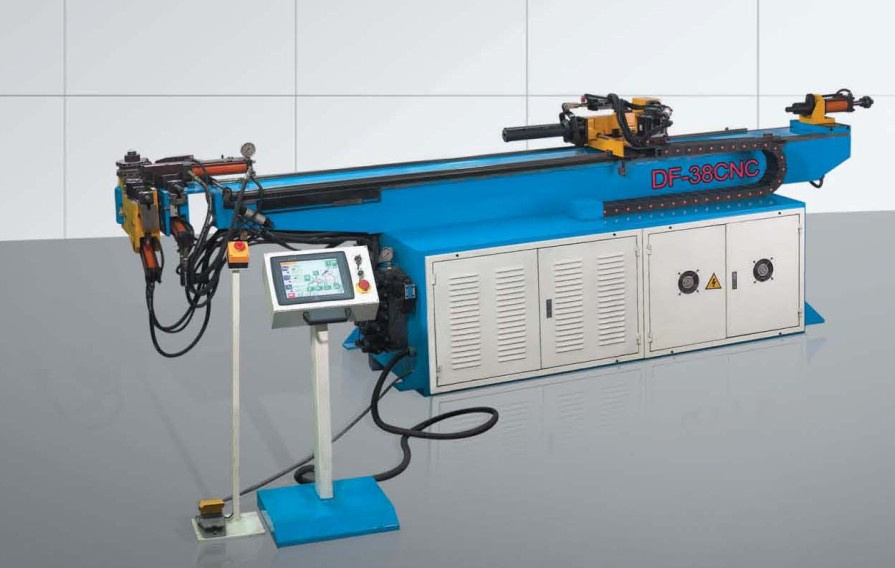

DF-38CNC
Max applicable carbon steel, pipe Bending radius 1.5D for example
Φ38.1x2.0t
Max feeding stroke(b)
2100mm
Feeding mode
Direct feeding or clamp feeding
Max bending radius
175mm
Max bending angle
185°
Each pipe can set the number of bending
16bending
Can set archive number of pipe
20
Working speed
Bending speed
Max 45°/second
Rotate pipe speed
Max 270°/second
Feeding speed
Max 700mm/second
Precision
Bending angle
±0.15°
Rotate pipe angle
±0.1°
Feeding length
±0.1mm
Data input mode
Working value(Y.B.C)
Rotate pipe servo motor power
400w
Feeding servo motor power
1.0kw
Oil pressure motor horsepower
5Hp
Machine weight
1500kg
Machine dimension LxWxH(cm)
4260x1040x1333mm
Zhejiang shunxin machinery Co., Ltd was established in 1989 which is located in the foot of the beautiful YanDang mountain of Yueqing city of Zhejiang province. It is near the express way, it has convenient transportation. The comanpy is specialized in all kinds of machines, such as pipe bending machine, pipe cutting machine, pipe end forming machine, pipe shrinking machine, chamfering machine, automatic riveter, hydrauic lathe, stripping machine. Tooth sharpening machine, saw blade sharpening machine.
Our company supply special equipment for Shanghai Volkswagen, Dongfeng, Chang'an, Changhe, Liuzhou Wuling domestic famous companies. And it has a Long history, superb technology, a full range of design, as well as we are cooperated with company domestic and overseas closely, all these are make our products received a consistent recognition and praise by our users.
The products are widely used in automobiles, motorcycles, bicycles, baby carriage, ships, steel furniture, sporting goods, leisure goods, air-conditioning piping, petrochemical, sanitary pipe industry. It is the ideal equipment for various pipe profile cutting, shaping, riveting process.
We would like to cooperate with the buyers all over the world in the future.
