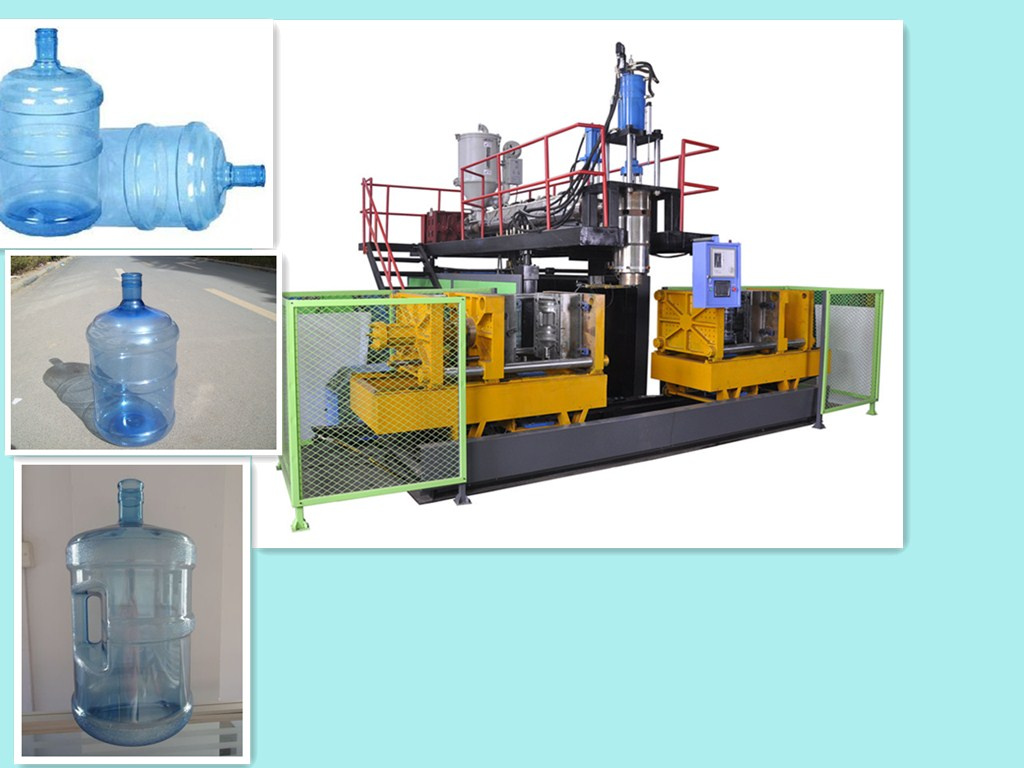

Automatic PC 5 Gallon Bottles 2 Station:
PC 5 Gallon Bottles 2 Stations Blowing Mold Mach
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Computerized:
Computerized
Certification:
ISO9001:2008
Type:
Extrusion Blow Molding Machine
Raw Material:
PC
Product Description
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products.
Model
HT-90PC
Suitable Materials
PC ^
Real Output
When PC 5gallon water barrel 720g
90 pcs/h
PC 5 gallon barrel weight
Suitable use as standard
600-850g(adjusted by controller)
Product Volume
2cavity
5L ~ 50L
Extrusion Unit
Screw Diameter
80mm
Screw L/D Ratio
38:1 L/D
Screw Speed
40 r/min
Plasticizing Capacity
90kg/h
Number of Heating Zone on Screw
4
Die Head Unit
Amount of die head
1
Volume of Storage Jar
4.2 L
PC storage capacity
2Kg
Die-pin Diameter
80mm
Number of Heating Zone
4
Clamping Unit
Work Station Amount
1
Mold Board Amount
4
Mold Board Size
700*700*66mm(L*W*T)
Clamping Force
180KN
Mould Unit
Cavity amount
1 cavity
Max Mold Size
750*500*500mm(L*W*T)
Lifter Unit
Turbine reducer lifter
4 pieces
Power Unit
Electrical Source
220 / 380V,3phase 50 / 60Hz
Screw Motor Power
37kw
Clamping hydraulic motor
7.5kw
Servo hydraulic motor
4kw
Screw heating power
10kw
Die head heating power
5kw
Hopper dryer power
4.5kw
Fan power(4pcs)
0.12x4=0.48kw
Total Power
58kw
Fact consumption power
20kw/h(tested)
Waterhead
Water pool
Air Supplier Pressure
0.8 Mpa
Air consumption
0.5m 3 /min
Weight of main machine
9000kg
Auxiliary Equipments
Low Pressure Air Compressor 1 Set
0.8m 3 /min;1.25MPa;7.5KW;0.32m 3
Air Tank 1 Set
0.42m 3 /0.8 Mpa
Oil/water automatic mold temperature controller 1 Set
Heating power 4.5kw;motor power 0.5kw
These 3 auxiliary equipments is enough, no need other equipments.
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
