Product Description
Introduction:

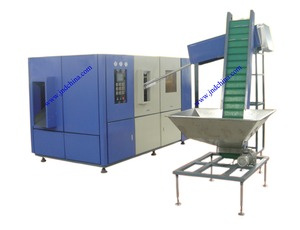

Jnd-cpj-ss2600 is one of the fastest liner bottle blow molding machines in mainland of China by now. this bottle blow moudinng machine can reach around 2500bph for 350ml bottle.
Features:
Pneumatic parts for mg-ss2600 machine
No item imported form
1 Main cylinder for clamping festo/Germany
2 Stretching cylinder festo/Germany
3 Solenoid valve for high pressure 2PCS festo/Germany
4 Solenoid valve for low pressure 2PCS festo/Germany
5 PLC controller Taiwan/detal
6 Water divide SMC/Japan
7 Oil divide SMC/Japan
8 Lubrication automatic
9 Temperature controller it is special design form China famous company
10 Blow pipe China it can bear 80kgs, actually we only use 30kgs.
Electrical power loading:
Mg-ss2600 automatic bottle blowing machine: 28kw
High pressure air compressor 2sets 30kw
Low pressure air compressor 1set 15kw
Total power load is 73kw
Description type unit capacity
Volume of product
0.1-2.5L
Product raw material
pet
Mould plate maximum dimension
420*500mm
Mould opening stroke
0.1-2L: 150mm 6L(1caivty): 250mm
Max mould thickness
0.1-2L: 150mm 5L(1caivty): 250mm
Clamping force
380kn
Air pressure for working
0.8-1.25mpa
Air pressure for blowing
1.5-4.0mpa
Temperature control
7 section
Length of pre-form
50-220mm
Inner diameter of pre-form tube
15-126mm
Stretching bar diameter
8-50mm
Quantity of heating rotation
34-60PCS
Length of bottle
340mm
Diameter of bottle
60-220mm
Power
23kw
Temperature in the pre-form
3.5kw
Weight
2600kgs
Main machine dimensions
316x225x226cm
Weight of conveyer
400 kgs
Conveyer dimensions
200x190x226cm
Electric voltage/frequency
220V/380/50Hz
