| Prod Model: |
TZ-25L2-10A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Dual-Chamber Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Filling Principle: |
Pressure |
| Packaging Type: |
Barrel |
| Dosing Device: |
Plunger |
| Packaging Material: |
Composite Materials |

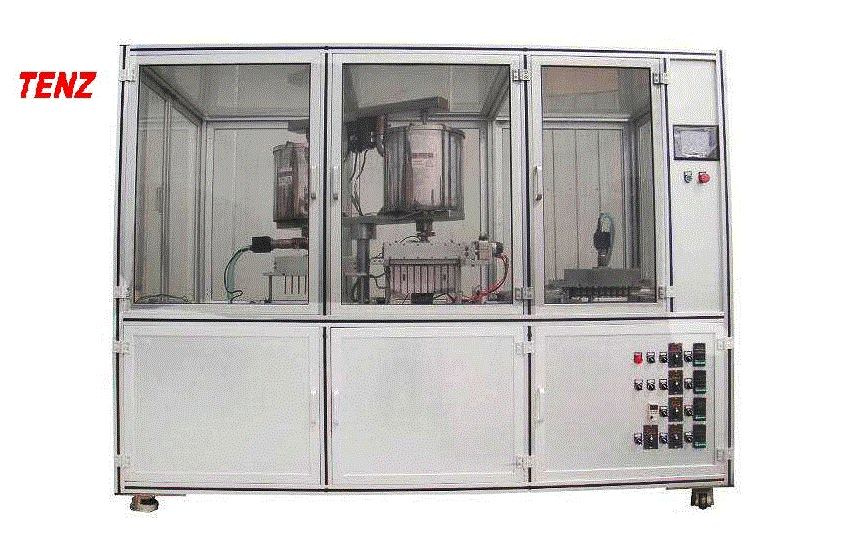

Product Description
Capacity
50PCS /min (10 nozzle filling heads)
Features
2 sets of 3 layers of jacketed vessels 25L capacity with stirrer
Servo motor controlled dosing pump
Dosing volume and pump speed controlled by digital input, Accuracy +/-0.5%
Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
Mold raise/lower system for bottom-up filling
Servo controlled mold raise /lower system
Mold pre and post heating(before and after filling)
Parameters
Voltage AC220V/50Hz
Weight 600kg
Body material T651+SUS304
Dimensions 2500*1200*2000
