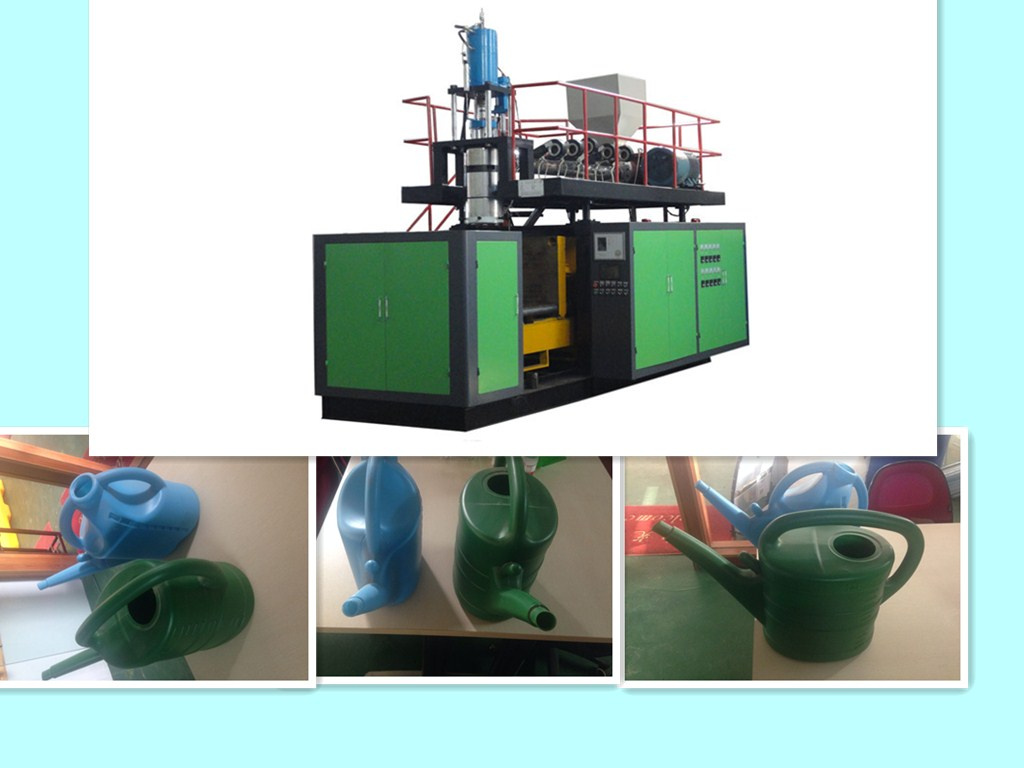

Blowing Water Can Blowing Mold Machine:
Garden Water Can
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Raw Material:
HDPE
Computerized:
Computerized
Certification:
ISO9001:2008
Type:
Extrusion Blow Molding Machine
Product Description
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products.
Model
HT- 80
Suitable Materials
PE \ PP \ PC \ PVC \ PS \ ABS \ EVA \ PETG \ AS ^
Output ( Running Free )
Depend on bottle design
370 pcs/h
Product Volume
1cavity
15L ~ 20L
Die Head Amount
Piece
1
Work Station Amount
Piece
1
Extrusion Unit
Screw Diameter
80mm
Screw L/D Ratio
25:1 L/D
Screw Speed
80 r/min
Plasticizing Capacity
100-120kg/h
Number of Heating Zone on Screw
4
Die Head Unit
Volume of Storage Jar
7.5L
Max Die-pin Diameter
300mm
Number of Heating Zone
4
Mould Unit
1 Cavity
1 cavity
Mold Board Space
350 ~ 1200mm
Clamping Force
220 KN
Power Unit
Electrical Source
220 / 380V,3phase 50 / 60Hz
Total Heating Power
20 Kw
Main Power
22 Kw
Screw Motor Power
22 Kw
Waterhead
Cooling Tower
Air Supply Pressure
0.6 ~ 0.8 MPa
Auxiliary Equipments
Low Pressure Air Compressor 1 Set (requisite)
1.0 m 3 / 1.0MPa
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
