Color:
Blue
Condition:
New
Inlet Diameter:
2.6-3.5
Outlet Diameter:
1.0-2.6
Drawing Dies No.:
9
Transmission Type:
by Gear
Tension Control:
by Air Pressure
Brake:
Disc Brake
Usage:
Wire
Product Description

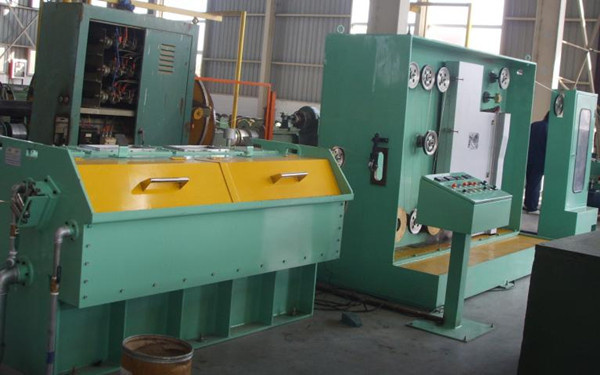

BAOC-9DT high speed large and intermediate drawing machine with annealer
Application
Wire drawing machine with annealer, inlet diameter: 2.6-3.5 outlet diameter: 1.0-2.6
item
specification
data
1
inlet size
2.6-3.5
2
wire finished
1.0-2.6
3
drawing speed
800mpm/max
4
drawing dies No.
9
5
slip ratio of m/c
19.6%+12.5%
6
main motor
45kw
7
spool motor
11kw
8
oval diameter of dehydrate
25mm
9
Max annealing current
DC2500A
Wuxi Baochuan Machinery Manufacture Co., Ltd is an enterprise specialized in reasearch and development, production and maketing of wire and cables equipments as a whole, located in China Cables city-Yixing city, famous and development economic Yangtze Rives Delta. We are all the time to make efforts to improve the machinery automation and developed a series ofg high efficiency, energy saving and humanized electric machine, by depending on the advantages of Yangtze River Delta"s, developed economic and location
Our main products, including: Wire drawing machines series: 13 Die, 9 dies high speed and low speed rod breakdown machine and online annealing machine(RBD), 17 Dies high speed intermediate drawing machine and online annealing machine; 20 die, 22 die, 24 die high speed fine wire drawing machine and online annealing machine; 15 die, 24 die super fine wire drawing machine, stainless, tin-coated, sliver-coated and so on special material wire drawing machine and online annealing machine. Annealing and tinning machine: 24 heads, 32H, 40H conduit annealing adn tinning machine.
