North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Type:
Plastic Injection Molding
Product Description

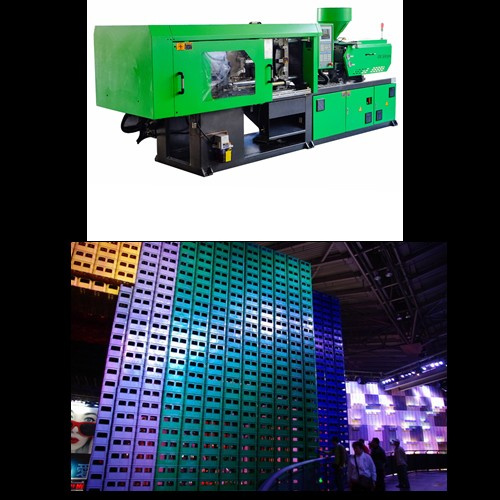

Specification of beer case injection machine 300ton
LONGSHENG Machine Advantage:
1)Guarnateed for two years
2) Offer Injection Machine Operation&trainning Vedio
3) Have SGS certificate
4) T-Slot Platen
5)Machine weight much more than most of factory
6)Machine base use rectangular tube, more strong
7)Four PCS safe door are moveable, maintain the machine more convenience
8)Hydraulic Tank is moveable, more easy to clean the tank when needed
9)Heating band is made by ceramics, not steel sheet. Can work more long time;
10)Prepared more spare parts for customer as below:
2PCS nozzle; 1 set tool box; 3PCS heating band; 1 set mold clamp; 1 container lubricate oil; 1 PC oil filter; 2 PCS switch; 1 set spanner; Seal circle: 3PCS
11) Injection Machine computer with USB connect Point, you can move all mould settings parameter on your desktop computer
INJECTION UNIT
Unit
LSF-398
A
B
C
Screw Diameter
Mm
70
75
80
Screw L/D Ratio
L/D
21.4
20
18.8
Short Size
Cm3
1385
1590
1809
Injection weight
G
1260
1447
1646
Injection Rate
g/s
310
356
405
Plasticizing capacity
g/s
60
65
70
Injection Pressure
Mpa
195
158
139
Screw Speed
Rpm
0-165
CLAMPING UNIT
Clamp Force
KN
3980
Space Between Tie Bars
mm
720*720
Toggle Stroke
mm
700
Max. Mold Height
mm
760
Min. Mold Height
mm
280
Ejector Stroke
mm
200
Ejector Tonnage
KN
110
Ejector Number
P
13
OTHERS
Max. pump Pressure
Mpa
16
Pump motor powder
Kw
37
Heater Power
Kw
24.8
Machine Dimension(L*W*H)
M
7.3*2.0*2.2
Oil Tank Capacity
L
850
Machine Weight
T
16
