North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After-Sales Service Provided:
Engineers Available to Service
Temperature Controller:
Omron
PLC Control:
Optional
Power:
80 Kw
Inverter:
ABB
Extruder Type:
Conic Twin Screw Extruder
Product Type:
PVC Board
Board Layers:
Single Plate
Certification:
ISO9001:2008
Automation:
Automatic
Computerized:
Computerized
Product Description

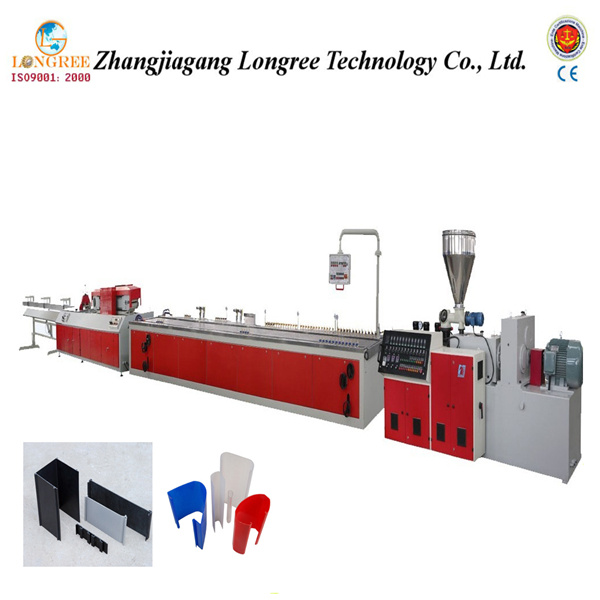

Application, whole line have following machinery:
1: SJSZ65/132 conic twin screw extruder
2: Vacuum calibration tank
3: Haul-off
4: Cutting machine
5: Stacker
6: Mould
7: Water chiller (for option)
8: Powder feeding machine (for option)
9: Printer (for option)
10: High speed mixer (for option)
Model
PVC63
PVC160
PVC315
PVC400
PVC500
PVC630
Produced Pipe Specification(mm)
16-63
75-160
110350
110-400
160-500
200-630
Calibration length(mm)
6000
6000
6000
6000
6000
6000
Degree of vacuum(Mpa)
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
Max hauling force(N)
10000
15000
20000
25000
30000
50000
Max Hauling speed(m/min)
10
6
4
3
2
1.4
Effective hauling length(mm)
1000
1500
1500
1500
1800
1600
Compressed air consumption(m3/h)
0.4
0.6
1.0
1.2
1.5
2.0
Refilled water volume(m3/h)
5
6
7
8
9
12
Line length(m)
20
22
30
30
36
42
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
